Pentair Pool Products QuickTouch II Installation And User Manual

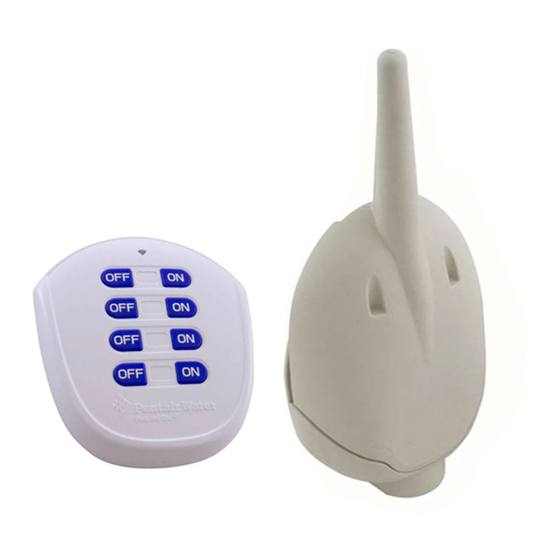

Wireless remote for easytouch, intellitouch and suntouch control systems

Hide thumbs Also See for QuickTouch II:

User manual (23 pages)

Table Of Contents

Summary of Contents for Pentair Pool Products QuickTouch II

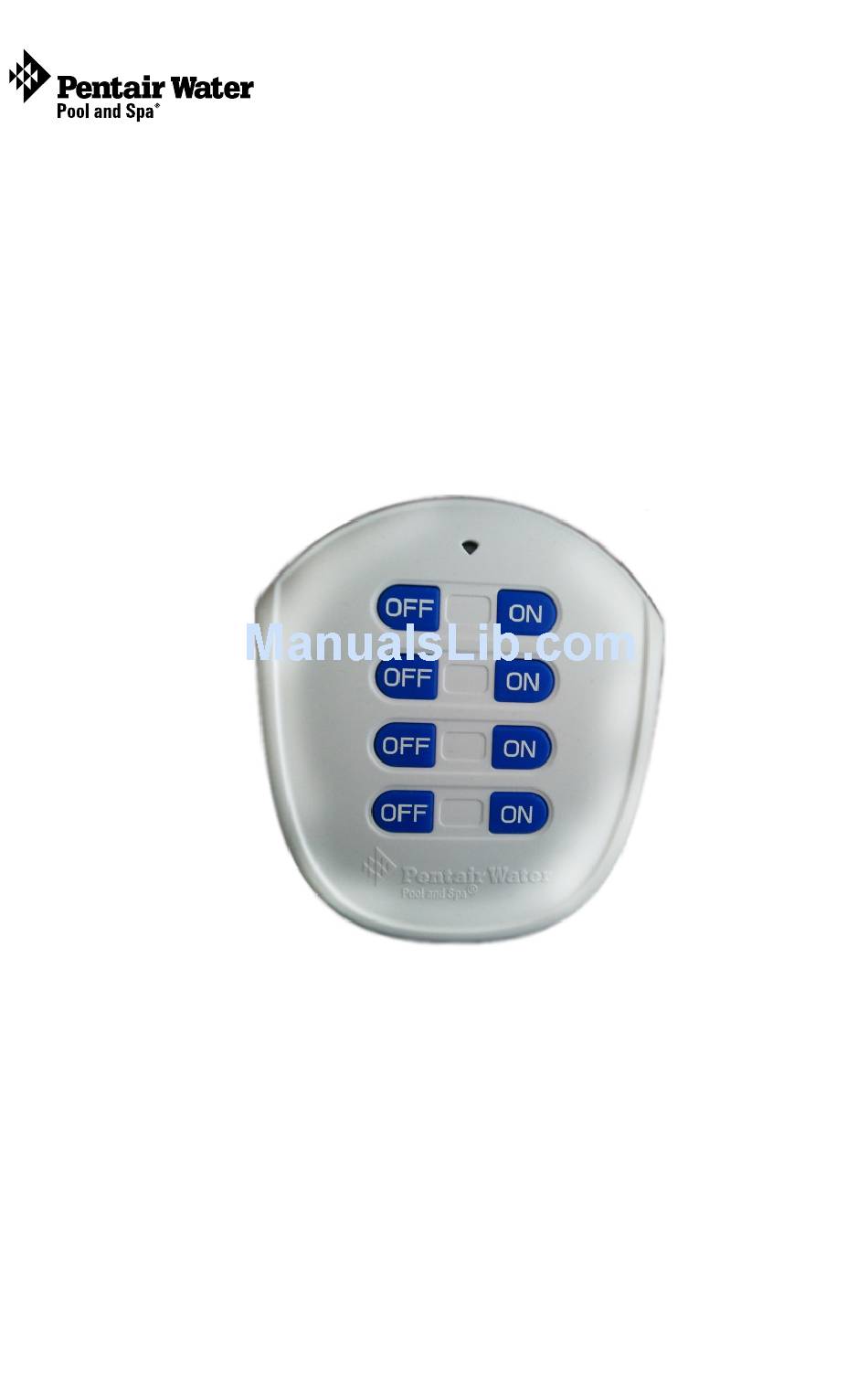

Page 1 ® QuickTouch Wireless Remote ® ® (For EasyTouch , IntelliTouch ® and SunTouch Control Systems) Installation and User’s Guide IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS QuickTouch II Wireless Remote Installation and User’s Guide ®...
Page 2: Table Of Contents
® and Spa is a registered trademark of Pentair Water Pool and Spa, Inc. and/or its affiliated companies in the United States and/or other countries. Unless noted, names and brands of others that may be used in this document are not used to indicate an affiliation or endorsement between the proprietors of these names and brands and Pentair Water Pool and Spa, Inc.
Page 3: Important Warning And Safety Instructions
Always disconnect the AC power to the control system load center and power center at the circuit breaker before installing or servicing the QuickTouch II wireless remote. Failure to do so could result in death or serious injury to serviceman, pool users or others due to electrical shock.
Page 4 IMPORTANT - To avoid damage to the remote, never submerge in water. The QuickTouch II wireless remote is water resistant only and can be exposed to temporary splashing or wet hands. However, the remote is not intended to be submersed. Remove unit immediately if it is dropped in water or exposed to rain.
Page 5: Quicktouch Ii Wireless Remote Overview
IntelliTouch and SunTouch control systems supports one QuickTouch II wireless remote per system. What to do if the remote is submerged in water: The QuickTouch II wireless remote may be used with wet hands. The QuickTouch II wireless remote is water resistant only and can be exposed to temporary splashing or wet hands.
Page 6: Quicktouch Ii Wireless Remote Buttons/Led
QuickTouch II Wireless Remote Buttons/LED The QuickTouch II wireless hand-held remote buttons can be setup to control up to four circuit functions. To activate a circuit function, press and hold the circuit "ON" button for at least a full second (LED indicator will flicker). To switch a circuit “OFF”, press and hold the “OFF”...
Page 7: Setup Quicktouch Ii Wireless Remote Receive
Open receiver case. Press the White Receiver button (shown below). An LED on the QuickTouch II receiver will flash three (3) times (once the Receiver button is pressed, you have 60 seconds to connect the QuickTouch II remote to the receiver).
Page 8: Connecting The Quicktouch Ii Receiver To The Load Center
Refer to NEC 680-21 (b) or CEC 687-060, 062, and 066 for further details. The QuickTouch II receiver is connected to the EasyTouch, IntelliTouch and SunTouch system via a four-conductor communication cable. For receiver antenna location, see page 13.
Page 9 Insert the four conductor (22 AWG) cable into the plastic grommet on the bottom of the enclosure and route the wire up through the low voltage raceway to the main circuit board. Strip back the conductors ¼-inch. EasyTouch System: Insert the conductors into the COM PORT (J20) screw terminals located on the top of the EasyTouch circuit board (see diagram below).
Page 10: Wiring The Quicktouch Ii Receiver To Suntouch Power Center
WIRING THE QUICKTOUCH II RECEIVER TO SUNTOUCH POWER CENTER The QuickTouch II receiver is connected to the SunTouch system via an RS-485 four conductor communication cable. To connect the receiver cable to the SunTouch power center: Switch OFF the power to the load center at the main circuit breaker before removing the High Voltage Cover Panel.
Page 11: Quicktouch Ii Wireless Remote Receiver Antenna Location
QuickTouch II Wireless Remote Receiver Antenna Location The optimum wireless receive range for the QuickTouch II receiver may be affected by physical obstructions, (especially those containing metal), weather conditions, and geographical features. The QuickTouch II wireless remote has an operating range of up to 250 ft.
Page 12: Mounting The Quicktouch Ii Receiver Module
Mounting the QuickTouch II Receiver Module The QuickTouch II wireless remote has an operating range of up to 250 ft. (line-of-sight) from the receiver. To install the receiver: Choose an installation location for the receiver near the load center. Remove the two lower retaining screws from the receiver and slide the receiver case up to remove it from the back plate.
Page 13 REPLACING THE INTELLIBRITE 5G POOL LED LIGHT FIXTURE (AFTER ELECTRICAL REQUIREMENTS ARE MET) Case Antenna Receiver circuit board Upper mounting point Upper mounting point (screw) (screw) Back plate Left-side receiver circuit board support Lower mounting Lower mounting point (screw) point (screw) Lower exit hole (left side) Retaining screws Receiver Module...
Page 14: Troubleshooting
Troubleshooting Symptom Possible Cause Solution POWER LED does not light. Control Center does not have power. Ensure power is being supplied and that the Control Center operates correctly without the Receiver installed. Defective cable or connection to the Verify the function of the board using Control Center.
Page 15: Quicktouch Ii Remote Battery Replacement
QuickTouch II Remote Battery Replacement The QuickTouch II wireless remote has two 3V lithium CR2032 batteries located on the circuit board. With normal use the remote batteries should last for several years. In the event the battery must be replaced, discard in accordance with local and/or state ordinances.
Page 16 *521362* P/N 521362 Rev A QuickTouch II Wireless Remote Installation and User’s Guide ®...
