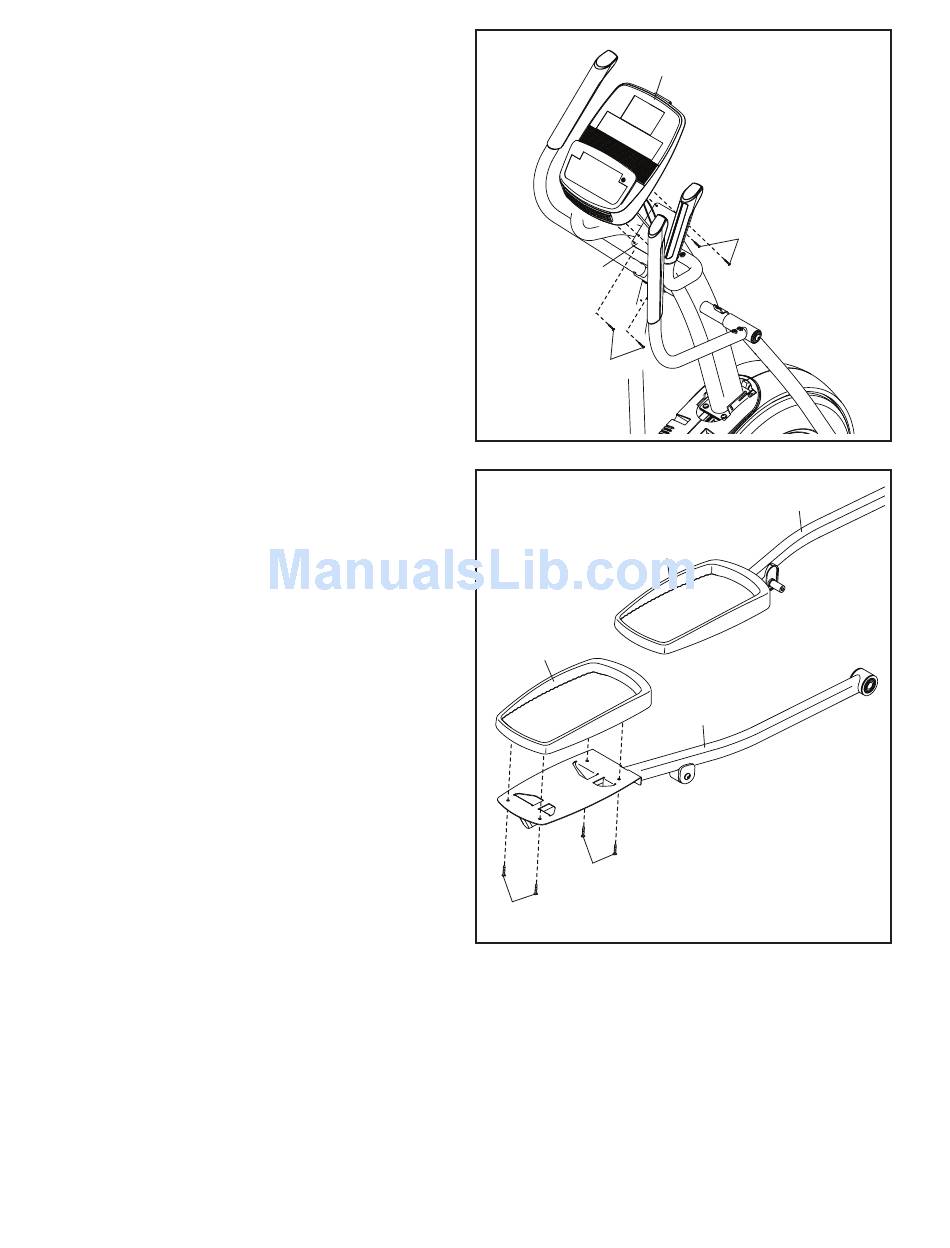

9. Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
16mm Screws (101).
10. Identify the Right Pedal Arm (58) and orient it as
shown.
Attach a Pedal (49) to the Right Pedal Arm (58)
with four M6 x 12mm Screws (103).
Repeat this step for the Left Pedal Arm (44)
and the other Pedal (49).
9
4
101
10
49
103
103
10
Meijer.com
7
Avoid pinching
the wires
101
44
49
58
