EnGenius ECB3500 Quick Start Manual

11b/g Wireless Long Range Multi-function 7+1 AP
ECB3500 is a powerful, enhanced, enterprise level product that supports 7 multi-functions to operate for
every kind of working environment.
This is a Wireless high transmit output power and high data rate indoor
device which plays different roles of Access Point/ Client Bridge /
Repeater / WDS AP / WDS Bridge / Client Router / AP Router. It
operates seamlessly in the 2.4 GHz frequency spectrum supporting the
802.11b (2.4GHz, 11Mbps) and super high speed of 802.11g (2.4GHz,
108Mbps) wireless standards.
settings, bandwidth selection, RSSI indicator and antenna diversity
which enable the best transmitting and receiving signal for traffic
communication.
The attractive design, high performance, and array of features make ECB3500 a suitable wireless
solution for your residence or office.
This Guide will assist you in setting up the device as quickly as possible and with the least effort.

Hardware Installation

1. Place the unit in an appropriate place after
conducting a site survey.
2. Plug one end of the Ethernet cable into the
RJ-45 port on the rear panel of the device and
another end into your PC/Notebook.
3. Insert the DC-inlet of the power adapter into
the port labeled "DC-IN" and the other end
into the power socket on the wall.

IP Address Configuration

The default IP address of the device is
192.168.1.1 (Access Point mode). In order to log
into this device, you must first configure the
TCP/IP settings of your PC/Notebook.
4. In the control panel, double click Network
Connections and then double click on the
connection of your Network Interface Card
(NIC). You will then see the following screen.
5. Select Internet Protocol (TCP/IP) and then
click on the Properties button. This will allow
you to configure the TCP/IP settings of your
PC/Notebook.
6. Select Use the following IP Address radio
button and then enter the IP address
(192.168.1.21)
(255.255.255.0). Ensure that the IP address
and subnet mask are on the same subnet as
the device.
7. Click on the OK button to close this window,
and once again to close LAN properties
window.
Quick Start Guide v.1.0
Refer to User's Manual for complete instructions
Quick Start Guide
It supports high output power level
and subnet mask

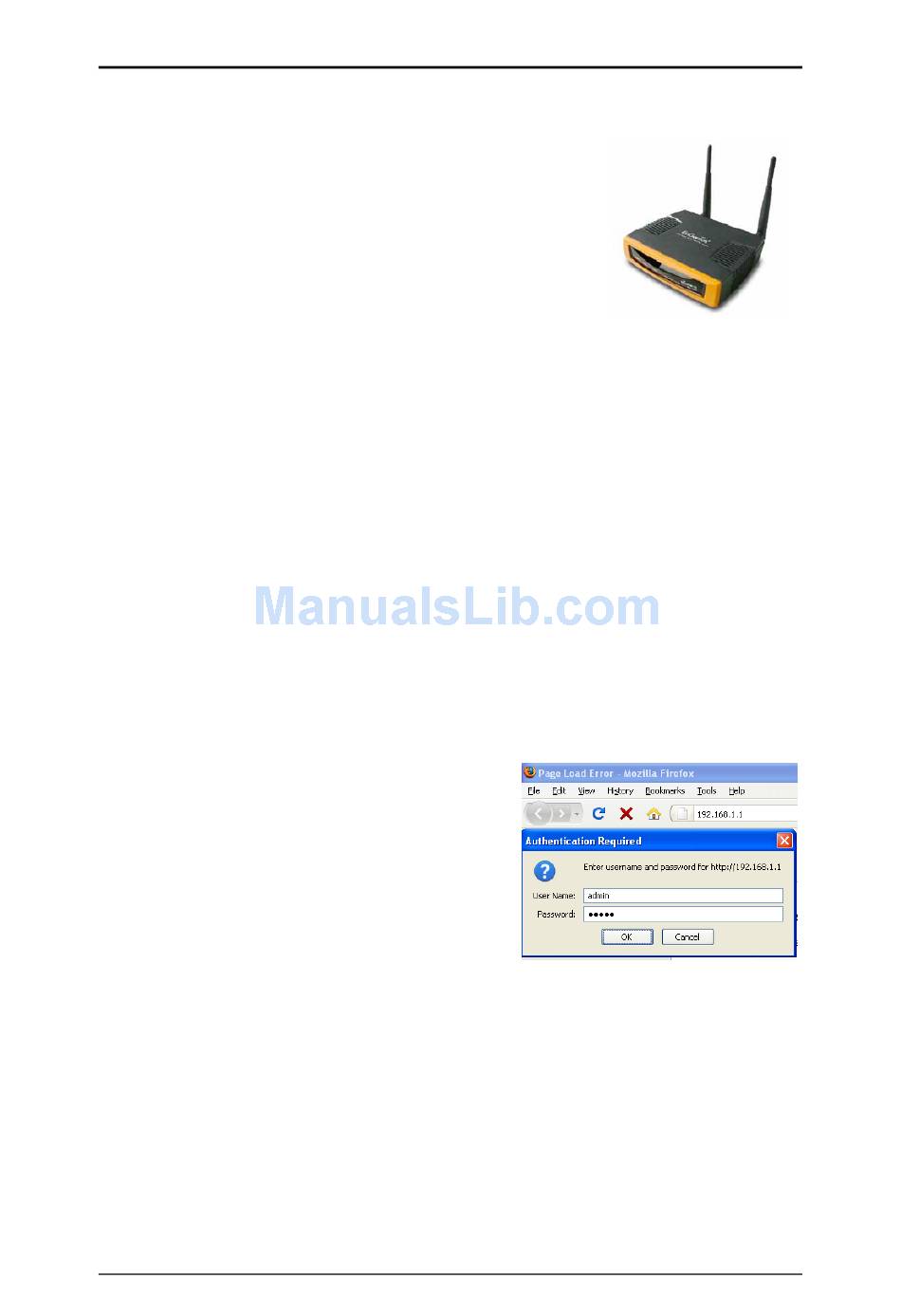

Logging In
1. To configure
web-browser, enter the IP address of the
Bridge (default:
address bar of the web-browser and press
Enter.
2. After connecting to the IP address, the
web-browser will display the login page.
Specify admin as the default User Name and
Password, and then click on the Login
button.
Administration
1. Click on the Administration link under the
Management menu. This option allows you
to create a new password for the device. For
security it is highly recommended for security
reasons.
2. Name: Specify a user name into the first field.
3. Password: Specify a password into this field
and then re-type the password into the
Confirm Password field.
4. Click on the Apply button to save the
changes.
the device through the
192.168.1.1) into the
1
