EnGenius ECB300 Manual

11n long range multi-function client bridge / access point
Hide thumbs Also See for ECB300:
Table of Contents

Advertisement

Quick Links

See also: User Manual
1

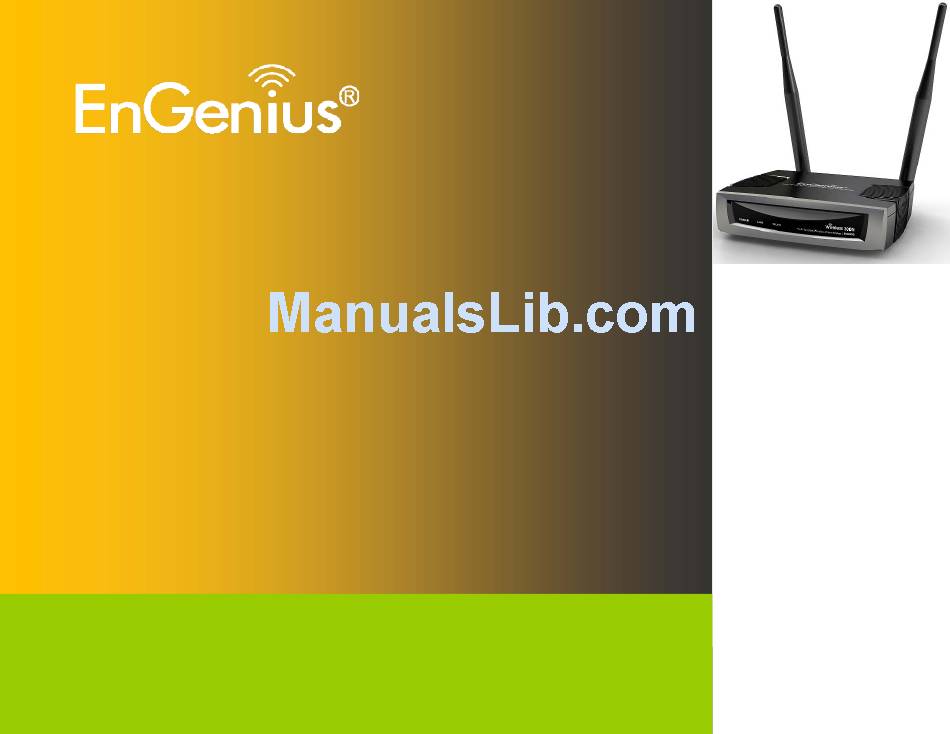

11N Long Range Multi-Function Client Bridge / Access Point
ECB300
11 N Long Range Multi-Function Client Bridge / Access Point
V1.0

Advertisement

Table of Contents
loading

Related Manuals for EnGenius ECB300

Summary of Contents for EnGenius ECB300

  • Page 1 11N Long Range Multi-Function Client Bridge / Access Point ECB300 11 N Long Range Multi-Function Client Bridge / Access Point V1.0...

  • Page 2: Table Of Contents

    Table of Contents Introduction ..................................6 Features and Benefits ......................................6 Package Contents ........................................7 System Requirements......................................8 Applications..........................................8 Before you Begin ................................10 Considerations for Wireless Installation ..............................10 Computer Settings (Windows XP/Windows Vista/Windows 7)...................... 11 Apple Mac X OS......................................... 14 Hardware Installation ...................................... 15 Configuring Your Client Bridge .............................
  • Page 3 DHCP............................................32 Schedule ..........................................34 Event Log..........................................36 Monitor ..........................................37 Wireless .................................... 38 Status ............................................. 38 Basic............................................40 Site Survey ........................................... 44 Advanced..........................................48 Security..........................................52 Filter............................................58 WPS (Wi-Fi Protected Setup)..................................60 Client List ..........................................62 VLAN ............................................63 6.10 AP Profile ..........................................
  • Page 4 DMZ............................................77 DoS............................................78 MAC Filter..........................................79 IP Filter........................................... 80 URL Filter ..........................................82 Advanced..................................83 Network Address Translation (NAT)................................83 Port Mapping........................................84 Port Forwarding ......................................... 85 Port Triggering ........................................86 Application Layer Gateway (ALG) ................................87 Universal Plug and Play (UPnP) ................................... 88 Quality of Service (QoS) ....................................
  • Page 5 Appendix A – FCC Interference Statement ........................107 Appendix B – IC Interference Statement ........................... 108 Appendix C – CE Interference Statement........................... 110...

  • Page 6: Revision History

    Revision History Version Date Notes Feb. 15, 2012 First Release...

  • Page 7: Introduction

    The ECB300 is a Wireless Network device that delivers up to 6x faster speeds and 7x extended coverage than 802.11b/g devices. The ECB300 supports use in the home network with superior throughput, performance, and significant wireless range.

  • Page 8: Package Contents

    Enhanced user performance and density. 1.2 Package Contents The ECB300 package contains the following items (all items must be in package to issue a refund):  ECB300 Wireless Long Range Multi-Function Client Bridge / Access Point  12V/1A 100V~240V Power Adapter ...

  • Page 9: System Requirements

    1.3 System Requirements The following are the minimum system requirements in order configure the device.  Computer with an Ethernet interface or Wireless Network.  Windows, Mac OS, or Linux based operating systems.  Web-Browsing Application (example: Internet Explorer, FireFox, Safari, or other similar software) 1.4 Applications Wireless LAN products are easy to install and highly efficient.
  • Page 10 f) Wireless Extensions to Ethernet Networks Extend network coverage where the network cannot reach (i.e.: There is no wired internet connection to reach certain location of the environment). g) Wired LAN Backup Implement wireless LANs to provide backup for mission-critical applications running on wired networks. h) Training/Educational Facilities Training sites at corporations and students at universities use wireless connectivity to ease access to information, information exchanges, and learning.

  • Page 11: Before You Begin

    These could be the number, thickness, and location of walls, ceilings, or other objects that the ECB300’s wireless signals must pass through. Here are some key guidelines to allow the ECB300 to have optimal wireless range.

  • Page 12: Computer Settings (Windows Xp/Windows Vista/Windows 7)

    2.2 Computer Settings (Windows XP/Windows Vista/Windows 7) In order to use the ECB300, you must first configure the TCP/IPv4 connection of your computer system.  Click Start button and select Control Panel. Windows XP Windows Vista/Windows 7...
  • Page 13  In Windows XP, click Network Connections  In Windows 7, click View Network Status and Tasks in the Network and Internet section, then select Change Adapter Settings  Right click on Local Area Connection and select Properties...
  • Page 14  Highlight Internet Protocol Version 4 (TCP/IPv4) and select Properties  Select Use the following IP address and enter IP address and subnet mask then press OK. Note: Ensure that the IP address and subnet mask are on the same subnet as the device.

  • Page 15: Apple Mac X Os

    Apple Mac X OS  Open the System Preferences (can be opened in the Applications folder or selecting it in the Apple Menu)  Select Network in the Internet & Network section  Highlight Ethernet  In Configure IPv4, select Manually ...

  • Page 16: Hardware Installation

    2) Connect one end of the Category 5 Ethernet cable into RJ-45 port of the ECB300 and the other end to the RJ-45 port on the computer that will use the ECB300. Ensure that the cable is securely connected to both the ECB300 and the Computer.
  • Page 17 Front Panel Rear Panel Front Panel LED Lights LED lights for Wireless, Ethernet port and Power. Rear Panel DC IN DC IN for Power. Reset Button One click for reset the device. Press over 10 seconds for reset to factory default. Ethernet Port Ethernet port for RJ-45 cable.

  • Page 18: Configuring Your Client Bridge

    3 Configuring Your Client Bridge This section will show you how to configure the device using the web-based configuration interface. 3.1 Default Settings Please use your Ethernet port or wireless network adapter to connect the Client Bridge. Default Settings IP Address 192.168.1.1 Username / Password admin / admin...

  • Page 19: Web Configuration

    3.2 Web Configuration  Open a web browser (Internet Explorer/Firefox/Safari) and enter the IP Address: http://192.168.1.1 Note: If you have changed the default LAN IP Address of the device, ensure you enter the correct IP Address.  The default username and password are admin. Once you have entered the correct username and password, click the Login button to open the web-base configuration page.
  • Page 20  If successful, you will be logging in and see the ECB300 User Menu...

  • Page 21: Building A Wireless Network

    4 Building a Wireless Network The ECB300 has the ability to operate in various operating modes. The ECB300 is the ideal device in which you can build your WLAN. This chapter describes how to build a WLAN around your ECB300 using the operating modes of the ECB300.

  • Page 22: Access Point Mode

    4.2 Access Point Mode In Access Point Mode, ECB300 behaves likes a central connection for stations or clients that support IEEE 802.11b/g/n networks. The stations and clients must be configured to use the same SSID and security password to associate with the...

  • Page 23: Wds Ap Mode

    4.3 WDS AP Mode The ECB300 also supports WDS AP mode. This operating mode allows wireless connections to the ECB300 using WDS technology. In this mode, configure the MAC addresses in both Access Points to enlarge the wireless area by enabling...

  • Page 24: Wds Bridge Mode

    ECB300 device. Use this mode when two wired LANs located a small distance apart want to communicate with each other. The best solution is to use the ECB300 to wirelessly connect two wired LANs, as shown in the following figure.

  • Page 25: Router Mode

    Internet through the ECB300. This mode requires you to connect the ECB300’s Ethernet port to a modem or router. And the wireless clients must be configured to use the same SSID and security password to associate with the ECB300. The ECB300 supports up to four...

  • Page 26: Repeater Mode

    4.6 Repeater Mode Repeater is used to regenerate or replicate signals that are weakened or distorted by transmission over long distances and through areas with high levels of electromagnetic interference (EMI).

  • Page 27: System

    System 5.1 Operation Mode Each operating mode offers different features. In order to switch the operating mode, select it from the Operation Mode from the System Menu. There are six operation modes: Access Point, Client Bridge, WDS AP, WDS Bridge, Access Point Router and Universal Repeater.
  • Page 28 The ECB300 will display how much time it will take to restart the device in the new operating mode as shown below.

  • Page 29: Status

    5.2 Status This page will display status of the device. System Operation Mode Displays the current mode of operation of the ECB300. System Time Displays the current time of the ECB300. System Up Time The elapsed time of operation of the ECB300.
  • Page 30 WAN Settings (Router mode) Attain IP Protocol Method used to connect to the Internet. This is your WAN connection type. IP Address The WAN IP address of the Router. Subnet Mask The WAN subnet mask of the Router. Default Gateway The default gateway of the Router.
  • Page 31 The connection status: Successful or Fail. Channel The wireless channel in use. ESSID The SSID (Network Name) of the wireless network which ECB300 connected. Security The wireless encryption in use. BSSID The MAC address of this SSID which ECB300 connected.
  • Page 32 The MAC address of this SSID. WLAN Settings (Access Point / WDS AP / Repeater / Router mode) Channel Displays the current Wireless Channel in use by the ECB300. ESSID The SSID (Network Name) of the wireless network (up to 4 SSIDs supported).

  • Page 33: Dhcp

    5.3 DHCP The DHCP option in the System menu displays the client IP address assigned by the DHCP Server. You can also set the IP Addresses of the connected devices manually. Note: Only in Access Point / Router mode.
  • Page 34 The DHCP Client Table shows the LAN clients that have been allocated an IP address from the DHCP Server. DHCP Client Table IP address Displays the IP Address of the client on the LAN. MAC address Displays the MAC Address of the client on the LAN. Expiration Time Displays the time of expiration of the IP Address of the client.

  • Page 35: Schedule

    5.4 Schedule The Schedule option of the System menu allows you to set a schedule when the ECB300’s Wireless is active. The Schedule Table will display:  NO.: The entry number of the schedule.  Description: The name given to the schedule.
  • Page 36 After selecting Add or Edit, the following form will show up. Fill in the form to set the schedule you want. Schedule Schedule Description Assign a name to the schedule. Service The service provided for the schedule. Days Set which days the schedule will be active. Time of day Set what time of the selected days the schedule will be active.

  • Page 37: Event Log

    5.5 Event Log The Event Log of the System menu displays the system events and actions of the ECB300. When powered down or rebooted, the Event Log will be cleared. Event Log Save Save the log to a .txt file.

  • Page 38: Monitor

    5.6 Monitor The Monitor option of the System menu displays 2 histogram graphs. The histograms represent the bandwidth usage of both the daily use of the Ethernet and the daily use of the WLAN. If you click on Detail, a new browser window will open with 4 additional histograms (6 total).

  • Page 39: Wireless

    6 Wireless 6.1 Status The Status of the Wireless menu displays the current status of the ECB300's wireless configuration. Client Bridge mode: Access Point / Router mode:...
  • Page 40 Repeater mode:...

  • Page 41: Basic

    6.2 Basic The Basic option of the Wireless menu displays the basic wireless options of the ECB300. Client Bridge: Basic (Client Bridge mode) Radio Enable or Disable the device’s wireless signal. Band Select the types of wireless clients that the device will accept.
  • Page 42 Access Point / Router mode: Basic (Access Point / Router mode) Radio Enable or Disable the ECB300’s wireless signal. Mode Select between Access Point or Wireless Distribution System (WDS) modes. Band Select the types of wireless clients that the device will accept.
  • Page 43 Check Channel Time When Auto Channel is Enabled, you can specify the period of device will scan the wireless signals around your area. WDS AP / WDS Bridge mode: Wireless Distribution System (WDS) Using a WDS to connect Access Points wirelessly extends a wired infrastructure to locations where cabling is not possible or inefficient to implement.
  • Page 44 Repeater mode: Basic (Repeater mode) Radio Enable or Disable the device’s wireless signal. Band Select the types of wireless clients that the device will accept. eg: 2.4 Ghz (B+G) Only 802.11b and 11g clients will be allowed. ESSID1 Enter the name of your wireless network. You can use up to 32 characters. Site Survey Click on [Site Survey] to search the existing AP.

  • Page 45: Site Survey

    6.3 Site Survey Client Bridge mode: AP list after site survey. Select an AP and click on [Add to AP Profile].
  • Page 46 Enter the correct security setting. Add AP profile successfully, click on [Close] to close the browser. The AP profile is added in AP Profile Table.
  • Page 47 Repeater mode: AP list after site survey. Select an AP and click on [Connect]. Enter the correct security setting.
  • Page 48 Connect AP successfully, click on [Close] to close the browser. You can see the Connection Status in Status WEB page.

  • Page 49: Advanced

    6.4 Advanced The Advanced option of the Wireless menu displays the advanced wireless options of the ECB300. It is recommended that the ECB300’s default settings are used unless the user has experience with advanced networking. Client Bridge mode: Advanced (Client Bridge mode) Fragment Threshold Specifies the maximum size of the packet per fragment.
  • Page 50 Access Point / WDS AP / Repeater mode: Router / Advanced (Access Point / WDS AP / Router / Repeater mode) Fragment Threshold Specifies the maximum size of the packet per fragment. This function can reduce the chance of packet collision. However, when the fragment threshold is set too low, there will be increased overhead resulting in poor performance.
  • Page 51 DTIM Period A Delivery Traffic Indication Message (DTIM) informs all wireless clients that the access point will be transmitting Multi-casted data. N Data Rate You can limit the transfer rates between the device and wireless clients. Each Modulation Coding Scheme (MCS) refers to a specific transfer speed. Channel Bandwidth Set whether each channel uses 20Mhz or 40Mhz transmission frequency.
  • Page 52 Advanced (WDS Bridge mode) Fragment Threshold Specifies the maximum size of the packet per fragment. This function can reduce the chance of packet collision. However, when the fragment threshold is set too low, there will be increased overhead resulting in poor performance.

  • Page 53: Security

    SSIDs. Broadcast SSID If Disabled, the ECB300 will not broadcast the SSID. It will be invisible to the clients. Wi-Fi Multi-Media is a Quality of Service protocol which prioritizes traffic in the order according to voice, video, best effort, and background.
  • Page 54 Encryption The encryption method to be used on the corresponding SSID. You can choose between WEP, WPA Pre-Shared Key, or WPA RADIUS. Disabled - No data encryption is used.  WEP - Data is encrypted using the WEP standard. WEP is the Wired Equivalent Privacy ...
  • Page 55 802.1x Authentication RADIUS Server IP The IP Address of the RADIUS Server. Address RADIUS Server port The port number of the RADIUS Server. RADIUS Server The RADIUS Server password. password...
  • Page 56 WEP Encryption: WEP Encryption Authentication Type Please ensure that your wireless clients use the same authentication type. Key type ASCII: Using characters from the ASCII standard (recommended) HEX: Uses hexadecimal characters. Key Length The amount of bits the WEP key will use. 64 Bit - data is encrypted, using the default key, before being transmitted.
  • Page 57 Pre-shared Key Type Pre-Shared Key format (ASCII or Hexadecimal). Pre-shared Key Wireless clients must use the same key to associate the device to the ECB300. If using passphrase format, the Key must be from 8 to 63 characters in length.
  • Page 58 WPA RADIUS Encryption: WPA RADIUS Encryption WPA type Select the WPA encryption you would like. Please ensure that your wireless clients use the same settings. WPA(TKIP): Uses a Pre-Shared Key with a dynamically generated key for each 128-bit  packet. WPA2(AES): Government standard of WPA2 encryption.

  • Page 59: Filter

    6.6 Filter The Filter option in the Wireless menu allows users to allow clients with specific MAC Addresses to join the SSID. Note: Only in Access Point / WDS AP / Router and Repeater mode. Wireless MAC Filter (Access Point / WDS AP / Router / Repeater mode) Enable Wireless Access Enable Wireless Access Control.
  • Page 60 Click this button to add the entry. Reset Click this button if you have made a mistake and want to reset the MAC address and Description fields. MAC Address Filtering Table Only clients listed in this table will be allowed access to the wireless network. Delete Selected Delete the selected entries.

  • Page 61: Wps (Wi-Fi Protected Setup)

    Wi-Fi Protected Setup (WPS) Check to Enable the WPS feature. Wi-Fi Protected Setup Information WPS Current Status Shows whether the WPS function is Configured or Un-configured. Configured means that WPS has been used to authorize connection between the ECB300 and the wireless clients.
  • Page 62 SSID The SSID (network name) used when connecting using WPS. Authentication Mode Shows the encryption method used by the WPS process. This is set as the mode selected in the Security option in the Wireless menu. Passphrase Key This is the passphrase key that is randomly generated during the WPS process. It is required if wireless clients that do not support WPS attempts to connect to the wireless network.

  • Page 63: Client List

    6.8 Client List The Client List option of the Wireless menu shows all the wireless clients that are currently connected to the ECB300. Note: Only in Access Point / WDS AP / Router and Repeater mode.

  • Page 64: Vlan

    6.9 VLAN The VLAN option of the Wireless menu allows you to configure the VLAN (Virtual LAN). Note: Only in Access Point mode. VLAN (Access Point and WDS AP mode) Virtual LAN Choose to Enable or Disable the VLAN feature. SSID# Tag Specify the VLAN tag for each SSID.

  • Page 65: Ap Profile

    6.10 AP Profile This page allows you to configure the profile of the Client Bridge including Security Setting exactly the same as the Access Point. You can save three AP profiles at most. Note: Only in Client Bridge mode. AP Profile Table (Client Bridge mode) Add / Edit Select a profile to add or edit.
  • Page 66 AP Profile Settings Network Name (SSID) Enter the SSID (Network Name) of the wireless network which ERB9260 want to connect. Encryption The encryption method to be applied. You can choose from Disable, WEP, WPA pre-shared key and RADIUS. Please select the correct security type.

  • Page 67: Network

    7 Network 7.1 Status The Status option of the Network menu shows the current status of the ECB300’s LAN and WAN (Router mode) connection.

  • Page 68: Lan

    7.2 LAN The LAN option of the Network menu allows you to modify the device's LAN settings. The LAN setting in Router mode: There is additional setting Default Gateway in Access Point / Client Bridge / WDS AP / WDS Bridge and Repeater mode.
  • Page 69 Bridge Type Select the Bridge type of the LAN. Static IP: Manually specify an IP address and subnet mask for the ECB300 to use. Dynamic IP: The IP address is received automatically from the external DHCP server. Note: The option: Dynamic IP is only in Access Point and WDS AP mode.
  • Page 70 The DHCP Server feature is only available in Access Point and Router mode. DHCP Server (Access Point / Router mode) DHCP Server Enable or disable DHCP feature. The DHCP Server automatically allocates IP addresses to your LAN device. Disabled as default. Lease Time The duration of the DHCP server allocates each IP address to a LAN device.

  • Page 71: Spanning Tree

    7.3 Spanning Tree The Spanning Tree option of the Network menu allows you to set the ECB300 to use the Spanning Tree Protocol. Enabling Spanning Tree Protocol will prevent network loops in your LAN network. Note: Only in Access Point / Client Bridge / WDS AP / WDS Bridge and Repeater mode.

  • Page 72: Wan (Router Mode)

    WAN (Router mode) The WAN section allows you to manually set the WAN type connection and its related settings. Note: Only in Router mode. 7.4.1 Static IP Address If your ISP Provider has assigned you a fixed IP address, enter the assigned IP address, Subnet mask, Default Gateway IP address, and Primary DNS and Secondary DNS (if available) of your ISP provider.

  • Page 73: Dynamic Ip Address

    7.4.2 Dynamic IP Address The IP Address is allocated automatically. However some ISP’s will also recognize the MAC address and will reject connections if the MAC address does not match. If your ISP has recorded the MAC address of your computer’s Ethernet LAN card, please connect only the computer with the authorized MAC address, and click the Clone MAC button.

  • Page 74: Ppp Over Ethernet (Pppoe)

    7.4.3 PPP over Ethernet (PPPoE) This protocol is used by most DSL services worldwide. Select this option if you have a DSL connection. Enter the username and password provided by your ISP. PPP over Ethernet (PPPoE) Login Username assigned to you by the ISP Password Password for this username.

  • Page 75: Point-To-Point Tunneling Protocol (Pptp)

    7.4.4 Point-to-Point Tunneling Protocol (PPTP) PPTP is used by very few ISPs.
  • Page 76 Point-to-Point Tunneling Protocol (PPTP) WAN Interface Type Select whether the ISP is set to Static IP or will allocate Dynamic IP address. Hostname This is optional. Only required if specified by ISP MAC address The MAC Address that is used to connect to the ISP. Login Username assigned to you by the ISP Password...

  • Page 77: Firewall

    8 Firewall The Firewall section allows you to set the access control and Firewall settings. Note: Only in Router mode. Enable This page allows you to Enable / Disable the Firewall features. If enabled Firewall service, the Denial of Service (DoS) and SPI (Stateful Packet Inspection) features will also be enabled.

  • Page 78: Dmz

    If enabled this feature, allows the DMZ computer on your LAN to be exposed to all users on the Internet.  This allows almost any application to be used on the server.  The “DMZ PC” will receive all Unknown connections and data. ...

  • Page 79: Dos

    Denial of Service (Denial of Service) is a type of Internet attack that sends a high amount of data to you with the intent to overload your Internet connection. Enable the DoS firewall feature to automatically detect and block these DoS attacks.

  • Page 80: Mac Filter

    MAC Filter You can choose whether to Deny or only Allow those computers listed in the MAC Filtering table to access the Internet. MAC Filter Enable MAC filtering Tick this box to Enable the MAC filtering feature. Deny all clients with MAC addresses When selected, the computers listed in the MAC Filtering table will be Denied listed below to access the network access to the Internet.

  • Page 81: Ip Filter

    IP Filter You can choose whether to Deny or only Allow, computer with those IP Addresses from accessing certain Ports. This can be used to control which Internet applications the computers can access. You may need to have certain knowledge of what Internet ports the applications use.
  • Page 82 IP Filter Enable IP filtering Tick this box to Enable the IP filtering feature. Deny all clients with IP addresses When selected, the computers with IP addresses specified will be Denied access to listed below to access the network the indicated Internet ports. Allow all clients with IP addresses When selected, the computers with IP addresses specified will be Allowed access listed below to access the network...

  • Page 83: Url Filter

    URL Filter You can deny access to certain websites by blocking keywords in the URL web address. For example, “gamer” has been added to the URL Blocking Table. Any web address that includes “gamer” will be blocked.

  • Page 84: Advanced

    9 Advanced The Advanced section allows you to configure the Advanced settings of the router. Note: Only in Access Point Client Router mode. Network Address Translation (NAT) This page allows you to Enable / Disable the Network Address Translation (NAT) feature. The NAT is required to share one Internet account with multiple LAN users.

  • Page 85: Port Mapping

    Port Mapping Port Mapping allows you to redirect a particular range of ports to a computer on your LAN network. This helps you host servers behind the NAT and Firewall. In the example below, there is a FTP Server that requires ports 21 to 22.

  • Page 86: Port Forwarding

    Port Forwarding Port Forwarding allows you to redirect a particular public port to a computer on your LAN network. This helps you host servers behind the NAT and Firewall. In the example below, there is a Web Server running on port 80 on the LAN.

  • Page 87: Port Triggering

    Port Triggering If you use Internet applications which use non-standard connections or port numbers, you may find that they do not function correctly because they are blocked by the Wireless Router's firewall. Port Triggering will be required for these applications to work. Port Triggering Enable Port Triggering Check this box to enable the Port Trigger feature.

  • Page 88: Application Layer Gateway (Alg)

    Application Layer Gateway (ALG) Certain applications may require the use of the ALG feature to function correctly. If you use any of the applications listed on the table below, select the feature and click Apply.

  • Page 89: Universal Plug And Play (Upnp)

    Universal Plug and Play (UPnP) The UPnP function allows automatic discovery and configuration of UPnP enabled devices on your network. It also provides automatic port forwarding for supported applications to seamlessly bypass the Firewall.

  • Page 90: Quality Of Service (Qos)

    Quality of Service (QoS) QoS allows you to control the priority that the data is transmitted over the Internet, or to reserve a specific amount of Internet bandwidth. This is to ensure that applications get enough Internet bandwidth for a good user experience. Priority Queue Sets the QoS method to Priority Queue.
  • Page 91 Priority Queue Method Bandwidth priority is set to either High or Low. The data transmissions in the High Priority queues will be processed first. Unlimited Priority Queue IP Address The computer with this IP Address will not be bound by the QoS rules. High / Low Priority Queue Protocol The type of network protocol.
  • Page 92 Bandwidth Allocation Method You can set the maximum amount of bandwidth a certain protocol will use at one time. Or you can set a minimum amount of bandwidth that will be guaranteed to a certain protocol. Bandwidth Allocation Type Set whether the QoS rules apply to transmission that are Download, Upload or Both directions. IP range Enter the IP address range of the computers that you would like the QoS rules to apply to.

  • Page 93: Static Routing

    Static Routing If your wireless router is connected to a network with different subnets, this feature will allow the different subnets to communicate with each other. Note: The NAT function needs to be disabled for the Routing feature to be enabled. Static Routing Enable Static Routing Check this box to enable the Static Router feature.

  • Page 94: Dynamic Routing

    Dynamic Routing Dynamic routing allows routing tables in routers to change as the possible routes change. This device use RIP to support dynamic routing.

  • Page 95: Routing Table

    9.10 Routing Table This page allows you to observe the current routing table.

  • Page 96: Management

    10 Management 10.1 Admin The Admin section of the Management menu allows you to change the ECB300 default password and to configure remote management (Router mode). By default, the password is: admin. The password can contain 0 to 12 alphanumeric characters and is case sensitive.
  • Page 97 There is additional setting Remote Management in Router mode. Remote Management (Router mode) Host Address You can only perform remote management from the specified IP address. Leave blank to allow any host to perform remote management. Port Enter the port number you want to accept remote management connections. Enable Tick to Enable the remote management feature.

  • Page 98: Snmp

    10.2 SNMP The SNMP section of the Management menu allows you to assign the contact details, location, community name, and trap settings for the Simple Network Management Protocol (SNMP). The SNMP is a networking management protocol used to monitor network-attached devices. SNMP allows messages (called protocol data units) to be sent to various parts of a network.
  • Page 99 SNMP SNMP Active Enable or disable the SNMP feature. SNMP Version You may select the SNMP version you want to deploy. All: Interoperability between SNMPv1 and SNMPv2c devices. v1: The standard SNMP version. v2c: Improvement in performance and security of SNMPv1. Read Community Specify the password for access the SNMP community for read only access.

  • Page 100: Firmware Upgrade

    To perform the Firmware Upgrade: 1. Download the firmware version that you want to install into the ECB300 and place it in a known location. 2. Click the Browse button and navigate to the location of the firmware upgrade file.
  • Page 101 Emergency Upgrade If your firmware upgrade failed, you may enter the Emergency Upgrade WEB page. 1. Enter IP address: 192.168.99.9 and enter Emergency Upgrade WEB page. Note: Refer to 2.2 to configure PC/Notebook IP address to 192.168.99.8. 2. Click the Browse button and navigate to the location of the upgrade file and then click Upload. 3.
  • Page 102 4. You can access the device again.

  • Page 103: Configure

    10.4 Configure The Configure option of the Management menu allows you to save the current device configurations. When you save the configurations, you also can re-load the saved configurations into the device through the Restore Settings. If extreme problems occur press the Reset button of the Restore to Factory Defaults option to set all configurations to its original default settings.

  • Page 104: Reset

    10.5 Reset In some circumstances it may be required to force the device to reboot. Click on Apply to reboot of the Reset option of the Management menu.

  • Page 105: Tools

    11 Tools 11.1 Time Setting The Time Setting section of the Tools menu allows you to set the ECB300’s time. Time Time Setup Select the method you want to set the time. Time Zone Select the time zone for your current location.

  • Page 106: Diagnosis

    11.2 Diagnosis The Diagnosis section of the Tools menu allows you to test your network. Type in the IP Address of the device for diagnosis. Diagnosis Address to Ping Enter the IP address you like to see if a successful connection can be made. Ping Frequency Select the frequency for Ping test.

  • Page 107: Logout

    12 Logout Click on Logout button to logout of the ECB300.

  • Page 108: Appendix A – Fcc Interference Statement

    Appendix A – FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 109: Appendix B – Ic Interference Statement

    (e.i.r.p.) is not more than that necessary for successful communication. This radio transmitter (IC: 10103A-ECB300 / Model: ECB300) has been approved by Industry Canada to operate with the antenna type, maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this user’s manual, having a gain...
  • Page 110 àl'établissement d'une communication satisfaisante. Le présent émetteur radio (IC: 10103A-ECB300 / Modèle: ECB300) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans...

  • Page 111: Appendix C – Ce Interference Statement

    Appendix C – CE Interference Statement Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN60950-1:2006 A11:2009+A1:2010 ...
  • Page 112 This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. 0560 Česky [Czech] [Jméno výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě...
  • Page 113 Latviski [Latvian] Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
