QuickSpecs
Overview

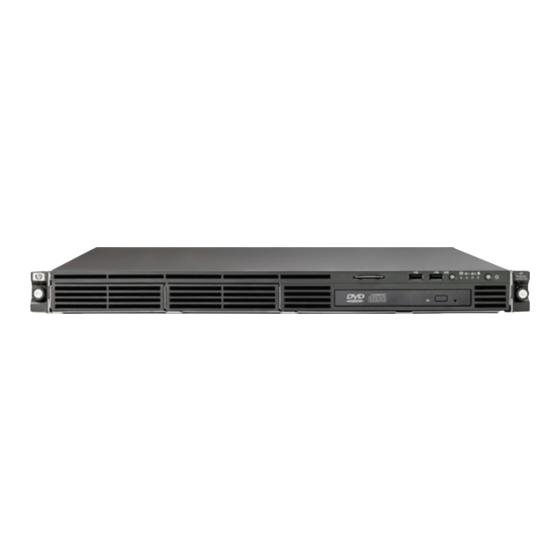

Front View:
Front View:
Front View:
Front View:
1.
Cover
2.
Four PC2-6400 UB ECC DDR2 Memory Slots
3.
Processor Socket (Intel® Xeon®, Core™2, Pentium® or
Celeron®)
4.
Power Supply (350 Watt)
5.
3 Non Hot Plug Dual Rotor Fans
6.
Optional 12.7mm DVD-ROM, or DVD-RW Drive
7.
Two upfront USB connectors
8.
Power Button, UID Button, and Front LED Indicators
9.
Support for up to two Non-Hot Plug SATA or SAS Hard
Drives
10.
Two PCI express Slots (2 PCI-Express x8 connectors
standard, one x8, one x4 Lanes)
What's New
What's New
What's New
What's New
Support for SATA Non-Hot Plug Midline Hard Drives
At a Glance
At a Glance
At a Glance
At a Glance
The HP ProLiant DL120 G5 Server is an entry-level rack-optimized server providing you with all confidence of a HP ProLiant server.
The single processor, 1U server is ideal for single-application IT infrastructure, web and edge-of-network applications. The HP
ProLiant DL120 provides two PCI-Express slots with an option to replace one PCI-Express slot with a PCI-X slot. Optional upgrades,
including HP HBAs and Smart Array Controllers, provide support for SAS hard disk drives. An optional DL120G5 HP Lights Out
100c (LO100c) Remote Management Card provides cost-effective remote management from anywhere, anytime. Plus, you get the
cost-effective solution of a single-processor platform with the performance advantages of dual-core or quad-core.
Processor
Processor
Processor
Processor:
Dual-Core Intel® Xeon® 7400 processor sequence
Dual-Core Intel® Xeon® 5200 processor sequence
Quad-Core Intel® Xeon® 3300 processor sequence
Quad-Core Intel® Xeon® 3200 processor sequence
DA - 13014
North America — Version 19 — June 30, 2010
HP ProLiant DL120 Generation 5 (G5)
HP ProLiant DL120 Generation 5 (G5)
HP ProLiant DL120 Generation 5 (G5)
HP ProLiant DL120 Generation 5 (G5)
Rear View:
Rear View:
Rear View:
Rear View:
1.
Power supply cable socket
2.
Mouse connector
3.
USB connectors (2)
4.
Serial connector
5.
Expansion slot 2, PCI-e x4, low-profile, half-length
6.
Expansion slot 1, PCI-e x8, Full high, Full-length (PCI-X
optional)
7.
UID button/LED
8.
Video connector
9.
DL120 G5 HP Lights Out 100c management NIC port
(optional)
10.
NIC Port
11.
Keyboard connector
Page 1
