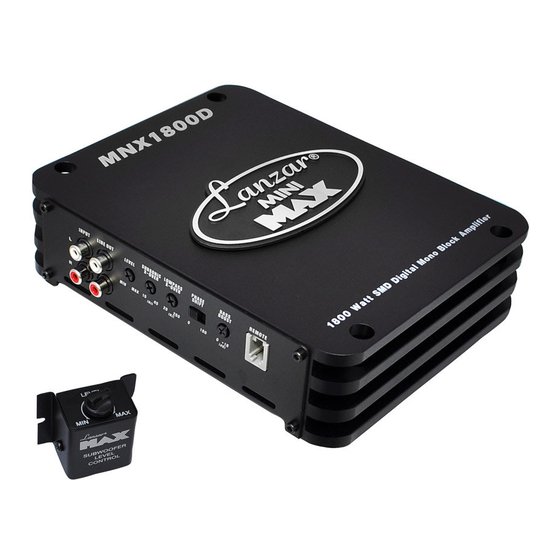

- Page 1 MNX OWNER'S MANUAL SMD Digital Mono Block Amplifier MNX1800D MNX1800D MNX3000D MNX3000D MNX5000D MNX5000D...
- Page 2 OWNER'S MANUAL...
- Page 3 1. Contents 2. Introduction 3. Features 4. Specifications 5. Amplifier installation 6. 7. Features and controls 8. System wiring 9. 10. Troubleshooting OWNER'S MANUAL - 1...
- Page 4 Thank you for purchasing the Lanzar MNX Class-D amplifier. Rest assured you have purchased a quality product designed and engineered to give you many years of un compromised musical service. The MNX Class-D amplifier has been designed using the latest in electronic technology available today.
- Page 5 CLASS-D DESIGN Low - frequency information for subwoofer only. High efficient power POWER SUPPLIES Stiffly regulated PWM power supplies. MOSFET switches maintain rated power over a wide range of battery voltages. LOW PASS FILTER Adjustable from 50Hz to 250Hz with a slope of 24dB per octave. This allows for the adjustment of the upper point of the frequency bandwidth and the respective subwoofer.
- Page 6 MNX 1800D MNX 3000D MNX 5000D PEAK Power, INTO 4 Ohms 700W MONO 1250W MONO 2100W MONO PEAK Power, INTO 2 Ohms 1200W MONO 1950W MONO 3500W MONO PEAK Power, INTO 1 Ohms 1800W MONO 3000W MONO 5000W MONO THD at 1 Watt, 4 Ohm 0.5% 0.5% 0.5%...
- Page 7 1. Find a suitable location in the vehicle to mount the amplifier. 2. Make sure there is sufficient air flow around the intended mounting location. 3. Bolt the amplifier to the mounting surface. 4. Connect the power ground terminal to the nearest point on the chassis of the car. Keep this ground wire less than one meter (39") in length.
- Page 8 MNX 1800D / 3000D / 5000D MODEL FUSES MNX1800D 25A x 2 MNX3000D 30A x 3 MNX5000D 30A x 4 OWNER'S MANUAL - 6...
- Page 9 1. Input RCA Jacks - These inputs are for signal cables from the source. Always use high quality shielded RCA cables. 2. Line Out RCA Jacks - The LINE OUT allows you to build multiple amplifier systems with out having to use splitter cords to distribute the signal. Now it is simple a matter of bringing one set of RCAs into the first amplifier, then using the line out RCA jacks as the feed to the next amplifier.
- Page 10 MNX 1800D / 3000D / 5000D TO REMOTE TO OUTPUT FROM HEAD UNIT GAIN CONTROLLER MODEL FUSES MNX1800D 25A x 2 MNX3000D 30A x 3 MNX5000D 30A x 4 FUSE SPEAKER IMPEDANCE CHASSIS GROUND (BARE METAL) 1~8 Ohm TO CAR STEREO SUBWOOFER AUTO ANTENNA OWNER'S MANUAL - 8...
- Page 11 Before removing your amplifier, refer to the list below and follow the suggested procedures. Always test the speakers and their wires first. Check for good ground connection. Check that remote DC terminal has at least 13.8v DC. Check that there is battery power on the +terminal. Check all fuses.
- Page 12 Check for shorts on speaker leads. Check that the volume control on the head unit is turned down low. Remove speaker leads, and reset the amplifier. If the Protection LED still comes on, then the amplifier is faulty. Check that the minimum speaker impedance for that model is correct. Check for speaker shorts.
- Page 13 OWNER'S MANUAL...
- Page 14 OWNER'S MANUAL...
- Page 15 OWNER'S MANUAL...
- Page 16 Lanzar Audio Inc. 1600 63rd Street, Brooklyn, NY 11204 (718)535-1800 www.lanzar.com...
