Remote Connector
REMOTE Connector -
The Remote connector provides a way to control the VGAxi / MACxi switchers
using contact closure devices such as the following:
•
Extron KP-10 (wired remote keypad, IR-10 (infrared remote), RS-232 2-4-6-8 (Host computer)
•
Third Party Remote Control - Information below may be used to design a third party remote control.

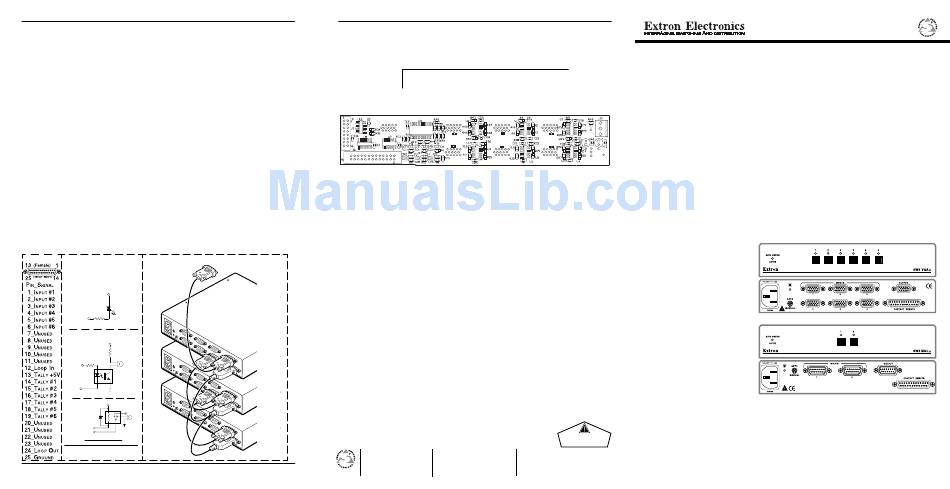

Remote connector pin assignments are shown in the table below (Figure 4-A). To select a different
switcher input number through the remote connector, momentarily connect the pin for the desired input
number (#) to logic ground (pin 25).
NOTE __ The duration of a momentary connection is defined as 250 — 500 milli-seconds.
The Tally pins can be used for remote indication of the switcher's selected input. Tally #1 - #6 (pins
14 -19) will indicate the switcher's selected input # with a logic low (0 volts), the Tally pins are
normally at logic high (5 volts). For example, with switcher input #2 selected, the front panel LED for
that input would be ON and Tally #2 (pin 15) would be 0 volts while the remaining Tally pins would
be 5 volts.
The schematics shown below (Figure 4-B) may be used as a guide to design and build indicator
circuits for the Tally pins. An example of an LED circuit is shown at the top, two versions of
incandescent lamp driver circuits are shown below the LED circuit.
The +5 volt source on remote connector pin 13 is limited to 100mA, if a different voltage or a higher
current is required, an external voltage source will be necessary.
Looping is a configuration technique (see Figure 4-C) that enables the total number of inputs to a
switcher (A) to be increased by connecting its highest input to the output of another switcher (B). A
Loop control signal from switcher B (Loop Out - Remote connector pin 24) to switcher A (Loop In -
Remote connector pin 12) will cause switcher A to select its highest input when an input selection
is made on switcher B. If a third switcher (C) is added, its output would connect to the highest input
on switcher B and its Loop Out signal would connect to switcher B's Loop In. An input selection on
Switcher C would cause switcher B to select its highest input and signal switcher A to select its
highest input. The selected input on switcher C would be available at Switcher A's output. An input
selection on Switcher A would drop Switchers B and C out of the loop until a selection is made on
either B or C.
F
4-A
F
4-B
F
4-C
IGURE
IGURE
IGURE
LED I
C
NDICATOR
IRCUIT
+5V (PIN 13)
LED
TALLY PIN
330 Ohm
I
L
C
NCANDESCENT
AMP
IRCUITS
EXTERNAL POWER
Using an
Opto-isolator
RESISTOR VALUE
& External Power
DEPENDS ON CURRENT
REQUIREMENT OF LAMP
330 Ohm
+5V (PIN 13)
TALLY PIN
+5V (PIN 13)
Using a Relay
N/C
& External
Power
1N916
TALLY PIN
EXTERNAL POWER
R
R
ECOMMENDED
ELAYS
M
G
L
C
ANUFACTURER
ENERAL
OW
URRENT
A
DS2
TQ
ROMAT
ITT/P
R-Z-5C
A5W
ANASONIC
O
MRON
G5Y
G6H
Extron • SW Switchers VGA xi / MAC xi • User's Guide
Page 4
VGA connector pin-9 is normally not used and does not exist in most cases, however, some
equipment/applications may require the signal on input connector pin-9 to be passed to output
connector pin-9. If this is a requirement, it will be necessary to solder one or more jumpers onto the
inside of the rear panel. The jumpers (JMP1 - JMP6) are shown on the Printed Circuit Board layout
below. The switcher model determines which jumper applies to which input as follows:
SW6 VGAxi xi xi xi xi
SW4 VGAxi xi xi xi xi
SW2 VGAxi xi xi xi xi
To access the inside of the rear panel, DISCONNECT POWER and remove four screws from the top of
the switcher. The bottom panel can then be removed. Unplug the two cables connected to the circuit
board enabling it to be removed.
Figure 5-A
Specifications
Video
Frequency Range (H. Sync) _ 15-145 kHz
Frequency Range (V. Sync) _ 30-170 Hz
Connectors
Output
Control System
General
Power Supply
A
Part Numbers
B
VGA/MAC Adapter (Composite Video) _ 26-340-01
VGA/MAC HV Adapter (MAC H/V sync) _ 26-340-02
KP-10 wired keypad remote control _ 60-111-01
C
IR-10 Infrared remote control _ 70-036-01
Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
SM
714.491.1500 FAX 714.491.1517
USA
Specifications
I
1
I
2
I
3
I
4
I
5
I
6
NPUT
NPUT
NPUT
NPUT
NPUT
NPUT
JMP1
JMP2
JMP3
JMP4
JMP5
JMP6
JMP3
JMP4
JMP5
JMP6
JMP5
JMP6
JMP3
JMP5
JMP1
JMP6
JMP4
JMP2
Input Video Signal Level _ 0 to 2 volts p-p
Video Gain _ Unity
RGB Video Bandwidth _ 350 MHz (-3 dB) (VGA xi and M
xi )
AC
Input Impedance _ 75 Ohms
Output Impedance _ 75 Ohms
Termination Impedance _ 75 Ohms
Sync Input Impedance _ 510 Ohms
Input and Output VGA xi __ 15 pin HD D-Sub (Female)
Input and Output M
xi __ 15 pin D-Sub (Female)
AC
Contact Remote _ 25 pin D-Sub
Contact Closure _ Momentary (100 ms min.),
_ w/Tally feedback
Loop Signal _ Momentary low, 1 ms min, 5 ms max
Operation Temperature _ 0°-50° C
Storage Temperature _ -40° to +70° C
Humidity _ 10% to 90% non condensing
MTBF Demonstrated _ 30,000 Hours
Vibration _ NSTA 1A in carton
Approvals _ CE, UL Listed, FCC Class A
Internal _ 100-240 VAC 50/60 Hz, 0.2A max.
Dimensions _ 8.75" W x 9.5" D x 1.75" H
_ 22.2 cm W x 24 cm D x 4.4 cm H
Shipping Weight _ 3 lbs (1.4 kgs) - VGA xi and M
xi
AC
Warranty _ 2 years parts and labor
SW2 VGA xi __ 60-257-01
SW4 VGA xi __ 60-258-01
SW6 VGA xi __ 60-259-01
SW2 MAC xi __ 60-261-01
Refer to the safety instructions
RS-232 2-4-6-8 Controller _ 60-112-01
in the literature that came with
this equipment.
Extron Electronics, Europe
Extron Electronics, Asia
Beeldschermweg 6C
41B Kreta Ayer Road
3821 AH Amersfoort
Singapore 089003
+31.33.453.4040 FAX +31.33.453.4050
+65.226.0015 FAX +65.226.0019
The Netherlands
Singapore
U
SW S
WITCHERS
Written &
Printed in
the USA
89-05
68-375-01
Rev. A
'
G
SER
S
UIDE
– VGAxi / MACxi
SW2 VGAxi xi xi xi xi
SW4 VGAxi xi xi xi xi
SW6 VGAxi xi xi xi xi
SW2 MACx x x x x i i i i i
