OPERATOR'S MANUAL

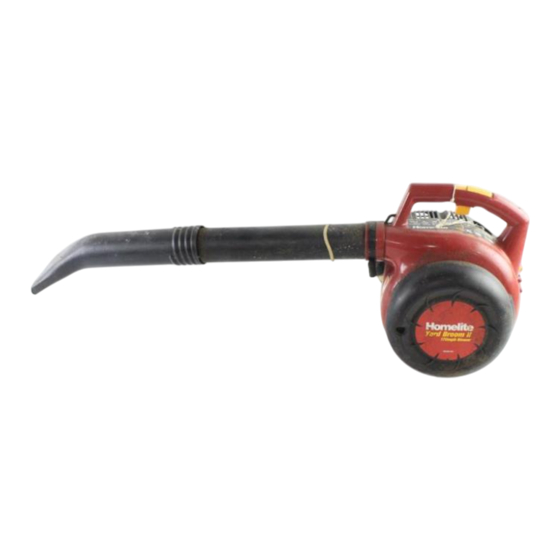

YARD BROOM II
UT08512B
Your blower has been engineered and manufactured to Homelite's high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for buying a Homelite product.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Advertisement
Table of Contents
Related Manuals for Homelite YARD BROOM II UT08512B
Summary of Contents for Homelite YARD BROOM II UT08512B
- Page 1 OPERATOR’S MANUAL YARD BROOM II UT08512B Your blower has been engineered and manufactured to Homelite’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
-
Page 2: Table Of Contents
n Introduction ... 2 n General Safety Rules ... 3 n Specific Safety Rules... 3 n Symbols... 4-5 n Features... 6-7 n Assembly ... 7-8 n Operation... 9-11 n Maintenance ... 12-13 n Accessories ... 13 n Troubleshooting ... 14 n Warranty ... -
Page 3: General Safety Rules
WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Fail- ure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS n Do not allow children or untrained individuals to use this unit. n Never start or run the engine inside a closed area; breath- ing exhaust fumes can kill. -
Page 4: Symbols
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpre- tation of these symbols will allow you to operate the tool better and safer. SYMBOL NAME Safety Alert Read The Operator’s Manual Eye and Hearing Protection Long Hair Blower Tubes... -
Page 5: Save These Instructions
The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL DANGER: WARNING: CAUTION: CAUTION: SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair. -
Page 6: Features
PRODUCT SPECIFICATIONS Weight ... 9.7 lbs. Engine displacement ... 30cc Air Velocity: MPH...170 CFM ...375 ENGINE SWITCH STARTER GRIP PRIMER BULB CHOKE LEVER WIDE SWEEPER NOZZLE FEATURES THROTTLE TRIGGER HANDLE TUBE CLAMP UPPER BLOWER TUBE CRUISE CONTROL (THROTTLE LOCK) Fig. 1... -
Page 7: Assembly
KNOW YOUR BLOWER See Figure 1. Before attempting to use this product, familiarize yourself with all operating features and safety rules. BLOWER TUBE AND NOZZLE The blower tube and nozzle can be assembled and installed on the blower using no tools. CRUISE CONTROL / THROTTLE LOCK The cruise control (throttle lock) feature allows you to oper- ate the blower without continuously holding the throttle... - Page 8 WARNING: Stop the engine and disconnect the spark plug wire before installing parts, making adjustments, cleaning, or when not in use. Failure to do so could result in possible serious personal injury. ASSEMBLING THE BLOWER TUBES See Figure 2. n Screw the nozzle onto the upper blower tube and tighten securely.
-
Page 9: Operation
WARNING: Do not allow familiarity with tools to make you care- less. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING: Always wear safety goggles or safety glasses with side shields when operating this tool. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. - Page 10 STARTING AND STOPPING See Figure 3. Starting the product differs depending on whether the engine is cold or warm. TO START A COLD ENGINE: n Place the blower on a flat, bare surface. n Make sure cruise control is locked in the IDLE position. Do not engage the throttle trigger or cruise control during the start-up process.
- Page 11 n Operate blower at the lowest possible throttle speed to do the job. n Check your equipment before operation, especially the muffler, air intakes, and air filters. n Use rakes and brooms to loosen debris before blowing. n In dusty conditions, slightly dampen surfaces when water is available.
-
Page 12: Maintenance
WARNING: When servicing, use only identical Homelite replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING: Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. -
Page 13: Accessories
The following recommended accessories are currently available at retail stores. Air Filter (Power Care)... AP04107 Spark Plug (Champion) ... RCJ-6Y 2-Cycle Oil (Homelite)... AH99G01 Fuel Cap (Power Care) ... AP04108 WARNING: Current attachments and accessories available for use with this product are listed above. Do not use any attachments or accessories not recommended by the manufacturer of this product. -
Page 14: Troubleshooting
IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM CONTACT YOUR AUTHORIZED SERVICE DEALER. PROBLEM POSSIBLE CAUSE Engine will not start 1. No spark. 2. No fuel. 3. Engine is flooded. Engine does not reach full 1. Incorrect oil/fuel mixture. speed and emits excessive smoke 2. -
Page 15: Warranty
LIMITED WARRANTY STATEMENT Homelite Consumer Products, Inc. warrants to the original retail purchaser that this HOMELITE product is free from defect in material and workmanship and agrees to repair or replace, at Homelite Consumer Products, Inc.’s discretion, any defective product free of charge within these time periods from the date of purchase. - Page 16 Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts, and must be provided free of charge to the owner if the part is still under warranty. Homelite Consumer Products, Inc., is liable for damages to other engine components caused by the failure of a warranted part still under warranty.
- Page 17 5 Hours Every 25 Hours or Yearly CALL US FIRST For any questions about operating or maintaining your product, call the Homelite Your product has been fully tested prior to shipment to ensure your complete satisfaction. Clean Every Replace Every...
-
Page 18: Parts Ordering / Service
CALIFORNIA PROPOSITION 65 SERVICE For parts or service, contact your nearest Homelite authorized service dealer. Be sure to provide all relevant information when you call or visit. For the location of the authorized service dealer nearest you, please call 1-800-242-4672 or visit us online at www.homelite.com.
