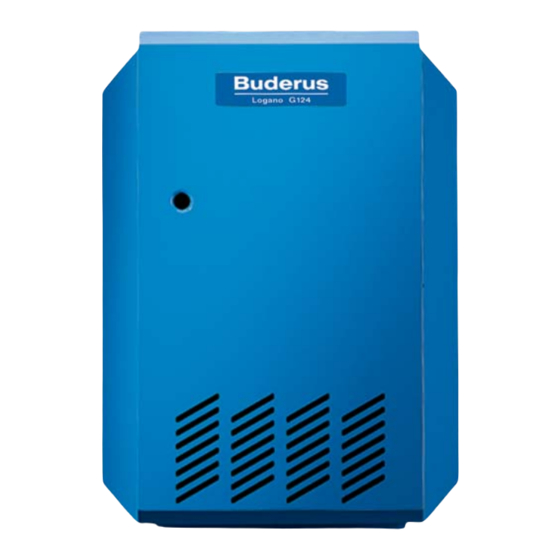

G124X | G234X | G334X
Atmospheric Gas Boilers
Setting the Standard for Efficiency
High Efficiency: Full line of Atmospheric Gas Boilers
Flexible, Corrosion Resistant GL-180M Cast Iron
Limited Lifetime Warranty
Electronic Ignition, 3" Thermal Insulation on all Models
74,000 to 542,000 BTU/Hr Input
Comfortable. Efficient. Intelligent Heating.
Advertisement
Related Manuals for Buderus G124X
Summary of Contents for Buderus G124X
- Page 1 G124X | G234X | G334X Atmospheric Gas Boilers Setting the Standard for Efficiency High Efficiency: Full line of Atmospheric Gas Boilers Flexible, Corrosion Resistant GL-180M Cast Iron Limited Lifetime Warranty Electronic Ignition, 3" Thermal Insulation on all Models 74,000 to 542,000 BTU/Hr Input Comfortable. Efficient. Intelligent Heating.
- Page 2 Established in 1731, Buderus uses state-of-the-art techniques in the design and manufacturing of its boilers. Manufactured with the patented Buderus GL-180M flexible cast iron, the sections are tightly joined together and sealed by profiled, beveled steel push nipples, ensuring a long life.
-
Page 3: Superior Design
Efficiency The G124X, G234X, and G334X Series Boilers are available in natural gas or easily converted to propane and feature AFUE ratings up to 84.8% for high efficiency and top performance. Stainless steel premixed factory tested burners allow for low emissions, and a full 3"... - Page 4 Upgrade your system for added comfort to your home! Panel Radiators Once you have a Buderus boiler you can add a Buderus indirect fired hot water tank, an optional Buderus Logamatic control or both. The Logamatic control maximizes your comfort and fuel savings, and it will also accommodate specialized heating applications such as radiant flooring.
- Page 5 The Quick-Fit system Water Content (gal.) consists of three main components, the Quick-Mix Mixing Station for radiant G124X boilers will stack on Buderus flooring applications, the Quick-Pump LT160, LT200, and LT300 tanks. Station for high-temperature zones and the Quick-Header Manifold for multi- temp heating systems.
- Page 6 G234X Model G234X/38 G234X/45 G234X/55 G234X/64 Performance Data Input Rate BTU/Hr 160,000 187,000 228,000 266,000 DOE Heating Capacity BTU/Hr 130,000 154,000 188,000 219,000 Net IBR BTU/Hr 113,000 134,000 163,000 190,000 AFUE % 84.3 84.1 84.8 84.3 Piping Connections Pressure Drop @ 20° F ∆ T (In WC) 16.1 22.1 25.3...
- Page 7 G334X Model G334X/73 G334X/92 G334X/116 G334X/132 Performance Data Input Rate BTU/Hr 301,000 378,000 476,000 542,000 DOE Heating Capacity BTU/Hr 249,000 314,000 396,000 451,000 Net IBR BTU/Hr 217,000 273,000 344,000 392,000 Comb. Eff. (%) 82.7 83.1 83.2 83.2 Piping Connections 32.1 44.1 54.2 60.2 Pressure Drop @ 20°...
- Page 8 G124X | G234X | G334X: Atmospheric Gas Boilers Buderus boilers are manufactured to the highest standards. The boilers are designed with premixed burner technology for low emissions, a factory tested gas operation, and are field converted to propane. To aid in cleaning and servicing the burner tray is completely removable.
