Eclipse CD3421 Owner's Manual

Esn e3 high-power cd receiver with cdc/e-com control
Hide thumbs
Table of Contents

Advertisement

Quick Links

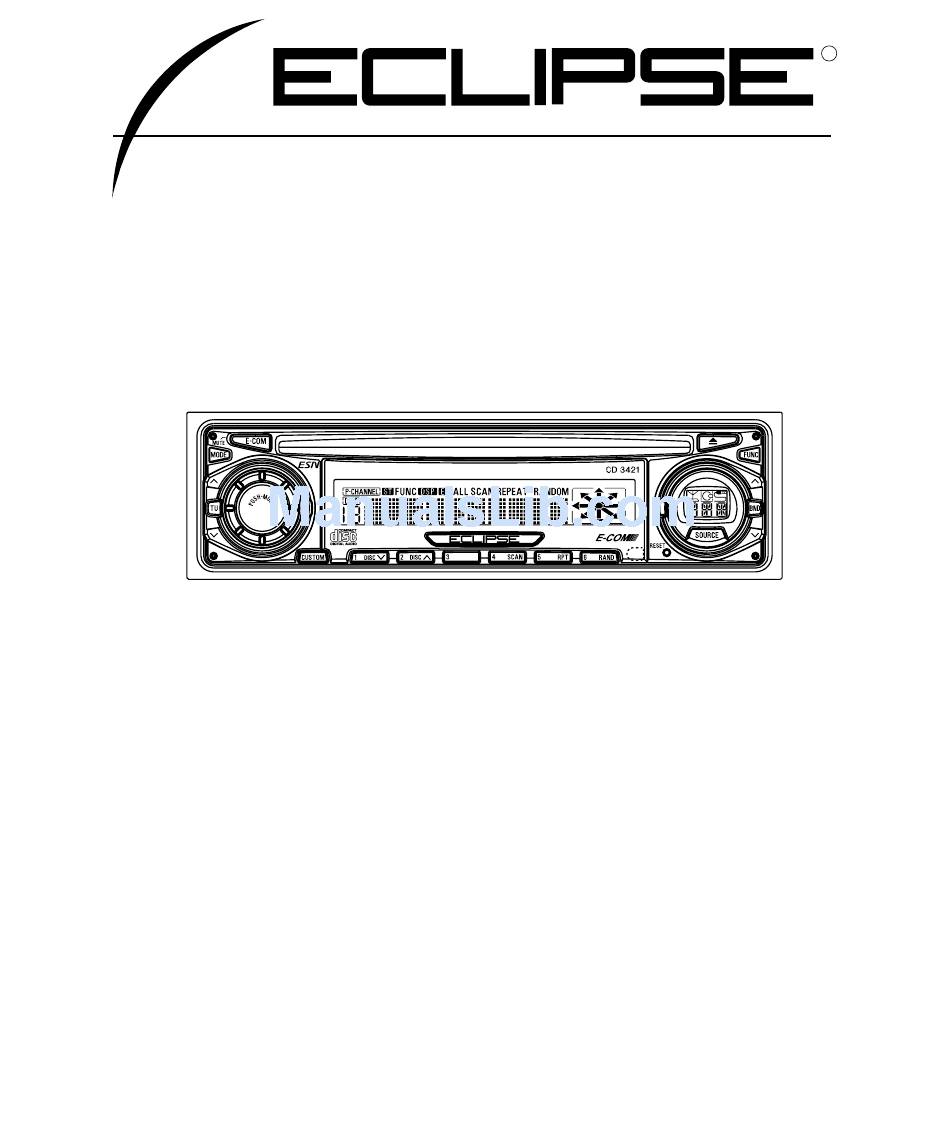

R
by FUJITSU TEN
CD3421
MODEL
ESN E3 High-Power CD Receiver
with CDC/E-COM Control
OWNER'S MANUAL
We appreciate your purchase of this receiver.
Please read through this manual for correct operation.
We suggest that after reading it you keep this manual
in a safe place for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Eclipse CD3421

Summary of Contents for Eclipse CD3421

  • Page 1 FUJITSU TEN CD3421 MODEL ESN E3 High-Power CD Receiver with CDC/E-COM Control OWNER'S MANUAL We appreciate your purchase of this receiver. Please read through this manual for correct operation. We suggest that after reading it you keep this manual...
  • Page 2 CD3421 Warnings and caution signs, illustrated below, are posted throughout this manual as well as on the CD3421. They show safe and correct ways to handle the product so as to prevent personal injury to you and others and avoid damage to property.
  • Page 3 Warning • Do not place the vinyl storage bag over a person. It may cause a serious accident or death by suffocation. • Do not adjust the controls while driving the car. To adjust the controls, stop the car in a safe location. •...
  • Page 4 Warning • To prevent a short circuit from occurring, disconnect the battery's negative terminal before installing this product. Otherwise, an electric shock or injury may result. • When using an existing nut and/or bolt from the vehicle to ground this product, do not use any that secure parts of the steering or braking systems.
  • Page 5 Caution • Play the audio at a moderate volume level that permits you to hear sounds from outside the car. Driving without being able to hear outside sounds may result in an accident. • Keep foreign objects out of the disc slot. They may cause fire or electrical shock.
  • Page 6 Caution • Avoid installing this product in places where it may get wet, such as near windows, or in places that are moist or dusty. Presence of liquid, moisture or dust inside this product can cause short circuiting, resulting in smoke or fire. •...

  • Page 7: Table Of Contents

    Table of Contents Operating Precautions ..........10 Notes on Operation ..............10 About compact discs ..............12 About cleaning a CD ..............14 Names of controls and parts ........15 ESN (Key CD) Security Operating Procedure ..16 How to program the Key CD ............16 How to cancel the Key CD ............
  • Page 8 Entering stations into memory automatically (The automatic preset mode: ASM) ..........33 Manually setting stations into memory ......... 34 Preset station scan ..............35 FM reception characteristics ............36 How to use an optional Card remote control ..39 Precautions in use of the remote control ........39 Cleaning the remote control ............
  • Page 9 Mounting Instruction...........62 Mounting the main unit ..............62 Names of lead wires and destinations ......... 64 System ..................65...

  • Page 10: Operating Precautions

    Operating precautions Operating Precautions <Your CD3421 will perform well over a long period of time through correct handling and care.> Notes on Operation • For your safety, play only at volume levels that allow outside sounds to be heard. • Use only audio compact discs.
  • Page 11 Operating precautions • About dew condensation In cold or rainy weather, just as the interior glass surface gets fogged, dew (water condensation) may also settle on the deck. When this occurs, disc playback may become intermittent or impossible. Dehumidify the air in the vehick for a while before resuming playback.

  • Page 12: About Compact Discs

    Operating precautions About compact discs • The signal recorded on a compact disc is read by a laser beam, so nothing touches the disc surface. A scratch on the recorded surface or a badly warped disc may cause deteriorated sound quality or intermittent playback.
  • Page 13 Operating precautions About brand new CDs About CD accessories • You may notice that some brand • Do not use accessories new discs are rough around the (stabilizers, protective seals, laser center hole or outside edge. lens cleaners, etc.) sold for Remove the rough edges with “improving sound performance”...

  • Page 14: About Cleaning A Cd

    Operating precautions About borrowed CDs About irregularly-shaped CDs • Do not use a CD with glue or • Specially-shaped CDs, like remnants of adhesive tape or heart-shaped or octagonal CDs, labels. They may cause the CD cannot be played. Do not to get stuck inside or damage attempt to play them, even with the deck.

  • Page 15: Names Of Controls And Parts

    Names of controls and parts Names of controls and parts Front View NOTE : Double function button "E-COM" & "MUTE" functions • Though the words "press" and "tap" are used in the text for the operation of the [ TU ] button, and [ BND ] button, the button is actually slid in the direction.

  • Page 16: Esn (Key Cd) Security Operating Procedure

    A [SEC] message appears, then in two seconds it will change to [DISC]. The CD3421 is now ready to accept your Key CD in the CD slot. Insert the CD into the slot. A [SEC] message appears, the Key CD is ejected.

  • Page 17: How To Cancel The Key Cd

    A [SEC] message appears, then in two seconds it will change to [DISC]. The CD3421 is now ready to accept your Key CD in the CD slot. Insert your Key CD into the slot. A [CANCEL] message appears, the Key CD is ejected.

  • Page 18: How To Change The Key Cd

    ESN (Key CD) security operating procedure • This process cancels the protection for the ESN deck. • If power to the CD3421 is disconnected, then reconnected, a key CD will not need to be inserted in order to return the unit to normal operation.

  • Page 19: How To Resume Normal Operation (Esn Security Lock Out)

    ESN (Key CD) security operating procedure How to resume normal operation (ESN security lock out) If power to the CD3421 is disconnected while ESN security is active (a Key CD was programmed), operation is disabled until power is restored and the unit unlocked. Follow this procedure to resume normal operation.

  • Page 20: What Happens If An Incorrect Cd Is Inserted

    If after 10 tries the correct Key CD is not insereted, the display reads [CALL 800]; the unit must be returned to Eclipse to be reset. In this case, please contact your Eclipse dealer for assistance or call Eclipse directly at...

  • Page 21: How To Turn The Security Indicator On/Off

    [ESN] appears on the display, followed by an eight-digit number; this number is your electronic serial number (ESN). You may use this number to identify your Eclipse CD3421 in the event it is recovered after being stolen.

  • Page 22: Basic Operation

    Basic operation Basic operation This section covers basic operating procedures.For additional details, please refer to the sections on specific functions. Turning the power on and off Press the [SOURCE] button. Less than two seconds : Each tap will switch modes from Tuner Disc PWR OFF (Stand by).

  • Page 23: Listening To The Tuner

    Basic operation Listening to the tuner Press the [SOURCE] button repeatedly to switch to the tuner mode. This will turn the tuner on. To turn the tuner off, press the [SOURCE] button either shorter to select another mode or longer to turn the power off.

  • Page 24: Adjusting Audio Volume

    Basic operation Adjusting audio volume Turn the [AUDIO CONTROL] button to the left or right. Turn to the left : Decreases the volume. Turn to the right : Increases the volume. •Press and hold the [E-COM] button for more than two seconds if E-COM is connected and less than two seconds if E-COM is not connected to activate or cancel MUTE function.

  • Page 25: Others

    Basic operation Press the [SOURCE] button to switch to the [CLOCK ON] display. Press the [FUNC] button again. Refer to the section on setting the clock to set the time display. Others Disabling the guide tone feature (for button operation) The receiver is set at the factory to emit a beep tone in response to button operation.

  • Page 26: Setting The Clock

    Basic operation Setting the clock This receiver uses the 12-hour, A.M./P.M.display notation. 1 . Press the [FUNC] button for more than one second. 2 . Press the [CUSTOM] button to switch to the clock adjustment mode. 3 . Press the [SOURCE] button to select the hour or minutes to be adjusted.

  • Page 27: Switching Audio Control Modes

    Basic operation Switching audio control modes Various audio control modes may be fine-tuned using this procedure. 1 . Press the [AUDIO CONTROL] button for less than one second. Pressing the button repeatedly will allow you to control adjustments of [BASS] (low frequencies), [TREB] (high frequencies), [FADER] (front-rear speaker balance), [BAL] (left-right speaker balance), and [SUB-W] (subwoofer level).
  • Page 28 Basic operation Switching Non-Fader modes 1 . Press the [FUNC] button for more than one second. 2 . Press the [ ] button repeatedly until the [PHASE NORM] display appears on the screen. 3 . Press the [SOURCE] button. Each press of the button switch modes between the Normal and Reverse.

  • Page 29: How To Operate The Cd Player

    How to operate the CD player How to operate the CD player First press the [SOURCE] button to switch to the disc mode. It is assumed here that a CD has already been loaded into the unit. Listening to CDs Press the [SOURCE] button.

  • Page 30: Advancing To The Next Track Or Returning To The Beginning Of The Track Being Played

    How to operate the CD player Advancing to the next track or returning to the beginning of the track being played Press the [ TU ] button. [ ] button: Advances to the next track. ] button: Returns to the beginning of the track being played.

  • Page 31: Repeating The Same Track (Repeat)

    How to operate the CD player Repeating the same track (REPEAT) Press button [5 (RPT)] to repeat the track being played. To cancel, press button [5] again. Playing tracks in random order (RANDOM) Press button [6 (RAND)] to play the tracks in random order.

  • Page 32: How To Operate The Tuner

    How to operate the tuner How to operate the tuner First, press the [SOURCE] button to start tuner operation. There are automatic and manual methods for setting stations in memory. The receiver will accept up to 24 stations in memory: six in AM and 18 in FM (6 each for FM1, FM2 and FM3.) Tuning to a station Tap the [ BND ] button to switch to the...

  • Page 33: Entering Stations Into Memory Automatically (The Automatic Preset Mode: Asm)

    How to operate the tuner •At times, it may be difficult to maintain optimum reception because the antenna affixed to your vehicle is in motion constantly (relative to the broadcast antenna), encountering continuous variation in the received radio signals’ strength. Other factors affecting reception include interference from natural obstacles, sign posts, etc.

  • Page 34: Manually Setting Stations Into Memory

    How to operate the tuner •Press any numbered button to select the station whose frequency is indicated right above the button. •When a new station is set in memory, the station previously set in memory will be deleted. •If the number of receivable stations fewer than six, the stations set in the rest of the preset buttons will be retained.

  • Page 35: Preset Station Scan

    How to operate the tuner Preset station scan This function enables reception of all the stations in the numbered preset buttons for five seconds each. Press the [MODE] button. [P SCAN] will appear at the top of the display, and stations stored under preset buttons [1] through [6] will be played for five seconds each.

  • Page 36: Fm Reception Characteristics

    How to operate the tuner FM reception characteristics In general, FM has much better tonal quality than AM. However, FM and FM stereo reception encounter several characteristic problems not encountered with AM. FM is more difficult to receive than AM in a moving vehicle. The following are explanatory notes on what to expect from FM reception and on how to get satisfactory performance.
  • Page 37 How to operate the tuner RECEPTION AREA OF FM BROADCASTS A home receiver can catch weak FM stereo signals through the use of a tall, directional or ultra-sensitive antenna. In a moving vehicle, the area for good reception is limited because of varying conditions encountered while driving, including the types and heights of broadcast antenna structures, signal strength, engine noise, etc.
  • Page 38 How to operate the tuner MULTIPATH The reflection characteristics of FM waves cause another problem called multipath–FM wave signals reflecting off of buildings, mountains, etc. When the antenna receives direct and reflected waves at the same time, distortion of sound in the treble range often occurs, such as static or a harsh-sounding voices.

  • Page 39: How To Use An Optional Card Remote Control

    How to use an Optional Card remote control How to use an optional Card remote control Precautions in use of the remote control • Be careful when handling the control, especially because it is small and light. Dropping or striking it hard may damage it, wear out the battery or cause a malfunction.

  • Page 40: Turning The Power On/Off

    How to use an Optional Card remote control [MODE] [PWR] button Remote-control [+] button light receptor [MUTE] [ - ] button button Turning the power on/off Press the [PWR] button. The power turns on or off each time the button is pressed. •When the main unit is shut down, the remote control will not work.

  • Page 41: How To Play The Tuner

    How to use an Optional Card remote control [ BAND ] button ] buttons TUNE SEEK ] buttons PRESET CH How to play the tuner Enter the tuner mode first. Select the FM/AM band 1. Tap the [BAND] button. Each tap will switch tuner modes from FM1 Select a station (manually or automatically) A short tap of the button will allow manual station tuning.

  • Page 42: How To Play Cds

    How to use an Optional Card remote control [ BAND ] button TRACK APS ] buttons ] buttons DISC How to play CDs Select the disc mode first. Switching disc modes 1. Press the [BAND] button. When one or two CD changer is connected, tap the [BAND] button to change modes from CD player CD changer 1 CD changer 2.

  • Page 43: Switching The Remote Control Settings

    How to use an Optional Card remote control ] buttons TRACK ] buttons DISC [ CUSTOM ] button Switching the remote control settings Remote control functions can be switched to the three patterns. Press the [CUSTOM] button of the main unit for about one second.

  • Page 44: Replacing The Battery

    How to use an Optional Card remote control Replacing the battery Use one CR2025 battery. On the back of the remote control, while pressing the locking knob on the battery slot cover toward your right, pull out the battery carier with your fingernail. UNLOCK Remove the old battery, then place the new one in the carrier with the (+) mark facing up.

  • Page 45: How To Use An Optional Nob Remote Control

    How to use an optional NOB remote control [AUDIO Remote-control CONTROL] light receptor button [PWR] button [MUTE] button How to use an optional NOB remote control Turning the power on/off Press the [PWR] button. The power turns on or off each time the button is pressed. •When the main unit is shut down, the remote control will not work.

  • Page 46: Switching Playback Modes

    How to use an optional NOB remote control [BAND] button [MODE] button BAND MODE TUNE . SEEK TRACK TUNE SEEK DISC E-COM MUTE ILLUMI Switching playback modes Press the [MODE] button. Tap the button to switch modes in the following sequence: How to play the tuner Enter the tuner mode first.

  • Page 47: How To Play Cds

    How to use an optional NOB remote control [BAND] button BAND MODE TRACK ] buttons TRACK TUNE SEEK DISC DISC ] buttons E-COM MUTE ILLUMI Selecting preset stations A total of six stations may be selected (preset tuning) out of those already set in memory through the main unit.

  • Page 48: Illuminating The Nob Remote Control

    How to use an optional NOB remote control •Hold the [ ] button down to fast-forward, or the [ button to fast-reverse the track being played. DISC ] buttons BAND MODE [E-COM] button TRACK TUNE SEEK [ILLUMI] button DISC E-COM MUTE ILLUMI Skipping to the next disc or back to the...

  • Page 49: Switching The Remote Control Settings

    How to use an optional NOB remote control TRACK ] buttons DISC ] buttons [CUSTOM] button Switching the remote control settings Remote control functions can be switched to the three patterns. Press the [CUSTOM] button of the main unit for about one second.

  • Page 50: Replacing The Battery

    How to use an optional NOB remote control Replacing the battery Use two AA cell batteries. Remove the back cover of the remote control unit by gently pressing and sliding it in the direction indicated by the arrow. Install the two batterles provided into the compartment as illustrated inside the compartment.
  • Page 51 How to use an optional NOB remote control Caution Be extremely careful not to swallow the battery. The battery life is approximately one year. If the remote control unit does not operate correctly or if the button lump gets dim, replace the batteries. Be sure to orlent the batteries correctly so that the positive and negative poles match the diagram.

  • Page 52: How To Operate The Receiver With An Optional Cd Changer Connected

    How to operate the receiver with an optional CD changer connected How to operate the receiver with an optional CD changer connected Basic operation This section covers the operation of the CD changer that is connected to the receiver. To switch from another mode, press the [SOURCE] button. Listening to a CD 1.
  • Page 53 How to operate the receiver with an optional CD changer connected Playing the beginning of tracks (SCAN): 1. Press button [4 (SCAN)]. Tapping the button causes the changer to move up to the next track and play it for 10 seconds, then move up to the next track and play it for 10 seconds, and so on, on one CD, until the button is tapped again.
  • Page 54 How to operate the receiver with an optional CD changer connected •Occasionally the same track happens to be played (selected) two or more times in a row, but it is no sign of a problem. •When any of the functions - “Playing the beginning of tracks,”...

  • Page 55: If You Have A Question

    If you have a question: If you have a question: First check the items mentioned below before attempting to troubleshoot problems. Caution • If a problem occurs, for instance when the unit does not respond to any button presses, or the display doesn work correctly, press the [RESET] button using a sharp tool.

  • Page 56: Displaying Information (For Troubleshooting)

    If you have a question: Displaying information (for troubleshooting) The information listed in the chart below is displayed to show the status of the CD player and CD changer. Refer to the chart for the appropriate action. Infomation Code Table When INFO flash on the...
  • Page 57 If you have a question:...
  • Page 58 If you have a question:...

  • Page 59: Specifications

    Specifications Specifications < > GENERAL Power Supply 14.4V DC (11-16V) Current Drain 3A (1W 4) Dimensions (W x H x D) In-Dash Unit 6-1/8 (178 50 155mm) < > FM TUNER Frequency Range 87.75~107.9MHz (200kHz step) Usable Sensitivity 13dBf 50dB Quieting Sensitivity 21dBf Frequency Response 30~15 000Hz...
  • Page 60 Specifications < > CD SECTION Frequency Response 20~20,000Hz, Wow & Flutter Below measurable limits Stereo Separation 73dB S/N Ratio (A-weighted) 96dB Dynamic Range 95dB Total Harmonic Distortion 0.03% < > AUDIO AMPLIFIER Power Output 13W 4 (20~20,000Hz,0.08% THD , 4 ) Max .43W 4 Output Level/Impedance 2.7V (0dB) / 330 line-out...

  • Page 61: Before Installation

    Before Installation Before Installation Notes Be sure to disconnect the battery negative terminal before installing the receiver. Components Item Q'ty Main unit Mounting sleeve Side bracket Rear bracket Bezel Bushing Self-tapping screw (6 x 16 mm) Stud bolt Flat head screw (5 x 8 mm) Hex-head bolt (5 x 20 mm) Hex nut (5 mm) Interconnecting cable...

  • Page 62: Mounting Instruction

    Mounting instruction Mounting instruction Mounting the main unit Insert the mounting sleeve into the opening in the vehicle console. Use a screwdriver or the like to bend the tabs in the mounting sleeve to secure the mounting sleeve. Attach the side brackets to the main unit using flathead screws.
  • Page 63 Mounting instruction Mount the stud bolt to the main unit. Insert the main unit into the mounting sleeve until it locks in place. Fasten the rear of the main unit using either method [A] or [B]. Select method [A] or [B] to suit the interior configuration of the vehicle.

  • Page 64: Names Of Lead Wires And Destinations

    Connect them to their respective speakaers. Cellular phone mute Pink Connect the ground output terminal on a mobile phone. Digital out terminal Connect to digital input terminal of the Eclipse Commander module. terminal Eclipse Commander Connect to the Eclipse Commander.

  • Page 65: System

    Mounting instruction System...
  • Page 66 Mounting instruction...
  • Page 67 Mounting instruction...
  • Page 68 Mounting instruction...
  • Page 69 MEMO...
  • Page 70 MEMO...
  • Page 71 Mounting instruction IMPORTANT RECORD YOUR “KEY CD” HERE… STORE YOUR “KEY CD” ALONG WITH YOUR OWNER’S MANUAL IN YOUR SOCK DRAWER.
  • Page 72 CUSTOMER NOTICE Please retain this booklet and write in the serial number of your CD3421 for identification. The serial number is labeled or stamped on the chassis. Serial No.
