Page 1: User Guide
Phono Preamp DI User Guide Radial Engineering 1638 Kebet Way, Port Coquitlam BC V3C 5W9 Tel: 604-942-1001 Fax: 604-942-1010 email: info@radialeng.com Radial Engineering is a division of C•TEC (JP CableTek Electronics Ltd.) -
Page 2: Table Of Contents
J33 ‘plug & play’ easy-to-use. However, please read this manual thoroughly to ensure the best possible results. Should you have any questions on your new J33, please con- sult the Radial website FAQ section as this is where we publish answers from users after a product has been released. -
Page 3: Introduction

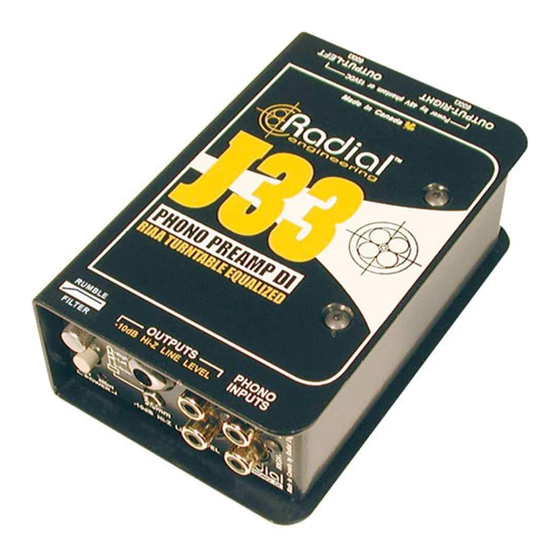

Equipped with an RIAA preamp and choice of -10dB consumer line-level and pro 600- Ohm mic-level outputs, the J33 is right at home in the studio, on the stage and in the DJ booth. -
Page 4: Feature Set
True to the Music RIAA RESPONSE CURVE FEATURE SET The J33 features a pair of stereo inputs for the turntable. A ground lug is provided to properly ground the turntable to avoid system noise. This signal then feeds the RIAA preamp that boosts the phono signal while introducing the RIAA equalization curve. -
Page 5: Input Panel
Paralleled stereo outputs for direct connection to a local mixer, recorder or any device with a RCA input. 7. RCA stereo input Stereo input connectors for turntable signals. Use in con- junction with the gound lug. Radial Engineering J33 User Guide... -
Page 6: Output Panel
10. 15V DC power supply connection The 15VDC supply is connected here for powering the J33. There is no power switch and leaving the J33 on will not harm it. Not used if J33 is powered through phantom power from a mixing console. -
Page 7: Making Connections
If a ground loop hum develops, the solution is to lift the ground at the PA mixer and use the J33’s included power supply. Once your connections are made, turn on the sound system. -
Page 8: Faq
Can I use an active phono cartridge with the J33? No. The J33 is designed to use magnetic cartridges which make up 99% of all turntable cartridges ever sold. Radial Engineering... - Page 9 Connect the line-level output of the J33 to the computer and you should be set to go. Sound card input levels vary, so watch for distortion as the output of the J33 is quite hot. Your computer sound card software should allow you to pad down the input should this be a mic-level input.
-
Page 10: Specifications
J33 BLOCK DIAGRAM J33 Specifications (subject to change without notice) Freq. Response +19.15dB @ 20Hz to - (RIAA curve) 19.65dB @ 20kHz (Ref: 0dB @ 1 KHz) Total harmonic distortion 0.005 % @ 1 KHz RIAA deviation +/- .5dB maximum Max. -
Page 11: Www.radialeng.com
HAVE OTHER RIGHTS, WHICH MAY VARY, FROM STATE TO STATE (OR PROVINCE TO PROVINCE). True to the Music 1638 Kebet Way, Port Coquitlam BC V3C 5W9 tel: 604-942-1001 fax: 604-942-1010 email: info@radialeng.com www.radialeng.com Radial J33 users guide V1.0 - Part #: R870 1090 00...
