QuickSpecs
Overview

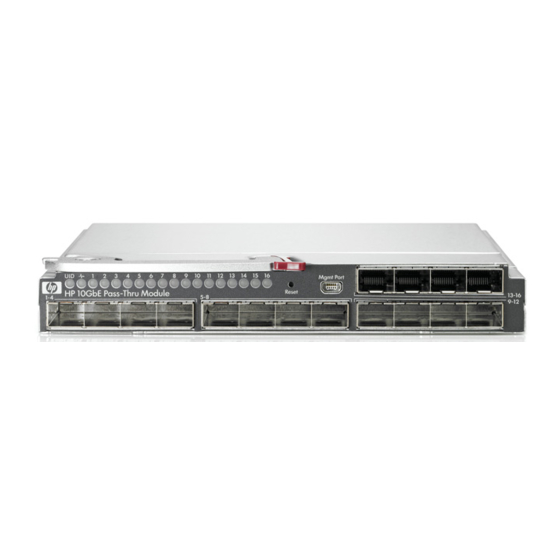

The HP 10GbE Pass-Thru Module is designed for c-Class BladeSystem and HP Integrity Superdome 2 customers requiring a non-
blocking, one -to-one connection between each server and the network. The pass-thru module provides 16 uplink ports that accept
both SFP and SFP+ connectors.
The HP 10GbE Pass-Thru Module can support 1Gb and 10Gb connections on a port by port basis. Optical as well as Direct Attach Copper
(DAC) cables are also supported. Both standard Ethernet as well as Converged Enhanced Ethernet (CEE) traffic to an FCoE capable
switch is possible when using the appropriate NIC or adapter module.

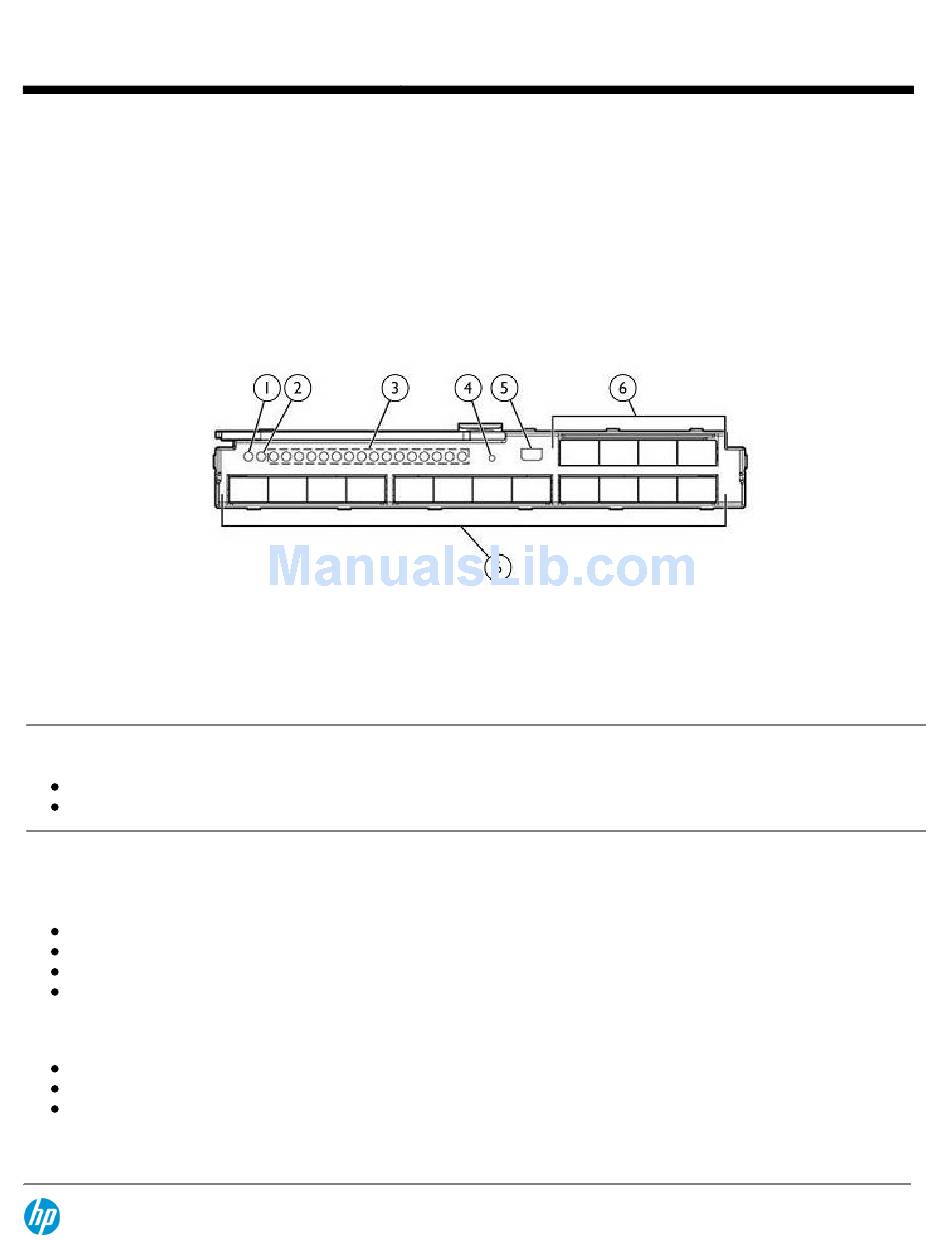

1. UID LED
2. Health LED
3. Ethernet port link status and speed LEDs
What's New
Support for HP ProLiant G7 servers
Support for Converged Network Adapters
At A Glance
Performance:
16 direct server to network connections
Auto-sense 1Gb or 10Gb operation on a port by port basis
Supports standard Ethernet as well as Converged Enhanced Ethernet
Supports all NICs and mezzanine adapters including Flex Adapters
Management:
No management required
Module performance monitored by the On-Board Administrator
Front panel or OA access for service and test and firmware updates
HP 10GbE Pass-Thru Module
DA - 13508 North America — Version 8 — August 17, 2012
4. Reset Button
5. Mini USB RS-232 management port
6. Uplinks ports that accept SFP and SFP+ transceiver modules
and Direct Attach Cables (DAC)
HP 10GbE Pass-Thru Module
Page 1
Advertisement
Related Manuals for HP 10GbE Pass-Thru Module
Summary of Contents for HP 10GbE Pass-Thru Module
- Page 1 SFP and SFP+ connectors. The HP 10GbE Pass-Thru Module can support 1Gb and 10Gb connections on a port by port basis. Optical as well as Direct Attach Copper (DAC) cables are also supported. Both standard Ethernet as well as Converged Enhanced Ethernet (CEE) traffic to an FCoE capable switch is possible when using the appropriate NIC or adapter module.
-
Page 2: Models And Options
QuickSpecs HP 10GbE Pass-Thru Module Models and Options Models HP 10GbE Ethernet Pass-Thru Module for c-Class BladeSystem 538113-B21 HP Integrity 10GbE Pass-Thru Module AT084A DA - 13508 North America — Version 8 — August 17, 2012 Page 2... - Page 3 HP NC360m Dual Port 1GbE BL-c Adapter HP NC364m Quad Port 1GbE BL-c Adapter HP NC373m PCI Express Dual Port Multifunction Gigabit Server Adapter HP NC382m PCI Express Dual Port Multifunction Gigabit Server Adapter HP NC522m Dual Port Flex-10 10GbE Multifunction BLc Adapter...
- Page 4 NOTE: The above cables have been tested and verified to work with the HP 10GbE Pass-Thru Module. However, the module will accept cables from any vendor. HP does not guarantee the performance of non HP cables and users may receive a warning message via the CLI when a non verified cable has been inserted.
-
Page 5: Compatibility Matrix
NC552m NC551m/i NC553i NC325m NC326m NC360m NC364m NC373m NC382m QLogic QMH4062 All HP ProLiant Generation 5 (G5) and earlier servers NC325m 10Gb SR SFP+ Not supported NC326m 10Gb LR SFP+ NC360m 10Gb LRM SFP+ NC364m HP 1m SFP+ 10GbE Copper Cable... -
Page 6: Service And Support
Protect your business beyond warranty with HP Care Pack Services When you buy HP Options, it's also a good time to think about what level of service you may need. HP Care Pack services provide total care and support expertise with committed response choices designed to meet your IT and business need. - Page 7 The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.
- Page 8 HP BLc Virtual Connect 1Gb RJ-45 Small Form Factor Pluggable Option Kit 453154-B21 Service and Support NOTE: HP Care Pack services for the c7000 and c3000 Enclosure cover the enclosure, Offerings power supplies and fans. HP qualified rack options are covered by these services when installed within the same rack.
-
Page 9: Technical Specifications
QuickSpecs HP 10GbE Pass-Thru Module Technical Specifications Shipping Dimensions Length 11.42 in (290 mm) Width 14.49 in (368 mm) Height 2.36 in. (60 mm) Shipping Weight 2.1 kg (4.6 lbs) Product Specifications Performance 320 Gbps external port bandwidth per module... - Page 10 Microsoft and Windows are US registered trademarks of Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
