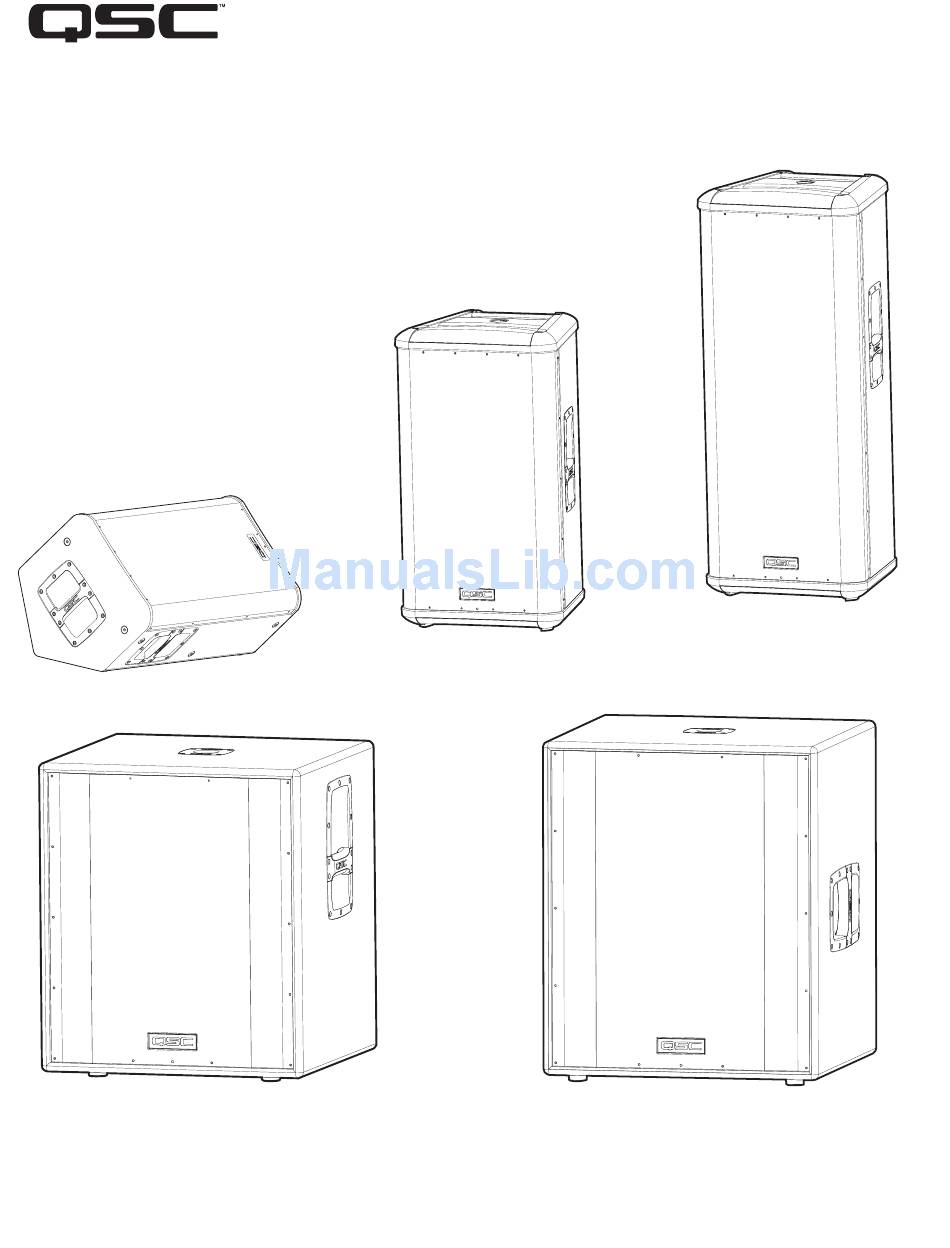

HPR Series Powered Loudspeaker Products
User Manual
HPR122i
HPR152i
HPR153i
HPR151i
HPR181i
*TD-000234-00*
TD-000234-01 rev.B
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main Number (714) 754-6175 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
12-inch two-way
15-inch two-way
15-inch three-way
15-inch subwoofer
18-inch subwoofer
Advertisement
Table of Contents
Related Manuals for QSC HPR122i
Summary of Contents for QSC HPR122i
-
Page 1: User Manual
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA Main Number (714) 754-6175 or toll free (USA only) (800) 854-4079 Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834 HPR Series Powered Loudspeaker Products User Manual HPR122i 12-inch two-way HPR152i 15-inch two-way HPR153i... - Page 2 18- HPR152i WARNING! Do not use a loudspeaker support pole longer than 26” (660mm) when supported by QSC’s HPR151i or HPR181i subwoofer. 19- HPR122i WARNING! Do not use a loudspeaker support pole longer than 31” (787mm) when supported by QSC’s HPR151i or HPR181i subwoofer.
- Page 3 All models feature a 21-step detent Gain control allowing precise control and repeatable setup. The enclo- sures are made of high-quality plywood and are texture-coated in black. The models HPR122i, HPR152i and HPR153i have integral M10 suspen- sion points for permanent installation and "flying"...
- Page 4 HPR153i Features 1- Power Amplifier 4- Slip-resistant Feet 2- Handles 5- Rigging Points 3- Grill HPR151i Features HPR181i Features 1- Pole Cup 4- Power Amplifier 2- Handles 5- Slip-resistant Feet 3- Grill 6- Casters (HPR181W only)
- Page 5 Full Range Amplifier Detail 1- Input and Output Connector(s) 2- Gain Control 3- Power, Signal, and Clip LED Indicators 4- Front LED Switch 5- 100 Hz Low-Cut Filter Switch 6- Power Switch 7- Circuit Breaker 8- Serial Number Plate 9- Power Cord Tether Lance 10- IEC Power Inlet Subwoofer Amplifier Detail 1- Input and Output Connector(s)
-
Page 6: Installation
How They Should Be Used HPR122i: The HPR122i was designed to sit on the floor, stage, subwoofer enclosure, be suspended, or be pole mounted on a 35mm diameter loudspeaker support pole. The pole can be part of a stand-alone loudspeaker stand or be inserted into the pole cup of the HPR151i or HPR181i. - Page 7 The HPR152i and HPR153i enclosures feature three load-rated pick points. HPR122i The HPR122i enclosure features nine load-rated pick points. As shipped from the factory, each pick point has a bolt or plug installed to retain the air-tight design of the enclosure. Never operate the loudspeaker with the pick points open (unsealed) as it will degrade the performance of the product.
-
Page 8: Power Switch
Power On Sequence: Turn on all source devices (CD players, mixers), turn on subwoofer, then turn on the “top-boxes” (HPR122i, HPR152i and HPR153i). Power Off Sequence: Turn off the top-boxes, turn off the subwoofer, then turn off the source devices. -
Page 9: Input Connections
11k ohm for unbalanced connections. The signal's source impedance should be less than 600 ohms. HPR122i, HPR152i and HPR153i: Insert the male XLR input Subwoofer loudspeaker’s Input (IN) into the jack marked FULL RANGE LINE IN. Ensure the connector and Output (OUT) Connectors is fully seated. -
Page 10: Output Connections
IMPORTANT! If using full range loudspeakers from another manufacturer, we recommend they be connected to the QSC subwoofer’s 100 Hz LOW- CUT OUT. This will ensure proper phasing of the full range loudspeaker with respect to the sub-... -
Page 11: Gain Control
This results in proper subwoofer operation and allows the top box to provide improved clar- ity in the middle and high frequencies. HPR122i: If using as a floor monitor, turn the filter ON for improved vocal range clarity and to reduce low frequency build-up on... - Page 12 How to Use the Polarity Switch When using QSC subwoofers and QSC full range loudspeakers, NORMAL polarity will result in the best bass response IF the full range loudspeakers are sitting on or very close to the subwoofers. If the subwoofers are some dis- tance away from the full range loudspeakers, polarity change may be of bene- fit.
-
Page 13: Normal Indication
SIGNAL Indicator LED The green SIGNAL indicator alerts the user to the presence of an input signal to the HPR loudspeaker. Normal Indication The green SIGNAL indicator illuminates when the input signal exceeds -25 dB. If No Indication LED indicators. Check Gain settings and increase gain if necessary. -
Page 14: Application Example
FULL RANGE LINE IN connector. Turn off each top-box’s 100 Hz LOW-CUT FILTER. This will provide more low-frequency content (bass) in the absence of a subwoofer. HPR122i, HPR152i, or HPR153i HPR122i, HPR152i, or HPR153i Mixer or Other Audio Source Application Example #1 hookup diagram. - Page 15 If connected as shown, power sequencing is not an issue. HPR151i or HPR181i HPR122i, HPR152i, or HPR153i HPR122i, HPR152i, or HPR153i Mixer or Other Audio Source Application Example #2 hookup diagram.
- Page 16 (turn-off thumps) if the subwoofer is powered down before the top-boxes. If connected as shown, power sequencing is not an issue. HPR122i, HPR152i, or HPR153i HPR151i or HPR181i Application Example #3 hookup diagram. Use only high-quality balanced cables for interconnecting the audio equipment.
- Page 17 FULL RANGE LINE IN connector. Up to 20 top-boxes could be “daisy-chained” without degrading signal quality. HPR122i, HPR152i, or HPR153i HPR122i, HPR152i, or HPR153i HPR151i or HPR181i Application Example #4 hookup diagram. Use only high-quality balanced cables for interconnecting the audio equipment.
- Page 18 Application Example #5 physical diagram. This example shows a two-chan- Channel 1 Channel 2 nel (stereo) setup utilizing two HPR122i loudspeakers as floor Left Channel Right Channel monitors. Audio signals for the Left and Right channels are supplied by the mixer console auxiliary buss.
- Page 19 Dimensions, HPR152i Dimensions, HPR153i...
- Page 20 Dimensions, HPR151i Dimensions, HPR181i...
- Page 21 Specifications, HPR122i HPR122i Frequency Response, -3dB 62-18k Hz Frequency Range, -10dB 53-22k Hz Maximum Peak SPL 131dB Nominal coverage, H x V 75°x75° Directivity Index Directivity Factor Transducer Description 12” (309mm) transducer with 3” (76mm) voice coil 1” (25mm) throat compression drive Acoustic Crossover Freq.
- Page 22 Specifications, HPR152i and HPR153i HPR152i HPR153i Frequency Response, -3dB 54-17.5k Hz 41-17.5k Hz Frequency Range, -10dB 47-20k Hz 36-20k Hz Maximum Peak SPL 135dB 133dB Nominal coverage, H x V 90°x60° 90°x40° Directivity Index 11.1 Directivity Factor 12.9 Transducer Description 15”...
- Page 23 Specifications, HPR151i and HPR181i HPR151i HPR181i Frequency Response, -3dB 51-105 Hz 45-95 Hz Frequency Range, -10dB 43-145 Hz 39-145 Hz Maximum Peak SPL 133dB 134dB Nominal coverage, H x V Not applicable (N/A) Not applicable (N/A) Transducer Description 15” (381mm) transducer with 3” (76mm) voice coil 18”...
- Page 24 Warranty (USA only; other countries, see your dealer or distributor) Disclaimer QSC Audio Products, Inc. is not liable for any damage to amplifiers or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
