Installation clearances
The location must be large enough to allow the washer door
to be fully opened.
Additional spacing should be considered for ease of
installation and servicing. The door opens more than 90°, and
it is not reversible.
Additional clearances might be required for wall, door, and
floor moldings.
Additional spacing of 1" (2.5 cm) on all sides of the washer is
recommended to reduce noise transfer.
Companion appliance spacing should also be considered.

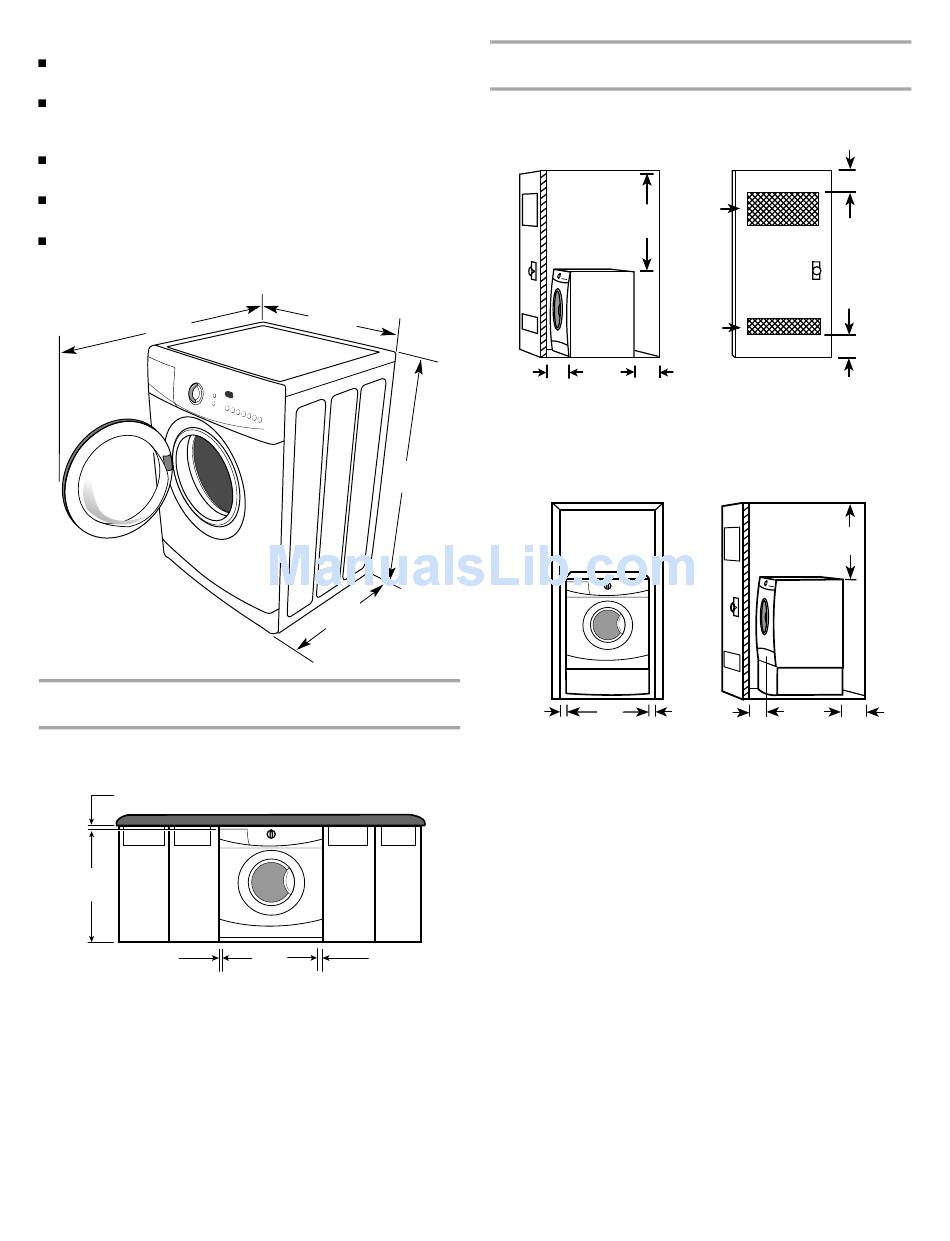

Washer Dimensions
36.2
"
(92 cm)
Recommended installation spacing for custom
undercounter installation
The dimensions shown are for the recommended spacing.
Custom undercounter installation - Washer only
2" (5 cm)
32.9" min.
(83.5 cm)
1"
(2.5 cm)
23.4"
(59.5 cm)
32.9"
(83.5 cm)
20.1"
(51 cm)
23.4" 1"
(2.5 cm)
(59.5 cm)
Recommended installation spacing for recessed or
closet installation, with or without a pedestal
The dimensions shown are for the recommended spacing.
Recessed area or closet installation
34"
(86.4 cm)
1"
20.1" 4"
(2.5 cm)
(51.0 cm) (10.2 cm)
A
A. Side view - closet or confined area
B. Closet door with vents
Recessed or closet installation - Washer on pedestal
1" 23.4"
(2.5 cm) (2.5 cm)
(59.5 cm)
A
A. Recessed area
B. Side view - closet or confined area
(7.6 cm)
2
48 in.
2
(310 cm )
2
24 in.
2
(155 cm )
(7.6 cm)
B
18" min.
(45.7 cm)
1" 1" 20.1" 4"
(51.0 cm)
(2.5 cm) (10.2 cm)
B
3"
3"
