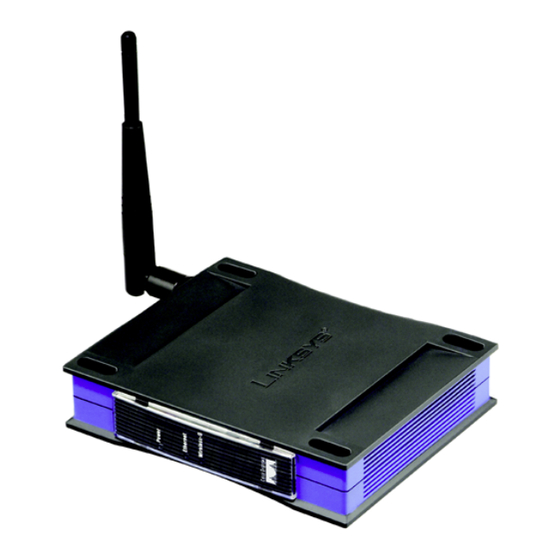

Linksys WET54G Quick Installation Manual

Wireless-g ethernet bridge
Hide thumbs Also See for WET54G:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
A Division of Cisco Systems, Inc.
2
4 ,
GHz
802.11g
Wireless
Wireless
Model No.
WET54G (UK/EU/LA) v2
Model No.
Model No.
®
Wireless-G
Ethernet Bridge
Package Contents
• Wireless-G Ethernet Bridge
• Setup CD-ROM
• User's Guide on CD
• Quick Installation Guide
• Detachable Antenna
• RJ-45 Network Cable
• One Pair of Bridge Stands
• Power Adapter
Quick Installation Guide
Quick Installation Guide
1

Advertisement

loading

Related Manuals for Linksys WET54G

Summary of Contents for Linksys WET54G

  • Page 1 ® A Division of Cisco Systems, Inc. Package Contents • Wireless-G Ethernet Bridge • Setup CD-ROM • User’s Guide on CD • Quick Installation Guide • Detachable Antenna • RJ-45 Network Cable • One Pair of Bridge Stands • Power Adapter Wireless-G 802.11g...

  • Page 2: Connect The Wireless-G Ethernet Bridge For Setup

    Connect the Wireless-G Ethernet Bridge for Setup Attach the detachable antenna. Plug the included Ethernet network cable into the LAN port on the back panel of the Bridge. Plug the other end of the Ethernet network cable into the RJ-45 port of the hub, switch, or PC you wish to use to configure the Bridge.

  • Page 3: Set Up The Wireless-G Ethernet Bridge

    Set up the Wireless-G Ethernet Bridge Insert the Setup CD-ROM into your PC’s CD-ROM drive. The Setup Utility should run automatically, and the Welcome screen should appear. If it does not appear, click the Start button and choose Run. In the field that appears, enter D:\setup.exe (if “D”...
  • Page 4 A Password screen will appear. In lowercase letters, enter admin in the Password field. Then click Enter. The Mode Settings screen will appear. Select Infrastructure if you want your wireless computers to communicate with computers on your wired network using a wireless access point.
  • Page 5 The IP Settings screen will appear. If your network has a DHCP server, select Automatically obtain an IP address (DHCP). Click Next and proceed to step I. If your network does not have a DHCP server, select Set IP configuration manually. Enter an IP Address, IP Mask (also known as Subnet Mask), and The default IP address of...
  • Page 6 On the Security Settings screen, set the level of encryption you want for your network, and select the Passphrase(s) and/or encryption keys. With WPA PSK, or Pre-Shared Keys, you have two encryption options, TKIP and AES, with dynamic encryption keys. Select the type of algorithm, TKIP or AES.
  • Page 7 Review your settings on the Confirmation screen. Write down the Bridge’s IP Address if you want to access the Bridge’s Web-based Utility. Click Yes to save these settings. On the Congratulations screen, click Exit.

  • Page 8: Connect The Wireless-G Ethernet Bridge For Network Use

    Technical Support Insert. You can also e-mail for further support. Website http://www.linksys.com/international Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. WET54G-UK-EU-LA_V2-QIG-40219NC JL...
