Summary of Contents for Samsung SP-M206
-
Page 1: Lcd Projector

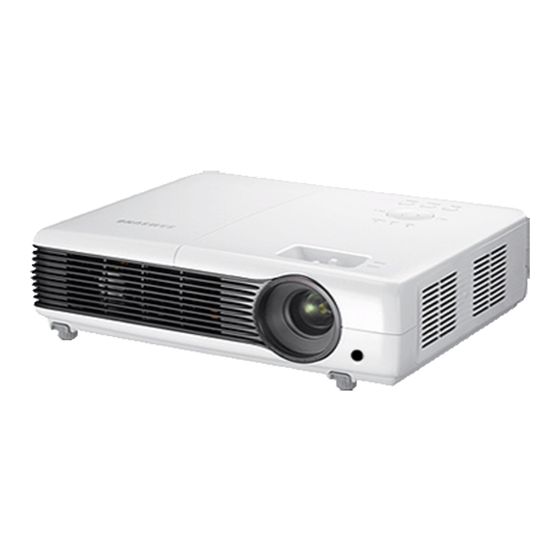

SP-M206 SP-M226 SP-M256 SP-M275 SP-M305 LCD Projector Owner’s Instructions The color and the appearance of the product may differ from the illustrations in this manual. The specifications are subject to change without prior notice to improve performance. -
Page 2: Table Of Contents
Table Of Contents MAJOR SAFETY PRECAUTIONS Before You Start ......... . . 1-1 Care and Maintenance . - Page 3 RS232C Command Table ........6-2 Contact SAMSUNG WORLDWIDE ......6-3...
-
Page 4: Major Safety Precautions
Copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved. The copyright of this manual is reserved by Samsung Electronics, Co., Ltd. The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd. -
Page 5: Care And Maintenance
The appearance and the color may differ depending on the model. Cleaning Inside the Projector For cleaning the interior of the projector, contact an authorized Samsung Service Center. • Contact a Service Center if dust or other substances are inside the projector. -
Page 6: Safety Precautions
Safety Precautions Icons used for safety precautions ICON NAME MEANING Failing to follow the precautions marked with this sign may result in a serious injury or even Warning a fatality. Failing to follow the precautions marked with this sign may result in a personal injury or Caution property damage. - Page 7 Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only). • Otherwise, it may result in electric shock or injury. Caution When unplugging the power plug from the Do not turn the product on or off by plug- wall outlet, make sure to hold the power ging or unplugging the power plug.
- Page 8 Do not install the product in a location Do not install the product in areas with heavy dust. exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and do not install it in a vehicle. • This may result in electric shock or fire. Caution Take care not to block the vent with a table Do not let the product drop while moving it.
- Page 9 Caution If the product generates a strange noise, a If water or a foreign substance enters the burning smell, or smoke, unplug the power product, turn the product off, unplug the plug immediately and contact a service power cord from a wall outlet, and contact center.
- Page 10 To avoid burning yourself, do not touch the Do not clean the product using water spray vents or lamp cover while operating or or a wet cloth. Avoid using any chemicals right after turning off the product. such as detergents, industrial or automo- tive polish, abrasive, wax, benzene, alco- hol on any plastic part of the product such as projector case, since this may cause...
-
Page 11: Installation And Connection
Installation and Connection Package Contents • Unpack the product and check if all of the contents listed below have been included. • Store the packaging box in case you need to move the product at a later date. Projector CONTENTS Quick Setup Guide Warranty Card (Not available User Manual... -
Page 12: Installing The Projector
Installing the Projector Install the projector so that the beam from the projector is perpendicular to the screen. • Place the projector so that the lens aims at the center of the screen. If the screen is not vertical, the picture on the screen may not appear rectangular. -
Page 13: Leveling With Adjustable Feet
Leveling with Adjustable Feet Press the PUSH buttons, as shown, to adjust the legs and level the projector. The projector can be adjusted to a height of up to 1.18 inches (30mm, about 12 °) from the reference point. If <Auto Keystone> is set to <On>, <V-Keystone> is adjusted automatically. If fine tuning is required after auto-adjustment, use <V-Keystone>. -
Page 14: Zoom And Focus Adjustment
Zoom and Focus Adjustment Zoom Knob You can adjust the size of the image within the zoom range by manipulating the Zoom Knob. Focus Ring Focus the picture on the screen using the Focus Ring. The size of your screen determines the distance you set your projector from the screen. If you do not install your projector at the projection distance specified in the Screen Size and Projection Distance table in Section 2-5, you will not be able to adjust the focus correctly. -
Page 15: Screen Size And Projection Distance
Screen Size and Projection Distance A. Screen / Z. Throw Distance / Y’. Distance from Lens Center to Image Bottom Install the projector on a flat, even surface and level the projector using the adjustable feet to obtain optimal picture quality. If images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward. - Page 16 SCREEN SIZE THROW DISTANCE OFFSET M (DIAGONAL) X (HORIZONTAL) Y (VERTICAL) Z (TELE) Z (WIDE) INCHES INCHES INCHES INCHES INCHES INCHES 609.6 487.7 365.8 341.8 868.1 284.2 721.8 19.9 50.4 635.0 508.0 381.0 356.0 904.2 296.0 751.8 20.7 52.5 660.4 528.3 396.2 370.2...
-
Page 17: Lamp Replacement
SP-M256 / SP-M275 / SP-M305 Lamp Model Name DPL3311U DPL3321U - For inquiries on lamp purchase, please see 'Contact SAMSUNG WORLDWIDE' in section 6-3. • Check that the power cord is unplugged before replacing the lamp. • Because the lamp is a high temperature and high voltage product, wait at least one hour from the time you disconnect the power cord before replacing the lamp. -
Page 18: Ventilation Openings
When you replace the filter, you may release some dust. • For inquiries on replacement filter purchase, please see 'Contact SAMSUNG WORLDWIDE' in Chapter 6. To replace or clean the filter, follow these steps: 1. Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently. - Page 19 Air outtake vent Air intake vent Installation and Connection...
-
Page 20: Rear Side
Rear Side ICON NAME Kensington Lock slot PC IN port VIDEO IN port AUDIO IN (L-AUDIO-R) port HDMI/DVI IN port Remote Control Signal Receiver Power Input port AUDIO OUT/ port RS232C port LAN port USB port Installation and Connection... -
Page 21: Supported Display Modes
Supported Display Modes 2-8-1. PC Timing (D-Sub/HDMI) HORIZONTAL VERTICAL PIXEL FREQUENCY FORMAT RESOLUTION FREQUENCY FREQUENCY (HZ) (MHZ) (KHZ) 640 x 350 70Hz 31.469 70.086 25.175 640 x 480 60Hz 31.469 59.940 25.175 720 x 400 70Hz 31.469 70.087 28.322 640 x 480 67Hz 35.000 66.667... - Page 22 HORIZONTAL VERTICAL PIXEL FREQUENCY FORMAT RESOLUTION FREQUENCY FREQUENCY (HZ) (MHZ) (KHZ) VESA 1280 x 960 72Hz 72.072 72.000 124.540 VESA 1280 x 960 75Hz 75.231 74.857 130.000 VESA 1280 x 1024 60Hz 63.981 60.020 108.000 VESA 1280 x 1024 70Hz 74.620 70.000 128.943...
- Page 23 HORIZONTAL VERTICAL PIXEL FREQUENCY FORMAT RESOLUTION SCAN FREQUENCY FREQUENCY (HZ) (MHZ) (KHZ) EIA-861 Format2,3 720 x 480 Progressive 31.469 59.940 27.000 EIA-861 Format2,3 720 x 480 Progressive 31.500 60.000 27.027 EIA-861 Format4 1280 x 720 Progressive 44.955 59.939 74.175 EIA-861 Format4 1280 x 720 Progressive...
-
Page 24: Connecting The Power
Connecting the Power 1. Plug the power cord into the power terminal on the rear side of the projector. Installation and Connection... -
Page 25: Connecting With A Pc And Setting Up The Pc
2-10 Connecting with a PC and Setting up the PC 2-10-1. Setting up the PC Environment Check the following items before connecting your PC to your projector. 1. Click the right mouse button on the Windows desktop, and then click [Properties]. The <Display Properties>... -
Page 26: Connecting With A Pc
5. Click the [OK] button to close the window, and then click the [OK] button on the <Display Properties> window to close that window. 6. Shut down the PC and connect it to the projector. The setup process might vary depending on your type of computer or version of Windows. (For example, [Properties] appears instead of [Properties (R)] as shown in 1.) This projector supports 32 bit color quality (per pixel) when it is used as a PC monitor. -
Page 27: Connecting A Pc Using An Hdmi/Dvi Cable
2-11 Connecting a PC using an HDMI/DVI cable 2-11-1. Connecting a PC using an HDMI/DVI cable Make sure that your PC and projector are turned off. 1. Connect the [HDMI/DVI IN] terminal of the projector to the HDMI or DVI terminal of your PC using a HDMI/HDMI or HDMI/DVI cable (Not supplied). - Page 28 In Classic View of Windows XP : Go to Control Panel - [Sound and Audio Devices], and select the <Audio> tab. On Windows 7 : Go to Control Panel - [Sound], and select the <Playback> tab. 2. Specify the default device for sound playback: You can select the PC speakers or projector speaker.
-
Page 29: Connecting An Hdmi-Compatible Device
2-12 Connecting an HDMI-Compatible Device Make sure that the AV device and your projector are turned off. 1. Connect the [HDMI/DVI IN] terminal at the back of the projector to the HDMI or HDMI/DVI output terminal of the digital output device using an HDMI/DVI or HDMI/HDMI cable. -
Page 30: Connecting An Av Device Using A D-Sub Cable
2-13 Connecting an AV device using a D-Sub cable Make sure that the AV device and your projector are turned off. 1. Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable. - For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-8, "Supported Display Modes". -
Page 31: Connecting An Av Device With Component Output
2-14 Connecting an AV device with Component output Make sure that the AV device and your projector are turned off. 1. Connect the [PC IN] terminal on the back of the projector to the Component terminal on your AV device using a D-Sub to Component cable (Not supplied). -
Page 32: Connecting Using A Video Cable
2-15 Connecting using a Video cable Make sure that the AV device and your projector are turned off. Connect the AV device to the port using a VIDEO cable (not supplied). [VIDEO IN] - For supported input signal formats, see AV Timing (VIDEO) in section 2-8, "Supported Display Modes". 2. -
Page 33: Connecting An External Speaker
2-16 Connecting an External Speaker You can hear sound through an external speaker instead of the internal speakers built into the projector. 1. Obtain an audio cable (Not supplied) suitable for your external speaker. 2. Connect the [AUDIO OUT/ ] terminal of the projector to the external speaker using an audio cable. - When using an external speaker, the internal speaker does not operate but you can adjust the volume of the external speaker using the Volume button or the remote control of the projector. -
Page 34: Connecting To A Network
2-17 Connecting to a Network This product can use network functions. Refer to the following Network connection method. 2-17-1. Connecting to a Dynamic IP (DHCP) Network You can attach the projector to your network through a modem that uses DHCP (Dynamic Host Configuration Protocol). When you use a DHCP modem, the modem automatically provides the IP address, subnet mask, and gateway values that the projector needs to access the network. - Page 35 2-17-2. Connecting to a Static IP Network You can attach the projector to a network that uses a Static IP address, which corresponds to using a dedicated lease line. If your network uses Static IP addresses, you must get the IP address, subnet mask, and gateway values from your Internet Service Provider (ISP), turn on the Network function in the projector's Menu, and then enter the values into the Network function manually.
-
Page 36: Kensington Lock Slot
2-18 Kensington Lock slot The Kensington Lock slot allows you to lock your projector, providing a sense of security when you use it in a public place. Because the shape and usage of the lock may differ depending on the model and the manufacturer, see the User Manual supplied with the locking device for more information. -
Page 37: Using
Product Features 1. An optical engine adopting new LCD technology • 1024 x 768 resolution. • 3P-LCD panel. ANSI • SP-M206 : Provides a bright, 2000 lumen screen. ANSI • SP-M226 : Provides a bright, 2200 lumen screen. ANSI •... -
Page 38: Front, Upper
Front, Upper ICON NAME DESCRIPTION Indicators - STAND BY (Blue LED) - LAMP (Blue LED) - STATUS (Green/Red/Yellow LED) Refer to the LED Indications. Move / Select : Use to move or to select an item within a menu. Volume button : Use to adjust the volume. -
Page 39: Remote Control
Remote Control Using your projector with another remote control device nearby may result in improper functioning due to remote control code (frequency) interference. POWER ( QUICK Button ) Button Use this button to turn the projector on Use to quickly return to the last menu and off. -
Page 40: Installing Batteries In The Remote Control
• Make sure to place your remote control on a table or desk. - If you step on the remote control, you may fall and hurt yourself or damage the remote. • You can use the remote control up to a distance of about 32.8 feet (10 m) from the product. Installing Batteries in the Remote Control 1. -
Page 41: Led Indications
LED Indications LED Indications :Light is On :Light is Blinking :Light is Off STATUS LAMP STAND BY STATUS If you press the [POWER] button on the remote control or projector, the screen appears within 30 seconds. The projector is operating normally. The projector is preparing an operation after the [POWER] button on the projec- tor or the remote control has been pressed. -
Page 42: Clearing Indicator Problems
If the same problem occurs continually, con- Action 5 or after the projector is powered tact a Samsung service center. on right after turning off. This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may produce noise, This does not affect product performance and is part of normal operation. -
Page 43: Using The Screen Adjustment Menu (Osd: On Screen Display)
Using the Screen Adjustment Menu (OSD: On Screen Display) The Screen Adjustment Menu (OSD: On Screen Display) Structure To access the Menu, press the Menu button on the product or on the remote. To move in the menu, press the arrow buttons. Menu selections with an arrow on the far right have sub-menus. - Page 44 MENU DESCRIPTION Mode Select a screen mode to match the environment, the kind of images you are projecting, or select a customized mode you have created based on your requirements. <Mode> • <Dynamic> : Selects the picture for increased definition in a bright room. •...
- Page 45 MENU DESCRIPTION Position Using this function, you can adjust the screen position if it is not aligned. To adjust, select the direction you want to move the screen, and then press the arrow button pointing in that direction repeatedly. This function does not work in <Media Play> mode. Digital NR If dotted lines appear in an image or the screen shakes, enabling Digital NR (Noise Reduction) can improve the quality of the picture.
- Page 46 3-5-3. Setup MENU DESCRIPTION Install To tailor the picture to the installation location, (for example, behind a semi-transparent screen, hang- ing from the ceiling), you can invert the projected images vertically / horizontally. • <Front-Floor> : Normal Image • <Front-Ceiling> : Horizontal/Vertical Reversed Image •...
- Page 47 MENU DESCRIPTION Video Type If the screen quality is abnormal as a result of the projector not identifying the input signal type auto- matically in <PC> or <HDMI> mode, Video Type lets you manually set the input signal. This function does not work in <Media Play> mode. •...
- Page 48 MENU DESCRIPTION Network By connecting a LAN cable between the PC and projector, you can use the following supplementary functions on your PC. On your PC, you can check the projector's condition (lifespan of the lamp, operation error, temperature) and remotely control the projector's power On/Off, brightness, and sound On/Off . <Network>...
- Page 49 • Use the displayed number keys to enter or change the password. • If you forgot your password, contact a Samsung Service Center. Panel Lock You can disable the buttons on the projector body so that the projector can only be operated by the remote control.
-
Page 50: Network Management
2-17, Connecting to a Network To control multiple projectors from a single PC, install and run Samsung Projector Manager. For information about Samsung Projector Manager, go to 3-6-2 Check the network connection between the PC and projector before connecting the Web Browser. If the network connection has failed, the Web browser window may not be available for use. - Page 51 Install according to the instructions displayed on the PC screen. 2. Running the Samsung Projector Manager When the installation of Samsung Projector Manager and the network setup for the projector have been completed, the Samsung Projector Manager will be available for use.
- Page 52 <Projector List>, and then select <Add Projector>. • Specify the <Projector Name>, <IP Address> and <Group Name> to register, and then press <ADD>. • Any group whose name is not specified will automatically be named <Default Group>. To remove and / or rename a registered projector, right-click and then select <Delete>...
- Page 53 (represented by icons), etc. in real time. Samsung Projector Manager displays icons that indicate a projector's status. The icons are listed in the tables below. If the icons indicate a problem with your projector, see "Clearing Indicator Problems" in secton 3-4, LED Indications.
- Page 54 ICONS STATUS STATE ACTION Warning The air filter has reached the end of its life. The air filter needs to be replaced. Warning The air filter has been blocked by dust. The air filter needs to be cleaned. Error The air filter has been blocked by dust. The air filter needs to be cleaned.
- Page 55 : Connecting the Web browser from Samsung Projector Manager By connecting to the Web Browser in Samsung Projector Manager, you can use more diverse functions. To perform the Web browser connection, select a Projector to connect to, and then right-click to select <WebControl>.
- Page 56 • Using the <Schedule> Function Using the <Schedule> function, you can manage your projectors more efficiently. If you select <List>→<Schedule>, the following window appears. The screen has four buttons: • <New> : Adds a projector to make a Schedule for. •...
- Page 57 <Minimize to system tray> – Samsung Projector Manager will be minimized to the system tray. <File> contains two selections. - <File> →<Export Config> : Saves all of the configured settings under Samsung Projector Manager in the desired file names to the corresponding folders.
-
Page 58: Media Play Function
Media Play Function Connecting a USB Storage Device and Precautions 4-1-1. Connecting a USB Device 1. Connect your USB storage device to the USB port on the back of the projector. - The main page of the <Media Play> menu appears. The main page of <Media Play>... - Page 59 •Some products which do not comply with standard USB specifications might not operate normally. •A USB storage device with automatic recognition application or its own driver might not operate normally. •A USB storage device that uses only a designated driver might not be recognized. •Recognition speed for USB storage device may vary by device.
-
Page 60: Documents
Documents You can view document files in various formats saved on a USB memory device or in the projector's internal memory. Menu displayed from the Documents screen The Documents screen. The Menu below appears when you press the [MEDIA.P] button while displaying the Documents screen. •... - Page 61 MENU ITEM DESCRIPTION Zoom Enlarge or reduce a document. • <Zoom In> : Enlarge a document (25% increments within the range of 100% ~ 500%). • <Zoom Out> : Reduce a document. • <Custom> : Enlarge or reduce the screen by a specific percentage. •...
- Page 62 For example, too much data on one sheet in a Excel file. • This product supports only one font. If a screen uses other fonts, the image Media Play displays may be different than the original screen. (Ex) 1. The position of line breaks in a sentence might be dissimilar. 2.
-
Page 63: Photo
Photo Enjoy a slideshow of photos saved on a USB memory device or in the projector's internal memory. Menu displayed from the Photo Thumbnails screen The Photo Thumbnails screen. The Menu below appears when you press the [MEDIA.P] while displaying the Photo Thumbnails screen. •... - Page 64 Slideshow Select the file you want using the ▲/▼ buttons on the projector or remote control. Using the remote control during a slideshow: MEDIA.P : Open the photo menu. • • : View the previous or next photo. • : Pause or resume a slideshow. •...
- Page 65 MENU ITEM DESCRIPTION Background Music • <On> : Play music defined as background music in file name order. • <Off> : Stop the background music that is being played. • <Music Setting> : Define background music for a slideshow. Set as Custom Logo Sets the selected image as the projector logo.
-
Page 66: Music
Music Enjoy music files saved on a USB memory device or the projector's internal memory. Menu displayed from the Music List screen. The Music List screen. The Menu below appears when you press the [MEDIA.P] button while displaying the Music List screen. •... - Page 67 Depending on the current language setting, the music file information [ ] may appear corrupted. If that is the case, press the [MENU] button and change the language in <Language> under <Option>. MENU ITEM DESCRIPTION Play Mode • <All music> : Plays all available music files. •...
-
Page 68: Movie
Movie Enjoy video files saved on a USB memory device or in the projector's internal memory. Menu displayed from the Movie List screen The Movie File screen. The Menu below appears when you press the [MEDIA.P] button while displaying the Movie List screen. •... - Page 69 Using the remote control while playing video MEDIA.P :Open the video menu • • : Play the previous or next video file • : Pause or resume playing video • : Return to the previous stage • : View information about the available buttons If you press the [MEDIA.P] button when playing a movie, the following menu appears.
-
Page 70: Settings
Settings Use the ▲/▼/ buttons to move to and access the Setting menus listed below. Media Play Function... - Page 71 <Resized> : Reduce the size of photos according to the optimal screen resolution and then copy. <Open Source License> : To send inquiries and requests for questions regarding open sources, con- tact Samsung via Email (vdswmanager@samsung.com). Preference <Home Background> : Select the image that will be displayed on the main page of the <Media Play>.
-
Page 72: Firmware Update
Before Software Upgrade! 1. Prepare a USB memory device. 2. Download the latest firmware version from the Samsung Electronics website onto your PC. 3. Connect the USB memory device to the PC. 4. Copy the downloaded software to the USB memory device. -
Page 73: Supported File Formats
Supported File Formats Supported File Formats ITEM FILE EXTENSION Document MS Word 97 ~ 2007 ( doc, docx ) Adobe PDF 1.2 ~1.7 ( pdf ) MS PowerPoint 97 ~ 2007 ( ppt, pptx ) MS Excel 95 ~2007 ( xls, xlsx ) Text ( txt) Photo JPEG... - Page 74 NAME FILE EXTENSION FORMAT SAMI .smi HTML SubRip .srt string-based SubViewer .sub string-based Micro DVD .sub or .txt string-based Media Play Function...
-
Page 75: Troubleshooting
Troubleshooting Before Requesting Service Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest Samsung Electronics Service Center. Symptoms Troubleshooting Installa- No Power. Check the power cable connections. tion and I want to install my projector on the ceiling. - Page 76 Symptoms Troubleshooting Screen and Cannot see picture images. Be sure that the power cord of the projector is connected. External Be sure that the proper input source is selected. Source Check that the connectors are properly connected to the ports at the back of the projector.
- Page 77 4. If Samsung Projector Manager connection's failure persists, remove and retry installation. I want to remove Samsung Projector Man- Samsung Projector Manager can be removed using the [Add ager. or Remove Programs] option. To remove Samsung Projector Manager in Windows XP, follow these steps : 1.
- Page 78 <Setup>→<Reset>→<Media Play>→<System Reset>. The latest version of firmware can be downloaded from "http://www.samsung.com/". Name of a folder or a file and document con- This can happen when the language of the folder or file differs tents are distorted.
-
Page 79: More Information
More Information Specifications 6-1-1. SP-M206 / SP-M226 / SP-M256 MODEL SP-M206 SP-M226 SP-M256 Panel Size 0.63 inches 3P LCD Resolution XGA (1024 x 768) Aspect ratio 4 : 3 Power Power Consumption 240 W 240 W 260 W (Standby : under 1W) - Page 80 6-1-2. SP-M275 / SP-M305 MODEL SP-M275 SP-M305 Panel Size 0.63 inches 3P LCD Resolution XGA (1024 x 768) Aspect ratio 4 : 3 Power Power Consumption 290 W (Standby : under 1W) Voltage 100~240V AC, 50/60Hz Lamp Power Consumption 220 W Life Time 3,000 Hours ( Eco : 5,000 Hours ) Dimension...
-
Page 81: Rs232C Command Table
RS232C Command Table Communication Format (Complies with the RS232C Standard) • Baud rate : 9,600 bps • parity : None • Data bits : 8, stop bit : 1 • Flow Control : None Serial Communication Protocol 1. Command Packet Structure [7bytes] 0x08 0x22 cmd1... -
Page 82: Command Table
Command Table CONTROL ITEM CMD1 CMD2 CMD3 VALUE General Power Power Display OSD 0x00 0x00 0x00 / Power On Cancel Direct Power Volume Direct 0x01 0x00 0x00 (0~100) Continuous 0x01 Down 0x02 Mute 0x02 0x00 0x00 Blank 0x03 0x00 0x00 Still 0x04 0x00... - Page 83 CONTROL ITEM CMD1 CMD2 CMD3 VALUE Picture Mode Dynamic 0x0B 0X00 0x00 Standard Presentation Text Movie Game User Contrast 0~100 0X02 0x00 (0~100) Brightness 0~100 0X03 0x00 (0~100) Sharpness 0~100 0X04 0x00 (0~100) Color 0~100 0X05 0x00 (0~100) Tint (G/R) G50 / R50 0x06 0x00...
- Page 84 CONTROL ITEM CMD1 CMD2 CMD3 VALUE Picture Gamma -3~3 0x0B 0x0C 0x00 (0~6) Save Display OSD 0x0D 0x00 Cancel Direct Save Reset 0x0E 0x00 Size Normal 0x0F 0x00 Zoom1 Zoom2 16:9 Digital NR 0x10 0x00 Black Level 0 IRE/NOR- 0x11 0x00 7.5 IRE/LOW Overscan...
- Page 85 CONTROL ITEM CMD1 CMD2 CMD3 VALUE Picture Horizontal Continuous LEFT 0x0B 0x1A 0x00 Position RIGHT Vertical Posi- Continuous DOWN 0x1B 0x00 tion Setup Install Front-Floor 0x0C 0x00 0x00 Front-Ceiling Rear-Floor Rear-Ceiling Lamp Mode 0x01 0x00 Bright Keystone V-Keystone -50~50 0x02 0x00 (0~100) Auto Key-...
- Page 86 CONTROL ITEM CMD1 CMD2 CMD3 VALUE Setup Reset Recovery Display OSD 0x0C 0x06 0x02 Mode Cancel Direct Fac- tory Default System Display OSD 0x03 Reset Cancel Direct Reset Filter Time Caption Caption 0x07 0x00 Mode Caption 0x01 Text Channel 0x02 Field 0x03 Network...
- Page 87 CONTROL ITEM CMD1 CMD2 CMD3 VALUE Option Language English 0x0D 0x00 0x00 Deutsch Nederlands Español Français Italiano Svenska Português Русский 中国语 한국어 Türkçe ไทย Menu Option Position LEFT 0x01 0x00 RIGHT DOWN Transpar- High 0x02 0x00 ency Medium Opaque Display Time 5 sec 0x03 0x00...
- Page 88 CONTROL ITEM CMD1 CMD2 CMD3 VALUE Option Sound 100Hz 0x0D 0x04 0x01 Down 300Hz 0x02 Down 1KHz 0x03 Down 3KHz 0x04 Down 10KHz 0x05 Down Filter Check 0x05 0x00 Time Auto Power 0x06 0x00 Sleep Timer 0x07 0x00 10 min 20 min 30 min Information...
-
Page 89: Contact Samsung Worldwide
Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. NORTH AMERICA U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com LATIN AMERICA ARGENTINA 0800-333-3733 http://www.samsung.com... - Page 90 2. 021.206.01.10 – din orice reţea, tarif normal SERBIA 0700 Samsung (0700 726 7864) http://www.samsung.com SLOVAKIA 0800-SAMSUNG (726-7864) http://www.samsung.com SPAIN 902 - 1 - SAMSUNG (902 172 678) http://www.samsung.com SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com SWITZERLAND 0848-SAMSUNG (7267864, CHF 0.08/ http://www.samsung.com/ch min) http://www.samsung.com/ch_fr (French)
- Page 91 UKRAINE 0-800-502-000 http://www.samsung.com/ua http://www.samsung.com/ua_ru UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com ASIA PACIFIC AUSTRALIA 1300 362 603 http://www.samsung.com NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com CHINA 400-810-5858 http://www.samsung.com 010-6475 1880 HONG KONG http://www.samsung.com/hk (852) 3698 - 4698 http://www.samsung.com/hk_en/ INDIA 3030 8282 http://www.samsung.com...
- Page 92 MIDDLE EAST TURKEY 444 77 11 http://www.samsung.com U.A.E 800-SAMSUNG (726-7864) http://www.samsung.com AFRICA NIGERIA 0800 - SAMSUNG (726-7864) http://www.samsung.com SOUTH AFRICA 0860-SAMSUNG (726-7864) http://www.samsung.com More Information...
-
Page 93: Correct Disposal - Europe Only
Correct Disposal - Europe only Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
