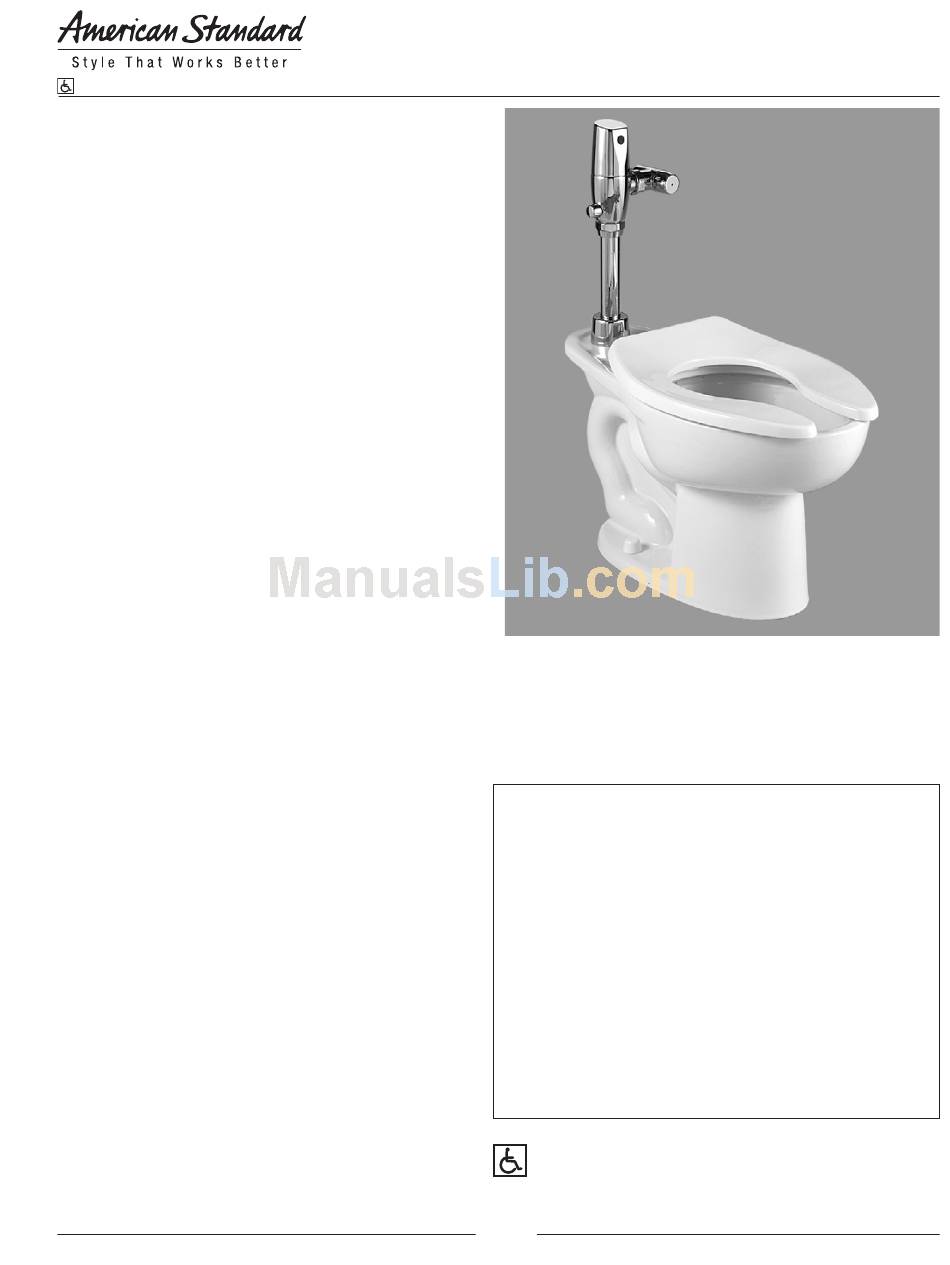

American Standard Madera 3461.160 Specification Sheet

BARRIER FREE
MADERA™ 16-1/2" HEIGHT
• Floor mount flushometer valve toilet
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• EverClean surface inhibits the growth of
®
stain- and odor-causing bacteria, mold,
and mildew on the surface
• 10" or 12" roughing-in
• 16-1/2" rim height for accessible application
• Condensation channel
• Elongated bowl
• Powerful direct-fed siphon jet action
• Fully glazed 2-1/8" trapway
• 10" x 12" water surface area
• 1-1/2" inlet spud
• 2 bolt caps
• 100% factory flush tested
❏ 3461.160 Elongated bowl only, top spud
❏ 3462.160 Elongated bowl only, top spud with
slotted rim for bedpan holding (White only)
❏ 3465.160 Elongated bowl only, top spud
with 4 bolts
❏ 3466.160 Elongated bowl only, top spud
with slotted rim for bedpan holding with 4 bolts
(white only)
❏ 3463.160 Elongated bowl only, back spud
❏ 3464.160 Elongated bowl only, back spud
with slotted rim for bedpan holding (White only)
Component Parts:
❏
047007-0070A Inlet spud (furnished with bowl)
❏
481310-100 Bolt caps with retainers
(furnished with bowl)
Nominal Dimensions:
718 x 356 x 419mm
(28-1/4" x 14" x 16-1/2")
Recommended working pressure–between
25 psi at valve when flushing and 80 psi static
Fixture only, less seat and flush valve
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2 for Vitreous China Fixtures
• CAN/CSA International B45
© 2008 AS America Inc.
MADERA™ 16-1/2" HEIGHT
1.6 GPF FLUSHOMETER TOILET
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Silver ❏ Linen ❏ Black
❏ Seat:
❏ American Standard #5901.100 Heavy duty open
front less cover
❏ American Standard #5905.100 Extra heavy duty
open front less cover
❏ Flushometer Valve:
❏ American Standard Selectronic
DC Power(Top Spud)
❏ American Standard Selectronic
DC Power (Back Spud)
❏ American Standard Selectronic
AC Power (Back Spud)
❏ American Standard Selectronic
Multi AC Power (Back Spud)
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES - CHECK LOCAL CODES.
When installed so top of seat is 432 to 483mm (17" to 19") from the
finished floor.
M57
#6065.161.002
™
™ #6065.261.007
#6067.261.007
™
#6068.261.007
™
Revised 12/08
