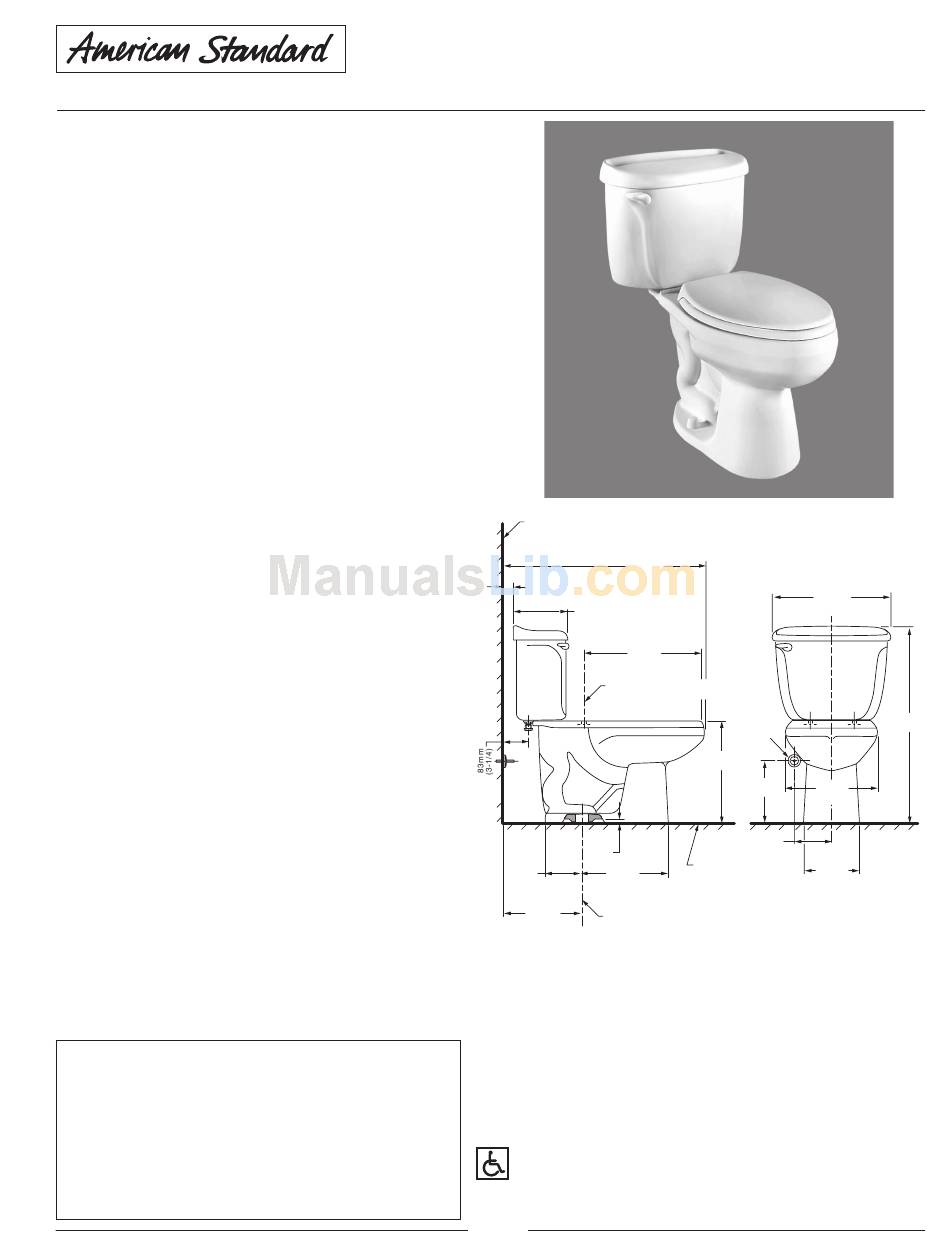

American Standard Cadet 2998.012 Specifications

CADET™ RIGHT HEIGHT™
ELONGATED TOILET
❑
2998.012
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• 16-1/2" rim height for accessible applications
• Elongated siphon action jetted bowl
• AquaForce fl ushing technology
• Fully glazed 2" trapway
• Close-coupled tank with raised lip detail on
tank cover
• Color-matched trip lever
• Speed Connect™ tank/bowl coupling system
• Sanitary bar on bowl
• 2 bolt caps
• 100% factory fl ush tested
❑
3417.016 Bowl
❑
4112.016 Tank
❑
2998.164 with Slotted Rim for Bedpan holding
❑
3417.164 Bowl
❑
4112.016 Tank
Alternate Tank Confi gurations Available:
❑
4112.300 Tank complete with chrome all metal
trip lever
❑
4112.500 Tank complete with Aquagard liner
❑
4112.600 Tank complete with tank cover
locking device
❑
4112.700 Tank complete with Aquagard liner and
tank cover locking device
❑
4112.800 Tank complete with trip lever located
on right side
❑
4112.900 Tank complete with tank cover device
and trip lever located on right side
Nominal Dimensions:
756 x 495 x 813mm (29-3/4" x 19-1/2" x 32")
Fixture only, seat and supply by others
Compliance Certifi cations -
Meets or Exceeds the Following Specifi cations:
• ASME A112.19.2M for Vitreous China Fixtures -
includes Flush Performance, Ball Pass Diameter,
Trap Seal Depth and all Dimensions
To Be Specifi ed:
❏ Color:
❏ Seat: American Standard #5324.019 "Rise and
Shine" solid plastic closed front, seat with cover.
❏ Seat: American Standard #5311.012 "Laurel"
molded closed front seat with cover.
❏ Alternate Seat:
❏ Supply with stop:
© 2006 American Standard Inc.
CADET™ RIGHT HEIGHT™
ELONGATED TOILET
FINISHED WALL
756mm
(29-3/4)
19mm ± 6mm
(3/4 ± 1/4)
225mm
(8-7/8)
470mm
(18-1/2)
C/L OF SEAT POST HOLES
140mm (5-1/2 CENTERS)
16mm
(5/8)
178mm
311mm
(7)
(12-1/4)
305mm
C/L OF OUTLET
(12)
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of fi xtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND
ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES-CHECK LOCAL CODES.
K53
VITREOUS CHINA
495mm
(19-1/2)
SUPPLY
AS
REQ'D
419mm
(16-1/2)
*
254mm
375mm
(10)
(14-3/4)
152mm
(6)
FINISHED
FLOOR 235mm
(9-1/4)
Revised 5/05
813mm
(32)
