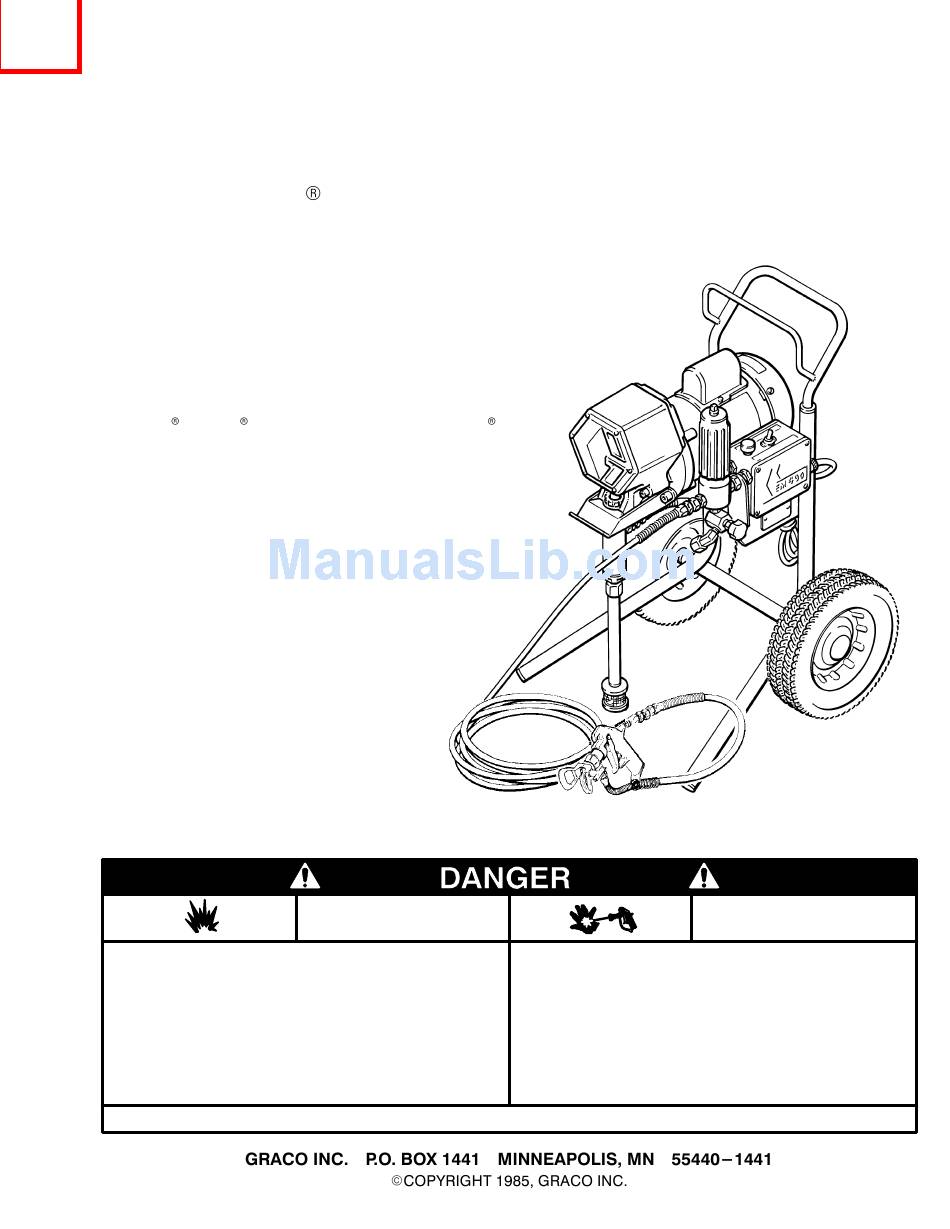

INSTRUCTIONS-PARTS LIST
EM 490
PORTABLE/ELECTRIC
AIRLESS PAINT SPRAYER
2750 psi (190 bar) MAXIMUM WORKING PRESSURE
Model 231-002, Series C
Basic sprayer, without hose or gun
Model 231-490
Complete sprayer with hose, "FLEX" gun, Reverse-A-
Clean IV Dripless Tip Guard, and 517 size SwitchTip
Model 220-679, Series C
Same as Model 231-002 except has low-profile cart.
Model 231-050
Same as Model 231-490 except has low-profile cart.
CONTENTS
Warnings
English
. . . . . . . . . . . . . . . . . . . . . . . . .
French (Avertissement)
. . . . . . . . . .
Spanish (Advertencia)
. . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Lists and Drawings
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
NOTE: This is an example of the DANGER label on your sprayer.
This label is available in other languages, free of charge.
See page 30 to order.
Spray painting, flushing or cleaning equipment with flammable liq-
uids in confined areas can result in fire or explosion.
Use outdoors or in extremely well ventilated areas. Ground equip-
ment, hoses, containers and objects being sprayed.
Avoid all ignition sources such as static electricity from plastic drop
cloths, open flames such as pilot lights, hot objects such as ciga-
rettes, arcs from connecting or disconnecting power cords or turn-
ing light switches on and off.
Failure to follow this warning can result in death or serious injury.
READ AND UNDERSTAND ALL LABELS AND INSTRUCTION MANUALS BEFORE USE
This manual contains IMPORTANT
WARNINGS and INFORMATION
READ AND RETAIN FOR REFERENCE
2
4
6
8
19
11
12
13
14
16
. . . . . . . .
24
30
. . . .
31
Back Cover
FIRE AND
EXPLOSION HAZARD
Liquids can be injected into the body by high pressure airless spray
or leaks - especially hose leaks.
Keep body clear of the nozzle. Never stop leaks with any part of the
body. Drain all pressure before removing parts.Avoid accidental trig-
gering of gun by always setting safety latch when not spraying.
Never spray without a tip guard.
In
case
of
accidental
skin
"Surgical Treatment".
Failure to follow this warning can result in amputation or serious
injury.
307-735
Rev G
Supersedes F
Model 231-490 shown
SKIN INJECTION
HAZARD
injection,
seek
immediate
