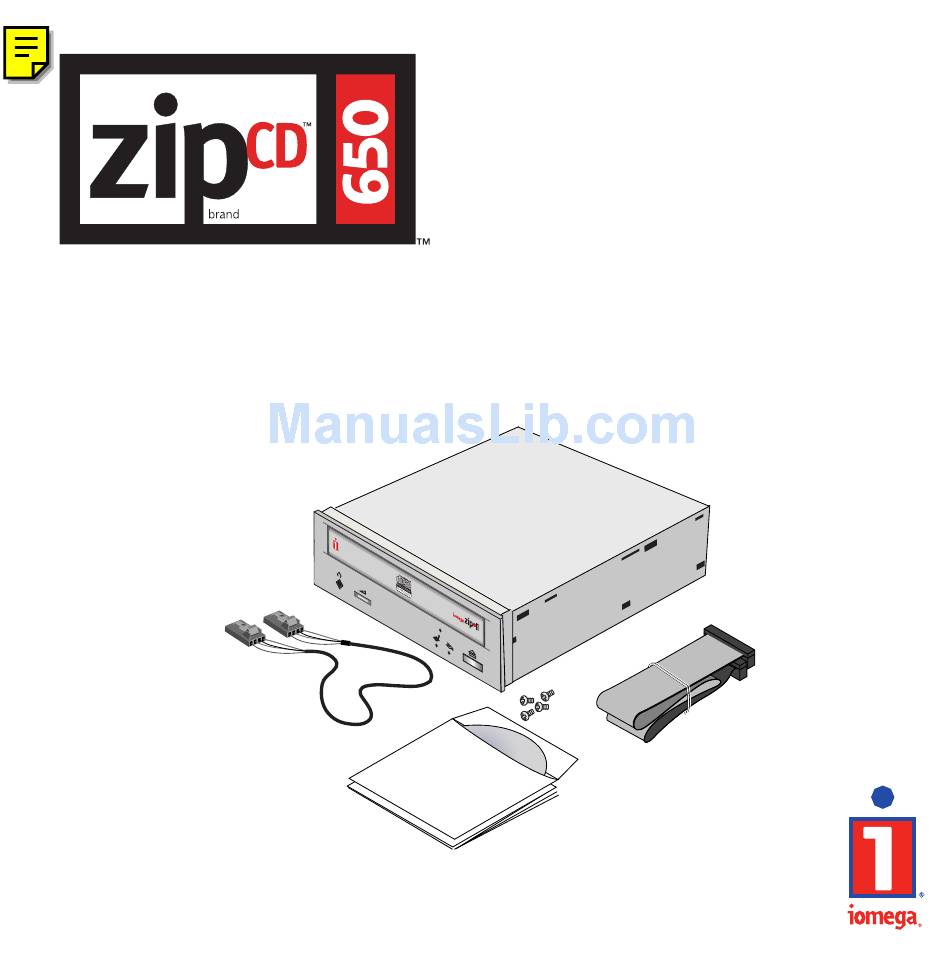

- Page 1 ™ Internal ZipCD ATAPI Drive PC Quick Install...
- Page 3 Start your computer, wait for the operating system to load, ™ then insert the ZipCD software disc. Select “Print Installation Instructions” to view and print detailed installation instructions. See step 12 for information about viewing the manual. ™ Select “Install ZipCD Software”...
- Page 4 If necessary, change the ZipCD ™ drive jumper setting 1. ™ Leave the setting in the Slave position if you are connecting the ZipCD drive on the same data cable with another device. Use the Master setting if the ZipCD drive will be the only device on the secondary IDE channel. Do not use Cable Select unless your computer supports this mode.
- Page 5 Shut down the computer, disconnect the power cord and remove cover. CAUTION! Always turn off power to the computer and all devices connected to it before beginning any computer hardware change. NOTE: Locate and write down the drive serial number for your drive.
- Page 6 Select the IDE interface connection you want to use. ™ Connect the ZipCD drive to the secondary IDE channel either in slave configuration with another drive as master (e.g. CD-ROM) or in master configuration as the only device. If you are unsure about the connection, see step 11 to view and print the detailed instructions.
- Page 7 Locate a vacant 5.25” drive bay. Remove the panel cover and slide the ZipCD ™ drive into the drive bay. Some computers may require rails. Check your documentation. NOTE: If it makes it easier to connect cables on your computer, you can secure the ZipCD ™...
- Page 8 ZipCD Pin 1 40 Pin Pin 1 ™ Connect the ZipCD drive to the computer’s IDE connection using an IDE data cable. NOTE: You can use either the cable included with the drive or an IDE cable that may already be connected to the computer’s motherboard. CAUTION! Make sure PIN 1 on the cable connects to PIN 1 on the ZipCD ™...
- Page 9 Skip this step if the computer’s CD-ROM drive is already connected to the computer’s audio in port. ™ Connect the audio cable to the ZipCD drive and the computer’s audio connector, usually located on the sound card or the motherboard. Check your sound card documentation or your system’s documentaton and the User’s Manual for more detailed instructions.
- Page 10 Connect a computer power supply cable. You may need a Y-cable if your system’s power cable does not have a free connector. CAUTION! Make sure the power supply cable is securely connected to the ZipCD ™ drive.
- Page 11 Secure the drive in the drive bay if needed. If there is not a clear access to the drive bay mounting holes, refer to your computer manual for additional instructions. ™ CAUTION! Mounting screws must not extend into the ZipCD drive farther than 6.0 mm (about 0.25 inch).
- Page 12 Check all connections, arrange the cables to fit under the cover, and replace the computer cover. Reconnect the power cord, turn on the power switch, and wait for the ™ operating system to load. Because the ZipCD drive is plug-and-play, you will not see “New Hardware Detected”...
- Page 13 Congratulations! Your ZipCD ™ drive is ready to use. ™ Write to CDs with your ZipCD drive using either CD-R or CD-RW media. Use CD-R media for playing the CD on other computers and stereos. Use CD-R media for writing once. Use CD-RW media to rewrite multiple times.
- Page 14 For detailed information about the ZipCD ™ drive, view the User’s Manual HTML on the ZipCD software disc. ® To view the User’s Manual on the CD, you must have Microsoft Internet ® ™ Explorer 3.0 or higher or Netscape Navigator 4.5 or higher installed on your system.
- Page 15 The User’s Manual includes a complete list of worldwide support options! Iomega Web Site http://www.iomega.com Iomega Web Support Site http://www.iomega.com/support Customer Support (U.S. & Canada) 1-888-4-IOMEGA (1-888-446-6342)
- Page 16 Roy, UT 84067 U.S.A. 801-332-1000 Copyright © 2000 Iomega Corporation. Iomega, the stylized “i” logo, ZipCD, and the ZipCD brand block are either registered trademarks or trademarks of Iomega Corporation in the United States and/or other countries. Microsoft, Windows, and NT are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
