Alcatel-Lucent OmniAccess AP 70 Technical Specifications

Alcatel-Lucent OmniAccess AP 70
D U A L - R A D I O A C C E S S P O I N T A N D R F M O N I T O R

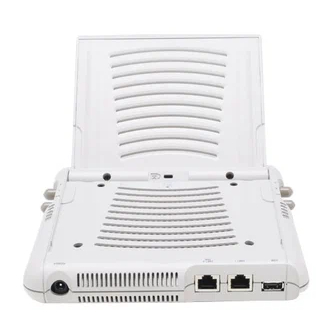

The Alcatel-Lucent OmniAccess AP70 (OAW-AP70) is a dual-radio access point that provides concurrent operation of
802.11a and 802.11b/g services. The OAWAP70 is a multi-purpose device that can function both as an access point
and as an RF monitor—independently or concurrently—across the 2.4 GHz and 5 GHz spectrums. Ideally suited for
workspace deployment, the OAW-AP70 can be securely wall or desk-mounted.
T E C H N I C A L
Integral Antenna
The OAW-AP70 an integral, diversity-supporting
dual, tri-band omni-directional high-gain
antenna with 180º degrees movement.
The antenna gains are:
• 2.4-2.5 GHz: 4.46 dBi
• 5.150 GHz: 7.21 dBi
• 5.350 GHz: 6.49 dBi
• 5.850 GHz: 5.23 dBi
External Antenna Interfaces
Quad (2 x 2.4GHz and 2 x 5GHz), diversity sup-
porting reverse polarity SMA (RP-SMA) antenna
interfaces suitable for a wide array of detachable
antennas of various pattern types and gains.)
Radio Specifications- 802.11a
• Frequency bands
¬ 5.150 ~ 5.250 GHz (lower band): 4 channels
¬ 5.250 ~ 5.350 GHz (middle band): 4 channels
¬ 5.500 ~ 5.700 GHz (ETSI band): 11 channels
¬ 5.725 ~ 5.825 GHz (higher band): 4 channels
• Radio technology: orthogonal frequency
division multiplexing (OFDM)
• Modulation type - BPSK, QPSK, 16-QAM,
64-QAM
• Transmit power – configurable by system
administrator/professional installer
• MAC – CSMA/CA with ACK
• Operating channels:
¬ US and Canada: 8 external antenna /
12 internal antenna
¬ ETSI: up to19
¬ Japan: 4
• Data rates: 6, 9, 12, 18, 24, 36, 48, 54
Mbps per channel
S P E C I F I C A T I O N S
Radio Specifications- 802.11b
• Frequency band
¬ 2.4 ~ 2.483 GHz (US, Canada and ETSI)
¬ 2.4 ~ 2.497 GHz (Japan)
• Radio technology – direct sequence spread
spectrum (DSSS)
• Modulation type - CCK, BPSK, QPSK
• Transmit power – configurable by system
administrator
• MAC – CSMA/CA with ACK
• Operating channels:
¬ US and Canada: 11
¬ ETSI: 13
¬ Japan: 14
• Data rates: 1, 2, 5.5, 11 Mbps per channel
Radio Specifications- 802.11g
• Frequency bands
¬ 2.412 ~ 2.462 GHz (USA, Canada)
¬ 2.412 ~ 2.472 GHz (ETSI)
¬ 2.412 ~ 2.484 GHz (Japan)
• Radio technology - OFDM
• Modulation type – CCK, BPSK, QPSK, 16-
QAM, 64-QAM
• Transmit power – configurable by system
administrator
• MAC – CSMA/CA with ACK
• Operating channels:
¬ US and Canada: 11
¬ ETSI: 13
¬ Japan: 14
• Data rates: 6, 9, 12, 18, 24, 36, 48, 54
Mbps per channel
