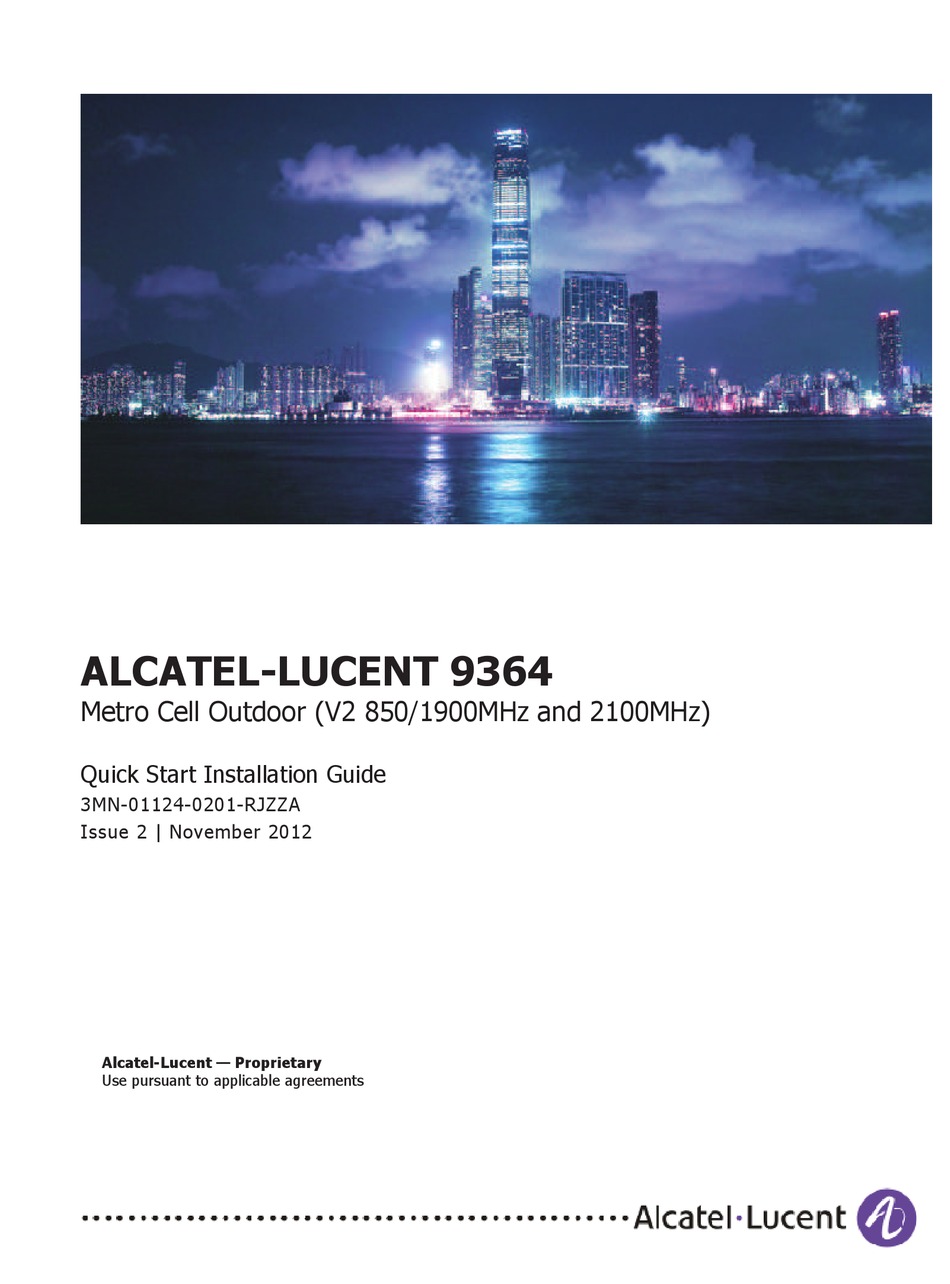

- Page 1 $/&$7(//8&(17 0HWUR &HOO 2XWGRRU 9 0+] DQG 0+] 4XLFN 6WDUW ,QVWDOODWLRQ *XLGH 015-==$ ,VVXH _ 1RYHPEHU $OFDWHO/XFHQW ² 3URSULHWDU\ 8VH SXUVXDQW WR DSSOLFDEOH DJUHHPHQWV...
- Page 2 6DIHW\ *HQHUDO SUHFDXWLRQV IRU LQVWDOODWLRQ SURFHGXUHV Read and understand all instructions. • Follow all warnings and instructions marked on this product. • Installation and maintenance procedures must be followed and performed by trained • personnel only. The equipment must be provided with a readily accessible disconnect device as part •...
-
Page 3: About This Document
4XLFN VWDUW LQVWDOODWLRQ ABOUT THIS DOCUMENT 3XUSRVH The purpose of this document is to provide quick start hardware installation instructions for the Alcatel-Lucent 9364 Metro Cell Outdoor (V2 850/1900MHz and 2100MHz). 5HODWHG LQIRUPDWLRQ 5HIHU WR WKLV GRFXPHQW $W WKLV ORFDWLRQ ... -
Page 4: Pre-Installation Information
• Pole/Wall mounting kit (excluding collar kit) • Note: The Alcatel-Lucent 9364 Metro Cell - Outdoor 1900/850 MHz variant interface panel will have a SMA connector for external GPS antenna and additional LEDs. 9DULDEOH SDUWV DQG DQFLOODU\ LWHPV In addition to the standard delivered parts the following variable and ancillary items are... - Page 5 9364 Metro Cell Outdoor Quick Start Installation Guide Overcasing kit (optional cosmetic cover to conceal the unit mounted) • 9HULI\ VLWH SUHSDUDWLRQ The following site preparation requirements should be checked and met before the installation of the V2 Metro Cell Outdoor can begin. If some of the requirements are not...
- Page 6 9364 Metro Cell Outdoor Quick Start Installation Guide To mount the hardware to a wall 3XUSRVH This topic describes the procedures to be followed when installing the Metro Cell Outdoor onto a solid concrete wall. Important! The Metro Cell Outdoor weighs less than 2kg (4.41 lbs) and can be easily mounted onto any flat, sturdy wall, either directly, or by using the wall mounting kit (in circumstances where the device needs to be mounted away from the wall).
- Page 7 9364 Metro Cell Outdoor Quick Start Installation Guide To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe work practices and wear appropriate fall protection equipment. 6WHSV To mount the device onto a wall or flat surface, perform the following steps.
- Page 8 9364 Metro Cell Outdoor Quick Start Installation Guide Attach the device to the wall mounting bracket using the supplied screws or directly onto the wall using appropriate screw fixings. Note: Depending on the wall the device is to be mounted onto, different screw fixings might be needed.
- Page 9 9364 Metro Cell Outdoor Quick Start Installation Guide 7R PRXQW WKH KDUGZDUH WR D SROH 3XUSRVH This topic describes the procedures to be followed when installing the Metro Cell Outdoor onto a pole. The Metro Cell Outdoor is less than 2kg (4.41 lbs) and can be easily mounted on a pole (48mm to 114mm in diameter) using the supplied pole mounting kit.
- Page 10 9364 Metro Cell Outdoor Quick Start Installation Guide Tip: In order to limit the amount of solar radiation on the Metro Cell when the device is pole mounted, it is recommended to orientate the Metro Cell in northerly direction. With this orientation the pole mounting bracket acts as a solar shield.
- Page 11 9364 Metro Cell Outdoor Quick Start Installation Guide 0HWUR &HOO 2XWGRRU FDEOLQJ 3XUSRVH This topic describes the procedures to be followed when connecting the Metro Cell Outdoor cables. Important! The following must be observed: Equipment installation and cabling should only be carried out by suitably trained and •...
- Page 12 9364 Metro Cell Outdoor Quick Start Installation Guide &RQQHFW WKH JURXQG FDEOH Note: As part of the site preparation the installation location (wall/pole) must be grounded • in accordance with local regulatory guidelines All grounding system material (cable, connectors, etc.) must be of high quality, that •...
- Page 13 9364 Metro Cell Outdoor Quick Start Installation Guide &RQQHFW WKH (WKHUQHW FDEOH Note: The maximum Ethernet cable length (Metro Cell to DSL Router with PoE + function) should be 100m. 6WHSV To attach the Ethernet cable, perform the following steps.
- Page 14 9364 Metro Cell Outdoor Quick Start Installation Guide $*36 DQWHQQD FDEOH FRQQHFWLRQ 0+] RQO\ The Alcatel-Lucent 9364 Metro Cell Outdoor 1900/850 MHz has Assisted GPS capability for localization of the unit. An SMA connector is provided for the connection of an external GPS antenna. The GPS antenna cable can be routed around the back of the unit and, using the GPS antenna bracket and support plate, attached to the Metro Cell as shown.
- Page 15 1900MHz systems and in 47CFR22.917 (FCC part 22) for 800MHz systems. RSS-132, RSS-133 and RSS-GEN for the Canadian market (QYLURQPHQWDO RSHUDWLRQ FRQGLWLRQV ETS 300 019-1-4 class 4.1 Ingress Protection Rating of the 9364 Metro Cell Outdoor enclosure conforms to IP65 (according to IEC 60529) Parameter Value Operating temperature range -33°...
- Page 16 Health standard: OET (Office of Engineering & Technology) Bulletin 65 and RSS-102 (for Canada only)RSS-132, RSS-133 and RSS-GEN for the Canadian market (QYLURQPHQWDO VWDQGDUGV The 9364 Metro Cell Outdoor (2100MHz and 850/1900MHz) is compliant with the following environmental standards: Directive 2002/95/EC RoHS6 •...
- Page 17 9364 Metro Cell Outdoor Quick Start Installation Guide Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective owners. The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.
- Page 18 9364 Metro Cell Outdoor Quick Start Installation Guide Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside Alcatel-Lucent without its written authorization. $/&$7(//8&(17 015-==$...
