CHAPTER 4.

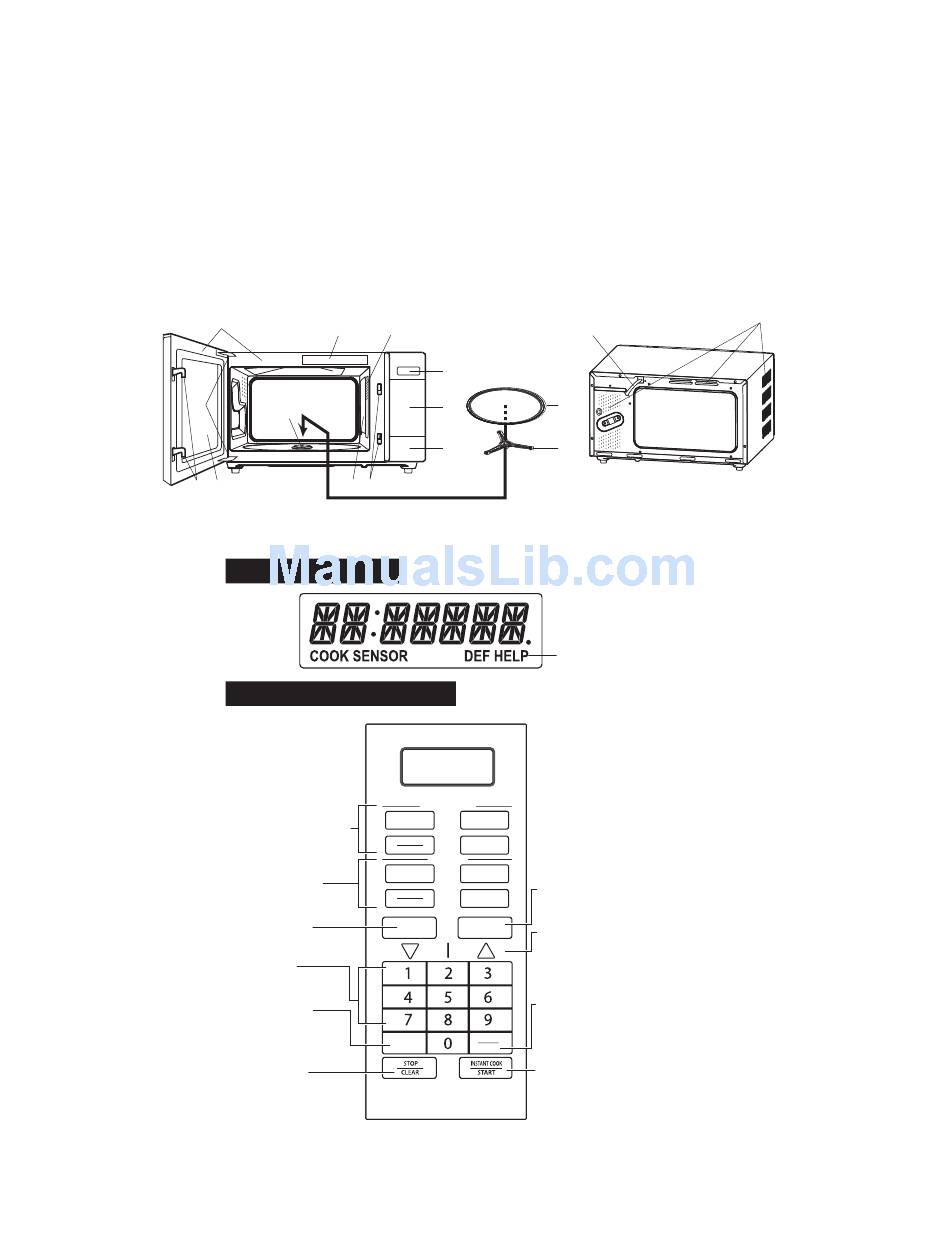

APPEARANCE VIEW
[1] OVEN
1. Door open button
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seal and sealing surfaces
7. Coupling
8. Wave guide cover
6
3
4 5

[2] TOUCH CONTROL PANEL

CONVENIENT MENUS PADS
Press to select Convenient
Menus menus.
SENSOR COOK PADS
Press to select Sensor Cook
menus.
QUICK MEALS PAD
Press to select the Quick
Meals menu.
NUMBER PADS
Press to enter cooking time,
clock time, weight of food.
POWER LEVEL PAD
Press to select microwave
power setting.
If not pressed, HIGH is
automatically selected.
STOP/CLEAR PAD
Press to clear during programming.
Press once to stop operation of
oven during cooking; press twice to
cancel cooking programme.
NOTE: Some one-touch cooking features such as "INSTANT COOK" are disabled after three minutes when the oven is not in use.
These features are automatically enabled when the door is opened and closed or the STOP/CLEAR pad is pressed.
2
15
7
4
8
Control Panel Display
Touch Control Panel Layout
1200 WATTS
EXPRESS
DEFROST
MELT
SOFTEN
FRESH
VEGETABLES
RICE
PASTA
QUICK
MEALS
LESS
POWER
LEVEL
9. Touch control panel
10.Liquid crystal display
11. Ventilation openings
12.Power supply cord
13.Turntable
14.Roller stay
15.Menu label
12
10
9 13
1
14
Indicators
CONVENIENT MENUS
EASY
DEFROST
SENSOR
REHEAT
SENSOR COOK
FROZEN
VEGETABLES
EASY MEALS PADS
JACKET
Press to select the Easy
POTATO
Meals menu
EASY
MEALS MORE, LESS PADS
Press to increase/decrease the
MORE
time in one minute increments
during cooking or to alter the
cooking result for the automatic
operations.
INFO/TIMER PAD
Press to select demonstration mode,
child lock, clock, auto start, info
on pads or timer. Press to see the
INFO
TIMER
cooking information.
INSTANT COOK/START PAD
Press to start oven after setting
programmes.
Press once to cook for 1 minute
at HIGH or increase by 1 minute
multiples by pressing numerous
times during cooking.
4 – 1
R-350Y(S)
