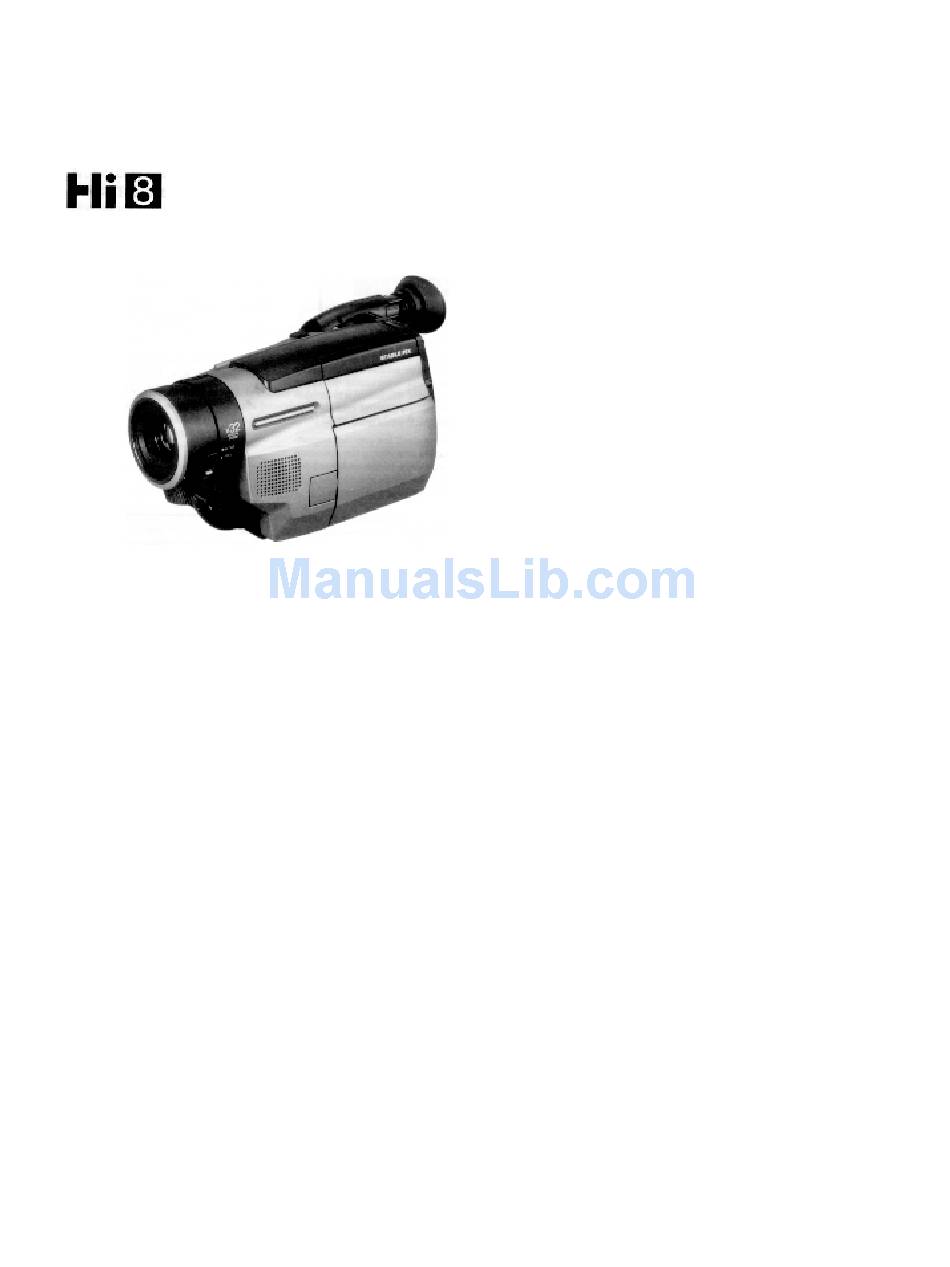

Important Safety Information
HITACHI

Instruction Manual

8mm Video Camcorder
VM-H835LA
HITACHI HOME ELECTRONICS
(AMERICA), INC.
3890 Steve Reynolds Blvd., Norcross, GA 30093
Tel. 770-279-5600
HITACHI SALES CORPORATION OF
HAWAII, INC
3219 Koapaka Street, Honolulu, Hawaii 96819
Tel. 808-836-3621
Thank you for buying a Hitachi product. Please take time to become familiar with the manual
and how it is set up. Keep it handy for future reference.
QR17262 © Hitachi, Ltd. 1997
HITACHI (HSC) CANADA INC.
6740 Campobello Road
Mississauga, Ontario L5N 2L8
CANADA
Tel. 905-821-4545
Printed in Japan KN-S(N)
1
