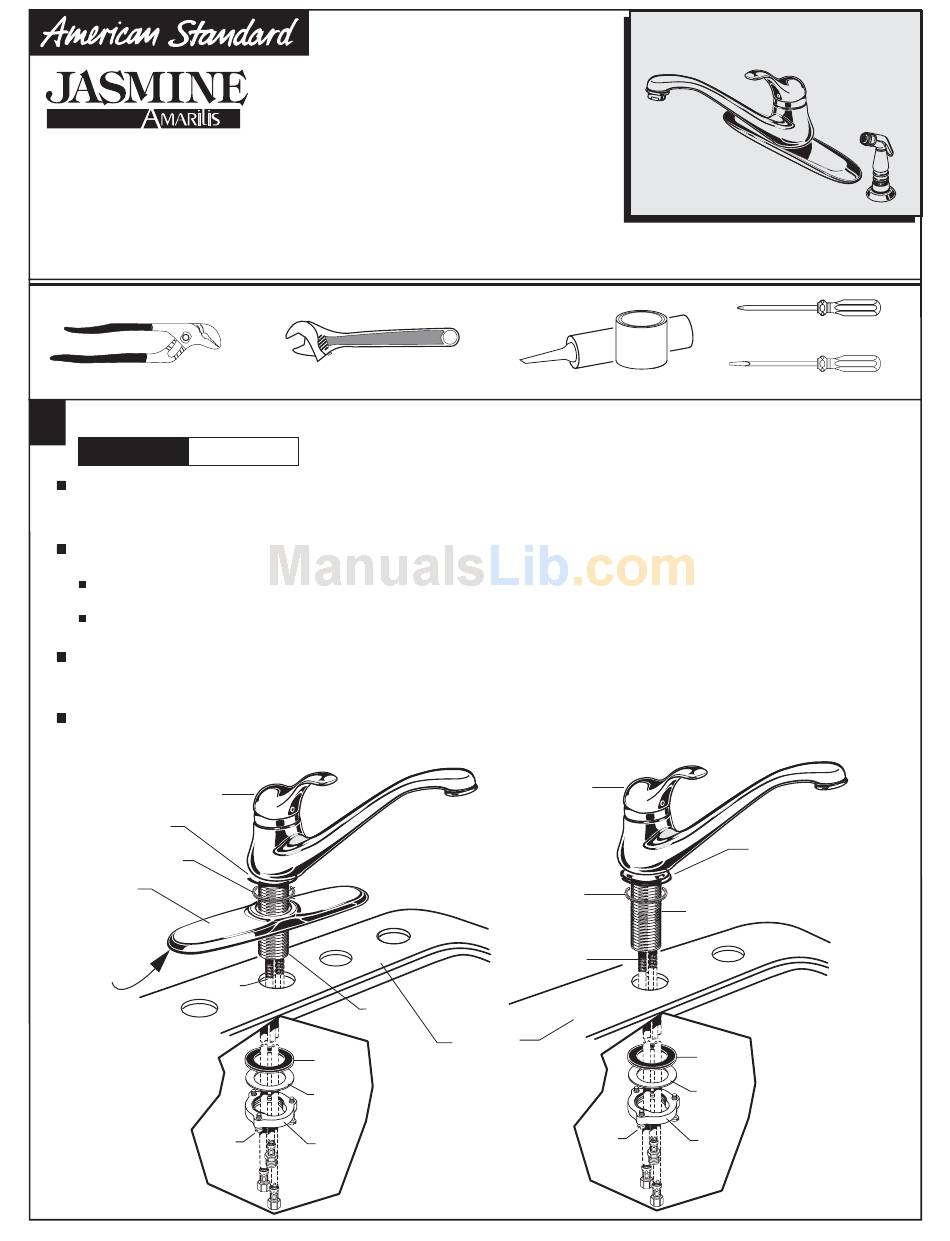

SINGLE CONTROL KITCHEN
FAUCET AND CAST SPOUT
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
TOOLS REQUIRED
Channel Locks
1
INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON
Turn off water at
CAUTION
main supply.
(A) Installation with ESCUTCHEON (1). Apply a bead of putty to bottom edge of ESCUTCHEON (1). Insert supply
HOSES (3) and SHANK (4) through hole of ESCUTCHEON (1) and mounting surface. Make certain the O-RING (2)
is properly seated in recess of SPOUT BASE. Follow mounting instructions below to secure faucet to mounting surface.
(B) Installation less ESCUTCHEON (1). Remove ESCUTCHEON (1) , feed FAUCET HOSES (3) and SHANK (4) through
DECORATIVE FLANGE (10). Push FLANGE (10) so the raised step fits into recess of SPOUT BASE.
Push O-RING (11) onto SPOUT SHANK (4). Make certain the O-RING (11) is properly seated in recess of DECORATIVE
FLANGE (10).
Insert SUPPLY HOSES (3) and SHANK (4) through mounting hole and seat DECORATIVE FLANGE (10) onto sink or
mounting surface.
Assemble RUBBER WASHER (5), BRASS WASHER (6), and threaded LOCKNUT (7) onto SHANK (4) from underside
of sink or mounting surface. Hand tighten LOCKNUT (7) and check that rotation of HANDLE (8) from HOT to COLD
is centered.
Use a screwdriver to tighten SCREWS (9) on LOCKNUT (7). Work your way around LOCKNUT (7), tightening
the screws slightly each time until all are snug to ensure even pressure.
8
S P O U T B A S E
2
1
P U T T Y
Adjustable Wrench
A
3
4
5
6
9
7
Installation
Instructions
3821.6XX
Plumbers' Putty or Caulking
8
11
3
S I N K O R
M O U N T I N G
S U R FA C E
9
Certified to comply with ANSI A112.18.1M
M 9 6 8 1 8 8 R E V . 1 . 1
Phillips Screwdriver
Phillips Screwdriver
Regular Screwdriver
B
10
4
5
6
7
