High-speed, 1-needle, cylinder-bed, needle-feed, lockstitch machine with large hook; high-speed, 1-needle, cylinder-bed, needle-feed, lockstitch machine with automatic thread trimmer and large hook (52 pages)
Page 1

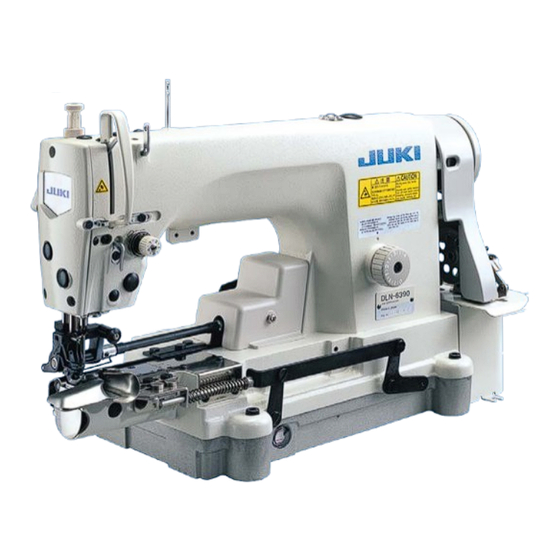

DLN-6390 DLN-6390-7 (with automatic thread trimmer) High-speed, Cylinder-bed, 1-needle, Needle-feed Lockstitch Machine with Large Hook The last word in cylinder-bed lockstitch machines, intended for bottom hemming processes for jeans, casual pants and work uniforms has been launched. DLN-6390S DLN-6390S DLN-6390S DLN-6390S-7- W0 DLN-6390 Series High-speed, Cylinder-bed, 1-needle, Needle-feed Lockstitch Machine with Large Hook...
Page 2
This newest and most advanced machine has be This newest and most advanced machine has be This newest and most advanced machine has be quality and improved workability in bottom hem quality and improved workability in bottom hem quality and improved workability in bottom hem The machine offers excellent seam quality Highly consistent and reliable thread and sewing capabilities.
Page 3
It can be interchanged with other gears supplied with the machine to support four different feed amounts. Top gear Bottom gear Feed pitch Remarks JUKI part No. Engraved marker JUKI part No. Engraved marker 4.2mm (6 stitch/inch) 300-37600 63949-47...
Driven by air cylinder Compressed air and –– 0.5MPa (0.5kgf/ ), 10N /min air consumption Lubrication JUKI New Defrix Oil No.1 (equivalent to ISO VG7) Cylinder-bed diameter 180mm Weight of the machine head 34.5kg 36.5kg ✽ Pulley sizes are described in the Instruction Manual.
