Sharp GX-CD1300MP MK2 Operation Manual

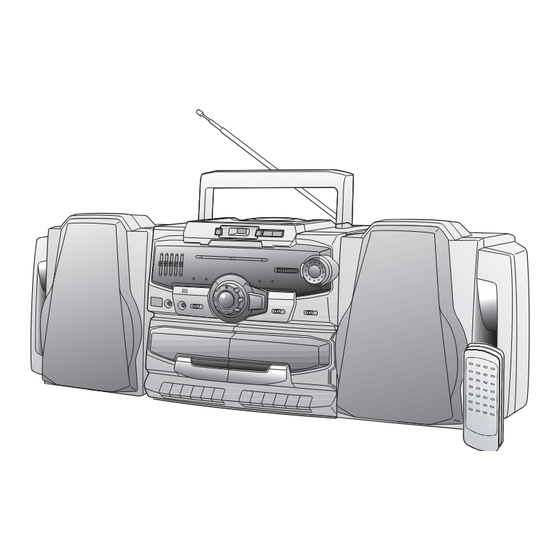

Portable video cd stereo component system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
PORTABLE VIDEO CD STEREO
COMPONENT SYSTEM
MINI-CHAÎNE STÉRÉO PORTATIVE
À COMPOSANTES AUDIO ET VIDÉO
SISTEMA STEREO DE VIDEO CD
PORTÁTIL
MODEL
MODÈLE
MODELO
GX-CD1300MP MK2
OPERATION MANUAL
MODE D'EMPLOI
MANUAL DE OPERAÇÃO
NTSC/PAL
Thank you for purchasing this SHARP product. To obtain the best
performance from this product, please read this manual carefully. It will
guide you in operating your SHARP product.
Nous vous remercions d'avoir porté votre choix sur ce produit SHARP.
Pour en tirer le meilleur parti, veuillez lire ce mode d'emploi très
attentivement. Il vous guidera dans l'utilisation de votre produit SHARP.
Parabéns por comprar este produto SHARP. Para obter o melhor
desempenho deste produto, por favor leia este manual cuidadosamente.
Ele mostrará como operar seu produto SHARP.
ENGLISH
Please refer to pages E-1 to E-36.
FRANÇAIS
Se reporter aux pages F-1 à F-36.
Favor consultar as páginas P-1 a P-36.
PORTUGUÊS

Advertisement

Table of Contents
loading

Related Manuals for Sharp GX-CD1300MP MK2

Summary of Contents for Sharp GX-CD1300MP MK2

  • Page 1 Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product. Nous vous remercions d’avoir porté votre choix sur ce produit SHARP.

  • Page 2: Special Notes

    ENGLISH GX-CD1300MP Special notes ENGLISH Supply of this product does not convey a license nor imply any right Note: to distribute content created with this product in revenue-generating Audio-visual material may consist of copyrighted works which must broadcast systems (terrestrial, satellite, cable and/or other not be recorded without the authority of the owner of the copyright.

  • Page 3: Table Of Contents

    Accessories Contents GX-CD1300MP ENGLISH Please confirm that the following accessories are included. Page ■ General Information Precautions ......... 3 Controls and indicators .

  • Page 4: Precautions

    Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than...

  • Page 5: Controls And Indicators

    Controls and indicators GX-CD1300MP ENGLISH ■ Reference page 1. Disc Compartment ....... 14, 22 2.

  • Page 6: Rear Panel

    Controls and indicators (continued) GX-CD1300MP ENGLISH ■ Rear panel Reference page 1. FM/SW Telescopic Rod Aerial ..... . . 26 2.
  • Page 7 GX-CD1300MP ENGLISH ■ Remote control Reference page 1. PBC Button ........16 2.

  • Page 8: System Connections

    System connections GX-CD1300MP ENGLISH ■ ■ Detachable speakers TV/Monitor connection If the TV/monitor has a video input, connect it to VIDEO OUT socket on the rear of the unit. To video input socket VIDEO OUT Video cable ● Set the FUNCTION switch to STAND-BY before connecting or Note: disconnecting the speakers.
  • Page 9 GX-CD1300MP ENGLISH ■ Speaker connection Connect each speaker wire to the SPEAKER terminals as shown. Use speakers with an impedance of 6 ohms or more, as lower impedance speakers can damage the unit. Left speaker Right speaker To AC INPUT To the wall socket AC 110V AC 220V...

  • Page 10: System Connections

    System connections (continued) GX-CD1300MP ENGLISH ■ AC plug adaptor ■ Operation with batteries In areas (or countries) where an AC socket as shown in illustration 2 is used, connect the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC plug adaptor is not included in areas where the AC wall socket and AC power plug can be directly connected (see illustration 1).

  • Page 11: Remote Control

    Remote control GX-CD1300MP ENGLISH ■ Battery installation Notes concerning use: ● Replace the batteries if the operating distance is reduced or if the 1 Open the battery cover. operation becomes erratic. Purchase 2 “AA” size batteries 2 Insert the supplied batteries according to the direction (UM/SUM-3, R6, HP-7 or similar).

  • Page 12: Sound Control

    Sound control GX-CD1300MP ENGLISH To enjoy the surround effect: Volume X-BASS Set the SURROUND switch to ON. (Continued) X-BASS Graphic equaliser Surround SURROUND Indicator 400Hz 1kHz 4kHz 10kHz Note: The surround effect cannot be obtained from monaural sound ■ Volume control signals.

  • Page 13: Video Cd

    Video CD GX-CD1300MP ENGLISH Any CD that contains motion pictures can be played. ■ Types of discs You can enjoy motion pictures with the sound quality of MDs and This unit handles video CDs that support P.B.C. (version 2.0). the picture quality of VHS tapes. (P.B.C.

  • Page 14: Preparation For Video Cd Playback

    Preparation for video CD playback GX-CD1300MP ENGLISH ■ ■ Adjusting the TV and VCR Selecting the video output format Video CD is recorded in PAL or NTSC format. The TV and VCR input varies according to the connection method. Select the video output format (NTSC or PAL) according to your TV Be sure to make the settings correctly.

  • Page 15: Video Cd Playback

    Video CD playback GX-CD1300MP ENGLISH ■ Playback control: Playback control Video CDs that support “Playback control” can display still pictures. This function can be used with video CD software (video CDs with Set the FUNCTION switch to CD/VCD. playback control) that have a playback method recorded on them. You can select items you want to watch from the menu displayed on the TV screen, or you can show still pictures.
  • Page 16 Video CD playback (continued) GX-CD1300MP ENGLISH To completely stop the video CD: Notes: ● Press the ( ) button twice. Track up/track down and fast forward/fast reverse are possible only within individual discs. After use: ● Operations may be different from the above in the P.B.C. mode. Set the FUNCTION switch to the “TAPE/STAND-BY”...

  • Page 17: Advanced Video Cd Playback

    Advanced video CD playback GX-CD1300MP ENGLISH ■ ■ To play without activating the playback control Normal playback (without P.B.C.) function (Video CD with P.B.C. only) Set the FUNCTION switch to CD/VCD. You can play a video CD with P.B.C. without activating the playback control function.
  • Page 18 Advanced video CD playback (continued) GX-CD1300MP ENGLISH ■ ■ Direct track search To skip to beginning of a track (Skip Search) By using the Direct Search buttons, the desired tracks on the current Load a disc and begin playback (same as CD operation disc can be played.
  • Page 19 GX-CD1300MP ENGLISH ■ Repeat play ■ Scan play All of tracks or a programmed sequence can be continuously repeated. Load a disc and begin playback. Track Hold down the button for fast forward, and hold down number indicator button for fast reverse. ●...
  • Page 20 Advanced video CD playback (continued) GX-CD1300MP ENGLISH ■ ■ Time search selection Disc digest selection You can play back from the desired scene by specifying the time. You can play back a desired track by selecting one from the 9 displayed tracks on the screen.
  • Page 21 GX-CD1300MP ENGLISH ■ ■ Track digest selection Resume play This function is to restart playback from the point where it has Each track is divided into 9 sections. stopped. You can look at the sections and select the scene you want to start watching from.
  • Page 22 Advanced video CD playback (continued) GX-CD1300MP ENGLISH ■ Audio mode switching The audio mode can be changed to STEREO mono L and mono R. VCD TRK 3/10 C 00:01:18 The audio mode function is used when the left and right channels No.

  • Page 23: Cd/Mp3 Playback

    CD/MP3 playback GX-CD1300MP ENGLISH This system can also play audio CD-R and CD-RW discs, but cannot Set the FUNCTION switch to CD/VCD. record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of disc or the device that was used for recording. MP3 disc: MP3 is a form of compression.
  • Page 24 CD/MP3 playback (continued) GX-CD1300MP ENGLISH ■ Repeat play All tracks or a programmed sequence can be continuously repeated. To repeat all tracks: PROGRAM/ PAL/NTSC CLEAR DIGEST Press the ( ) button once. DIRECT ● “ ” will blinking. AUDIO MODE PAUSE VCD/CD ●...
  • Page 25 GX-CD1300MP ENGLISH ■ Direct search play ● The selected track will be played back automatically when By using the Direct Search buttons, the desired tracks can be played. you press the Direct Search buttons whilst playing back. (It is not necessary to press the ( ) button.) Use the Direct Search buttons to select the desired tracks.

  • Page 26: Jpeg/Mpeg Disc Operation

    JPEG/MPEG disc operation CD/MP3 playback (continued) GX-CD1300MP ENGLISH Repeat steps 2 - 3 for any other tracks. Up to 32 tracks can Load a disc containing JPEG and (JPEG 1) 8741 5CE59824A1.JPG 01. JPEG 1 01. 62308741 _ 5 be programmed. MPEG files.

  • Page 27: Listening To The Radio

    Listening to the radio GX-CD1300MP ENGLISH After use: FM STEREO indicator FINE TUNING Set the FUNCTION switch to STAND-BY. Aerial adjustment TUNING MW/SW1 SW1/SW2 POWER indicator BAND FUNCTION SELECTOR FM MONO/FM STEREO ■ Tuning Set the FUNCTION switch to RADIO. ●...

  • Page 28: Listening To A Cassette Tape (Tape 1 Or Tape 2)

    Listening to a cassette tape (TAPE 1 or TAPE 2) GX-CD1300MP ENGLISH ■ TAPE 1 playback (one tape side only) Before playback: ● For playback, use normal or low-noise tapes for Set the FUNCTION switch to TAPE. the best sound. (Metal or CrO tapes are not recommended.) Press the STOP/EJECT button and load a cassette into the...
  • Page 29 GX-CD1300MP ENGLISH To fast wind the tape: Press the STOP/EJECT button, then the FAST button ( ) as POWER / TAPE 2 DIRECTION desired. FUNCTION Caution: When the end of the tape is reached during fast forward/rewind TAPE1 TAPE2 operation, the tape will stop, but the motor will continue to rotate. Press the STOP/EJECT button immediately.

  • Page 30: Recording To A Cassette Tape

    TUNING ● DUBBING SPEED SHARP is not liable for damage or loss of your recording arising FUNCTION from malfunction of this unit. ● The volume and sound controls can be adjusted with no effect BEAT CANCEL on the recorded signal (Variable Sound Monitor).
  • Page 31 GX-CD1300MP ENGLISH ■ ■ Recording from the radio Dubbing from tape to tape Tune in to the desired station. (See page 26) Set the FUNCTION switch to TAPE. Load a cassette into the TAPE 1 cassette compartment. Load a pre-recorded cassette into the TAPE 2 cassette compartment.

  • Page 32: Enhancing Your System

    Enhancing your system GX-CD1300MP ENGLISH Load a blank tape into the TAPE 1 cassette compartment for recording or insert a pre-recorded cassette into the DUBBING FUNCTION VOLUME TAPE 2 cassette compartment. SPEED Adjust the volume of the audio source and the microphone MIX MIC using the VOLUME control.
  • Page 33 GX-CD1300MP ENGLISH ■ ■ Mixing from a microphone and a CD Headphones To listen to or record mixed signals from an external microphone and ● Before plugging in or unplugging the headphones, reduce the volume. ● Be sure your headphones have a 3.5 mm (1/8") diameter plug and To protect the speakers from shock noise and to avoid impedance between 16 and 50 ohms.

  • Page 34: Troubleshooting Chart

    Symptom Possible cause If something is wrong with this product, check the following before calling your authorised SHARP dealer or service centre. ● ● The radio makes unusual Is the unit placed near the TV or noises continuously.

  • Page 35: Maintenance

    Maintenance GX-CD1300MP ENGLISH ■ Internal care ■ If problem occurs ● Dirty heads, capstans or pinch rollers can cause poor sound and When this product is subjected to strong external interference tape jams. Clean these parts with a cotton swab moistened with (mechanical shock, excessive static electricity, abnormal supply commercial head/pinch roller cleaner or isopropyl alcohol.

  • Page 36: Specifications

    Specifications GX-CD1300MP ENGLISH ■ As part of our policy of continuous improvement, SHARP reserves Compact disc player the right to make design and specification changes for product Type Compact disc improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may...
  • Page 37 GX-CD1300MP ENGLISH ■ ■ Tape recorder Speaker section Type 2-way type Frequency response 60 - 10 000 Hz (Normal tape) Speakers 12 cm (4-3/4") Free-edge + Piezo Signal/noise ratio 40 dB speaker x 2 Wow and flutter 0.15% (WRMS) Maximum input power 25 W Motor DC 9 V electric governor Rated input power...
