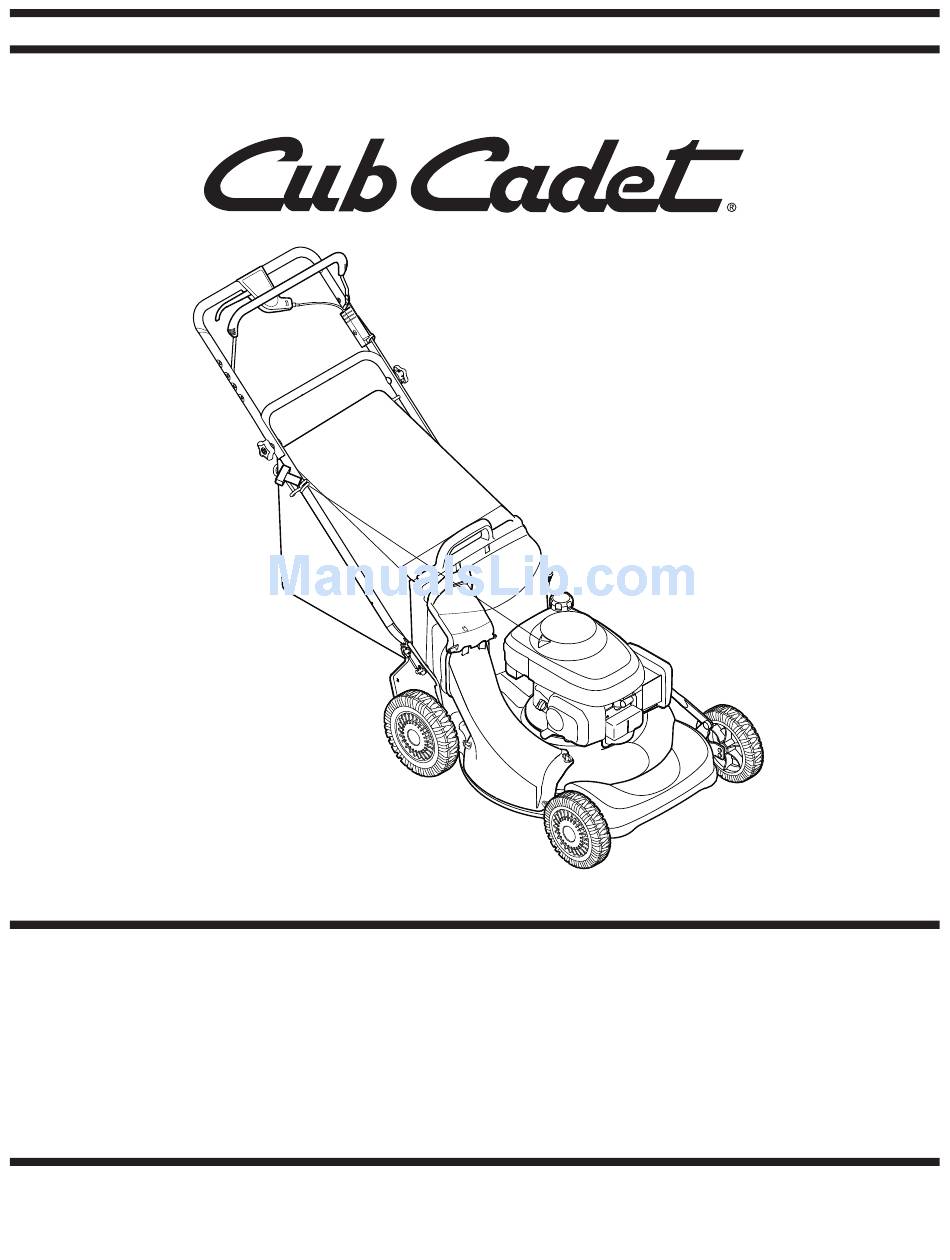

OPERATOR'S MANUAL
21-inch Self-Propelled Mower — Model 949
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
FORM NO. 769-02318
01/05/2006
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading

Summary of Contents for Cub Cadet 949

  • Page 1 (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019. FORM NO. 769-02318 01/05/2006 CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 PRINTED IN U.S.A.
  • Page 2: Table Of Contents

    This information will be necessary to use the manufacturer’s web site and/or obtain assistance from the an authorized service dealer. CUB CADET LLC P. O. BOX 361131 www.cubcadet.com CLEVELAND, OH 44136...
  • Page 3: Slope Gauge

    Use this page as a guide to determine slopes where you may not operate safely. Do not operate your lawn mower on such slopes. Slope Gauge WARNING Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet).
  • Page 4: Safe Operation Practices

    WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo- nents contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm. DANGER: This machine was built to be operated according to the rules for safe operation in this manual.
  • Page 5: Slope Operation

    19. Shut the engine off and wait until the blade comes to a 7. Extinguish all cigarettes, cigars, pipes and other sources complete stop before removing the grass catcher or unclog- of ignition. ging the chute. 8. Never fuel machine indoor because flammable vapors will The cutting blade continues to rotate for a few seconds after accumulate in the area.
  • Page 6: Setup And Adjustment

    1. Remove any packing material which may be between upper and lower handles. a. Pull up and back on upper handle as shown in Figure 3-1. Make certain the lower handle is seated securely into the handle mounting brackets. b. Tighten hand knobs to secure upper handle to Setup and �...
  • Page 7 5. The mower was shipped with the mulching cover installed on the unit. For bagging purposes, you will need to attach the discharge chute and grass bag in place of the mulching baffle. a. Remove three wing nuts holding the mulching cover in place and remove the cover.
  • Page 8: Operating Your Lawn Mower

    Know Your Lawn Mower Operating Your Lawn Mower Recoil Starter Mulch Cover Side Discharge Chute WARNING The blade control is a Figure 4-1: The major components on the mower. safety device. DO NOT attempt to bypass its Now that you have set up your lawn mower, it’s important to become acquainted with its controls and features. operation.
  • Page 9: Starting And Stopping

    WARNING: The operation of any lawn mower can result in foreign objects being thrown into the eyes, which can damage your eyes severely. Always wear safety glasses while operating or maintaining the mower. � Operating Starting and Stopping the Engine Your Lawn WARNING: Be sure no one other than the Mower...
  • Page 10: Maintaining Your Lawn Mower

    Lubrication • Lubricate pivot points on the blade control at least once a season with light oil. The blade control must operate freely in both directions, Figure 5-1. • Lubricate the wheels at least once a season with light oil (or motor oil). If wheels are removed for any Maintaining reason, lubricate the axle bolt and inner surface of the wheel with light oil.
  • Page 11: Blade Care

    Belt Care Blade Care When removing the cutting blade or when WARNING: When removing cutting blade sliding the belt around it, protect your hands for sharpening or replacement, protect your with a pair of heavy gloves. hands with a pair of heavy gloves or use a heavy rag to hold blade.
  • Page 12 8. Loosen the belt keeper bolt and lock nut half a turn, Figure 5-6. 9. Using a pair of pliers, pull back and rotate belt keeper from the slot on the idler bracket, Figure 5-7. 10.Slide the belt out from between the belt keeper and the idler bracket.
  • Page 13 Off-Season Storage The following steps should be taken to prepare your lawn mower for storage. • Clean and lubricate mower thoroughly as described in the lubrication instructions. Do not use a pressure washer or garden hose to clean your unit. Maintaining �...
  • Page 14: Troubleshooting

    Problem Remedy Cause Engine fails to start 1. Blade control disengaged. 1. Engage blade control. 2. Spark plug wire disconnected. 2. Connect wire to spark plug. 3. Fuel tank empty or stale fuel. 3. Fill tank with clean, fresh gasoline. 4.
  • Page 15: Safety Labels

    Safety Labels Found On Your Lawn Mower �� ������ ��� ���� �� ������� �� ��� ������� ������ ��������� ����� �� ����� ������� �� �� ��� ������ ������ �� �������� ������� ������������ Safety Labels WARNING � � � � � � �...
  • Page 16 � �� � �� �� � � �� �� �� � �� �� �� �� �� �� �� �� �� �� � � � �� �� �� �� �� �� � �� �� �� �� �� �� �� �� �� ��...
  • Page 17: Parts List

    647-04008 Lever Assembly 27 731-1832 Side Discharge Chute 710-1270 Machine Screw, 1/4-20 x 1.310 28 747-04451 Belt Keeper Rod 712-04063 Flange Lock Nut, 5/16-18 29 754-0460 V-Belt 726-0240 Cable Tie 30 750-04438A Sleeve Spacer 746-0557 Control Cable, 47-inch 31 731-1833A Mulch Cover Parts List 710-0654A...
  • Page 18 � � � � � �� �� �� � �� � �� �� �� �� �� � �� �� �� �� �� �� � �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��...
  • Page 19 710-0751 HH Cap Screw 1/4-20 x .620 25 10622B Plastic Ratchet Spring 26 738-0137A Shoulder Screw .340x.285x1/4-20 736-0270 Bell Washer .265 x .75 x .062 27 748-0381 PAWL RH 748-0318 Wheel Ratchet 748-0188B PAWL LH 720-0223 Grip 28 16855 Ratchet PAWL Plate 732-0803A Spring Lever Parts List...
  • Page 20: Warranty

    MANUFACTURER’S LIMITED WARRANTY FOR The limited warranty set forth below is given by Cub Cadet LLC with e. Replacement parts that are not genuine Cub Cadet parts. respect to new merchandise purchased and used in the United States, its f. Service completed by someone other than an authorized service possessions and territories.
