Page 1

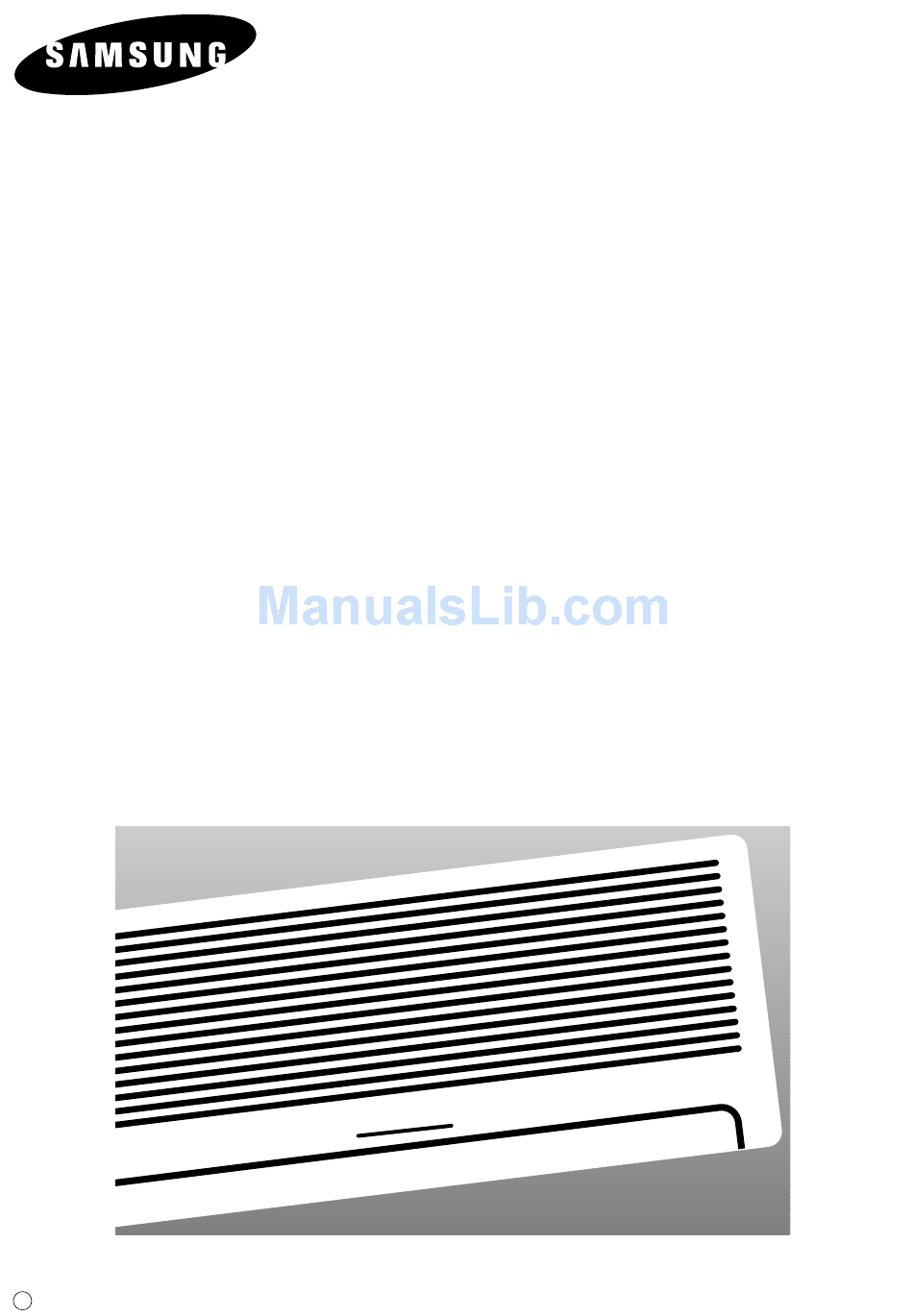

SPLIT TYPE ROOM AIR CONDITIONER E DB98-06085A(1) OWNER’S INSTRUCTIONS Indoor unit AQ09A2MD AQ12A2MD ( Cool and Heat ) Outdoor unit UQ09A2MD UQ12A2MD...
Safety Precautions The following safety precautions must be taken when using your air conditioner. Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials over it. NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your air conditioner and contact your installation specialist.
View of the Unit Indoor Unit The design and shape are subject to change according to the model. Air filter (under the grille) Timer indicator STANDARD indicator NATURE indicator Air flow blades (outlet) For details on the 5 Way, refer to page 9. Air Inlet Remote Control Sensor SAVING indicator...
Remote Control - Buttons and Display Remote control transmission indicator Operating mode AUTO, COOL, FAN, Temperature setting Turbo mode Sleep mode Fan speed Air flow direction On Timer setting Off Timer setting Battery discharge indicator 5 Way selection button DRY, HEAT) Mode selection button (AUTO, COOL, DRY, FAN, HEAT)
Your Owner’s Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit’s features. The booklet is organized as follows.
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : You purchase the air conditioner The remote control does not work correctly Use two AAA, LR03 1.5V batteries. Do not use old batteries or different kinds of batteries together.
5 Way Function You can select the 5 Way function with operating mode of the air conditioner for more comfortable circumstances. You can use the 5 Way function with the indoor unit as well as the remote control. Thus, you can use this function even though you have lost your remote control.
Selecting the Automatic Operating Mode You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the standard temperature and the optimum fan speed is selected automatically. You can adjust the standard temperature but not the fan speed.
The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. IMPORTANT The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being: Plugged in Stopped lt will start up normally after three minutes.
(On/Off) button. Result: The 5 Way indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. The air conditioner is fitted with a protection mechanism...
If necessary, press the (On/Off) button. Result: The 5 Way indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. Press the button.
If necessary, press the (On/Off) button. Result: The 5 Way indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. IMPORTANT The air conditioner is fitted with a protection mechanism...
If necessary, press the (On/Off) button. Result: The 5 Way indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. The indoor unit beeps. If the is not displayed at the top of the remote control, press the MODE button on the remote control one or more times until it appears.
The blade move up and down, around the base position set. To stop the blade moving up and down, press the SWING button again. If you switch the air conditioner... Then the blade is... On again Adjust the blade to face...
Adjusting the Air Flow Direction Horizontally There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally. Adjust each set of inner blades to the required position, by pushing or pulling them sideways.
To cancel the On Timer, press the ON TIMER button one or more times until the timer setting disappears. Press the (Set/Cancel) button. If you want to turn on the air conditioner before the timer reaches the setting time, press the (ON/OFF) button.
Off timer setting. If you would like to turn the air conditioner on after 2 hours and to operate it for 2 hours: 1. Press the ON TIMER button until ‘2.0 Hr’ is displayed.
Setting the Sleep Timer The Sleep Timer can be used when you are cooling or heating your room to switch the air conditioner off automatically after a period of six hours. If you wish to switch the unit off at a specific time, refer to page 19.
The heat pump inside the air conditioner absorbs heat from outside air and brings it indoors. If the temperature of the outside air drops, the air conditioner will heat less. If you find that the room is not warm enough, use an additional heating appliance.
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. If the air conditioner is used at... High temperatures Low temperatures High humidity levels Mode Outdoor Temperature Heating 0°C to 24°C approx.
Check whether the TIMER indicator on the indoor unit is switched on. If so: - Wait until the switch-on time is reached and the air conditioner starts up automatically - Cancel the timer (see pages 18 and 19 for further details) Check that there are no obstacles between you and the indoor unit.
Deodorizing filter Bio-Pure Filter The air conditioner can be fitted with a deodorizing and Bio-Pure filter to remove minute dust particles or odours. The service life of the filter is approximately three months depending on the time during which the air conditioner is used.
