2-1. INTRODUCTION
2-2. MAINTENANCE HINTS
2-3. COMPRESSOR, DRIER,
EXPANSION VALVE,
SIGHT GLASS, AND
CONDENSER FAN
2-4. DISPLAY BOARD AND
AUXILIARY DISPLAY
BOARD
603

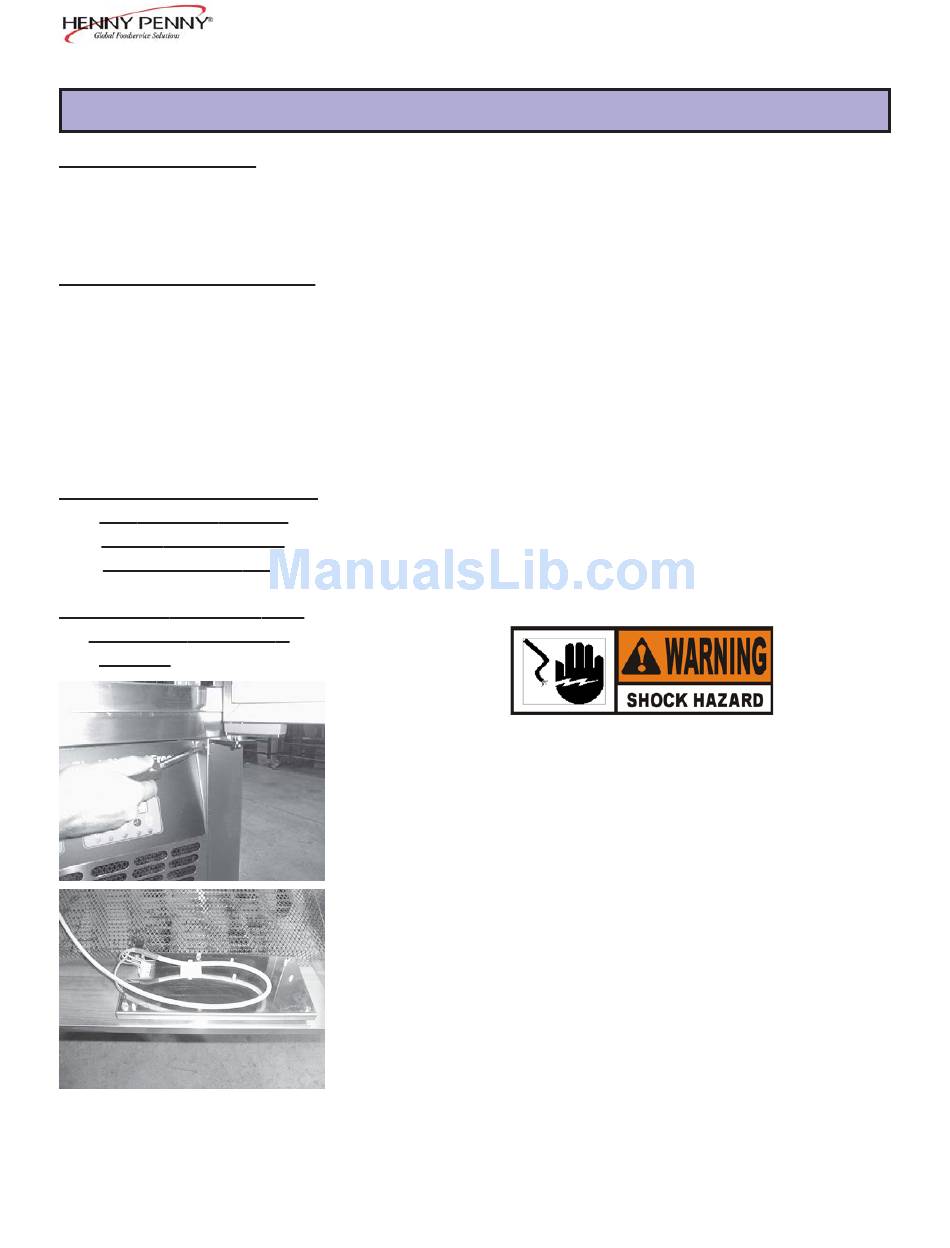

SECTION 2. MAINTENANCE

This section provides procedures for the checkout and replacement
of the various parts used within the blast chiller/freezer. Before
replacing any parts, refer to the Troubleshooting Section. It
will aid you in determining the cause of the malfunction.
1. You may want to use a multimeter to check the electric
components.
2. When the manual refers to the circuit being closed, the
multimeter should read zero unless otherwise noted.
3. When the manual refers to the circuit being open, the multi-
meter reads infinity.
These parts involve manipulating the refrigerant in the system.
Any removal or adjustments to these parts must be handled by a
certified refrigeration expert.
1. Remove the electrical power to the unit.
To avoid electrical shock or property damage, move the
power switch to OFF and disconnect main circuit breaker,
or unplug cord at wall receptacle.
2. Using a Phillips head screwdriver, remove the two screws
securing the front panel, and lower the panel.
3. Pull the connector from the corner of the display board.
4. Using a flathead screwdriver, remove the screws securing
the bracket to the panel, and pull the bracket from the panel.
5. Using a flathead screwdriver, push in on the clips on the
plastic studs and pull the studs through the bracket. Remove
the display board from the bracket.
6. Install the new board in reverse order.
Model BCF-24/65/110, BCM-110
2-1

Advertisement

Table of Contents
loading

Summary of Contents for Henny Penny BCF-24/65/110

  • Page 1: Section 2. Maintenance

    5. Using a flathead screwdriver, push in on the clips on the plastic studs and pull the studs through the bracket. Remove the display board from the bracket. 6. Install the new board in reverse order. Model BCF-24/65/110, BCM-110...
  • Page 2: Control Board

    7. Label and pull the wires from the control board. 8. Using a flathead screwdriver, push in on the clips on the plastic studs and pull the studs through the bracket. Remove the control board from the box. 9. Install the new board in reverse order. Model BCF-24/65/110, BCM-110...
  • Page 3 3. Using a flathead screwdriver, remove the two screws securing the bracket to the box, and remove the bracket. 4. Label and remove the wires from the contactor. 5. Slide the contactor off the retainer. 6. Install new contactor in reverse order. Model BCF-24/65/110, BCM-110...
  • Page 4: Evaporator Fan

    5 in the Control Board Section. 5. Disconnect the wires (inside control box) to the fan. 6. Remove the three screws securing the fan to the evaporator door, and pull the fan from the unit. 7. Install new fan in reverse order. Model BCF-24/65/110, BCM-110...
  • Page 5 5 in the Control Board Section. 4. Find the appropriate wires to the PC board and remove the wires from the board. 5. Pull the probe wire through the wiring harness. 6. Install new probe in reverse order. Model BCF-24/65/110, BCM-110...
  • Page 6: Fuse And Fuse Holder

    To avoid electrical shock or property damage, move the power switch to OFF and disconnect main circuit breaker, or unplug cord at wall receptacle. Also, if evaporator is functional, it will be very hot! Allow evaporator to cool before removing, or burns could result. Model BCF-24/65/110, BCM-110...
  • Page 7 1. Open door and pull out on a corner of the seal until seal clears the retainer. 2. Continue around the door, pulling the seal from the door. 3. Install new seal, starting with the four corners first. Model BCF-24/65/110, BCM-110...
  • Page 8: Run Capacitor

    (See section 2-12 above). 4. Disconnect the wires to either the relay or the capacitor, and remove component from the unit. 5. Install new component in reverse order. Model BCF-24/65/110, BCM-110...
  • Page 9: Preventive Maintenance

    De-ice the evaporator Clean the condenser of dust and obstructions Model BCF-24/65/110, BCM-110 As in all food equipment, the Henny Penny Blast Chiller/Freezer does require care and proper mainte- nance. The table below provides a summary of sched- uled maintenance.
  • Page 10 Model BCF-24/65/110, BCM-110 Wiring Diagrams BCF/BCM-110 2-10...
  • Page 11 Model BCF-24/65/110, BCM-110 Wiring Diagram BCF-24/65 Refrigeration Diagram BCF-24/65 2-11...
  • Page 12 Model BCF-24/65/110, BCM-110 Refrigeration Diagram BCF/BCM-110-UL Refrigeration Diagram BCF/BCM-110-Int’l. 2-12...
  • Page 13 Model BCF-24/65/110, BCM-110 Electrical/Refrigeration Diagram 2-13...
  • Page 14 20-21 0 TO 1 VOLT OUTPUT TO GRAPHIC RECORDER : (HOTTEST FRIGIPROBE TEMPERATURE, NOT USED) 22-23 EVAPORATOR TEMPERATURE PROBE INPUTS 24-25 PHOTO-ELECTRIC RESISTOR INPUTS (NOT USED) 26-27 AIR TEMPERATURE PROBE INPUTS 2-14 Wiring Information of PC Board Model BCF-24/65/110, BCM-110...
