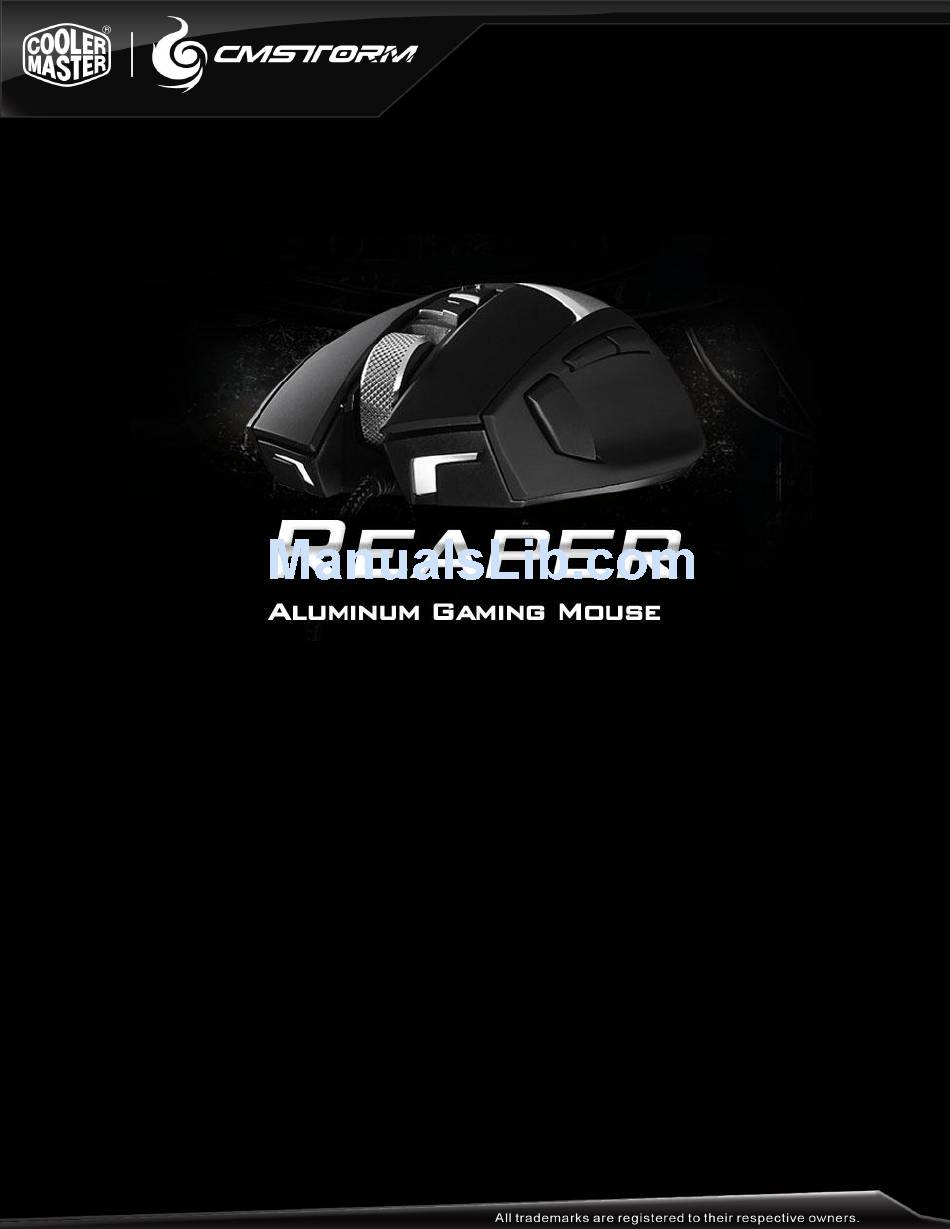

- Page 1 MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ………………………………………………… INTRODUCTION …………………………………………. PACKAGE CONTENTS …………………………………... TECHNICAL REQUIREMENTS ………………………………....PRODUCT SUPPORT ………………………………………………… SPECIFICATIONS ………………………………....INSTALLATION GUIDE ………………………………………………… DEVICE LAYOUT ………………………………………………… SOFTWARE GUIDE ………………………………....LEGAL INFORMATION... -
Page 3: Introduction
This allows us to give you everything you could want out of the Reaper. The CM Storm Reaper software is a thing of beauty. Each of the 8 buttons are customizable allowing for standard mouse functions, media control keys, and fully programmed macros. -
Page 4: Package Contents
PACKAGE CONTENTS CM Storm Aluminum Reaper Mouse CM Storm Reaper Software User manual TECHNICAL REQUIREMENTS PC with USB port Windows 8 / 7 / Vista / XP 75MB of free disk space Internet connection for software and firmware updates PRODUCT SUPPORT ... -
Page 5: Specifications
SPECIFICATIONS Part Number: SGM-6002-KLLW1 Grip Design: Palm grip Form Factor: Right hand Material: Aluminum, Plastic, Rubber Sensor: Avago ADNS-9800 Maximum CPI/DPI: 8200 Switch: Omron 5 million clicks Onboard Memory: 128k Polling Rate: 1000 Hz / 1 ms ... -
Page 6: Installation Guide
INSTALLATION GUIDE 1. Plug in the CM Storm Reaper into your computer 2. Obtain the software at http://www.cmstorm.com or http://www.coolermaster- usa.com 3. Run the installer and follow its instructions (includes .Net 4.0) 4. Launch the Reaper software and allow it to configure 5. -
Page 7: Device Layout
DEVICE LAYOUT 1. Left Click button 2. Right Click button 3. Scroll Wheel and Middle Click button 4. Mouse button 4, default to DPI + 5. Mouse button 5, default to DPI – 6. Removable aluminum plate for passive hand cooling 7. -
Page 8: Software Guide
SOFTWARE GUIDE Main Tab The Main Tab is the default tab when you first open the Reaper software. On this page, you can change the functions of every button your Reaper. The profile change options at the bottom are available on every tab view. - Page 9 Advanced Tab The Advanced Tab allows you to adjust the DPI of your mouse, LED settings, and other advanced mouse settings. You can adjust the DPI levels available to switch on the mouse with the DPI + and DPI – button functions.
- Page 10 You may lock the OS settings to the Reaper software so other Windows settings cannot change them. You can also turn on/off Angle Snapping here. The black area to the right allows you to...
- Page 11 Macro Tab The Macro tab is where you can program button combinations to run on a single click, release, hold, or trigger a loop until clicked again to stop the loop. The macro programming allows you to do everything from perform a particular button combination once or to rapidly click your left mouse button until you tell it not to.
- Page 12 The New, Delete, Load, and Save allow you to make adjustments to the macro list available in the software. All Macros are stored as files on your computer. New creates a new macro file. Delete removes the macro file from your computer and from the list on the left. ...
- Page 13 The With Time function will include any time delay (or lack of) between button presses when programming the keyboard. The Insert option allows you to put in a command in the middle of an already programmed macro in case you missed a key or needed to tweak something. ...
- Page 14 Profiles Tab The Profiles tab allows you to manage what profiles are loaded into your mouse so you can switch between them. You are able to save profiles to your PC, including profiles from other users, and then load them into your mouse with this tab.
- Page 15 The left window master list indicates what profiles are saved on your system and loaded into the CM Storm Reaper software program. The window on the right indicates the four profiles loaded into the mouse. The arrows in the center control the import and export of profiles to and from the Reaper mouse.
- Page 16 Library Tab The Library Tab allows you to manage your macro database. You can import macro files from other sources into your database and export your macros to other locations, including the mouse, for sharing or backup. You can also delete macros on this page similar to the Macro Tab.
- Page 17 The left window is your stored macro database in the Reaper software folder. The right area allows you to navigate to particular buttons on the different loaded profiles on the mouse to apply macros or import them to the PC using the center arrow buttons.
- Page 18 The support tab will give you information on further support with a button to the CM Storm page which contains the latest drivers and FAQs for your Reaper and other CM Storm products. The Version Info button will provide you a box noting the version...
-
Page 19: Legal Information
The Cooler Master Warranty would like to assure all of the users of Cooler Master Products to be free from any defects as a result of faulty manufacturing or faulty... - Page 20 1. Warranty Length All products from Cooler Master at least carry 1 year warranty from the date of purchase, with the exception of power supply units which carry a 2-5 year warranty. If no proof of purchase (receipt or invoice of purchase) can be presented upon request, Cooler Master cannot be held responsible for warranty service.
- Page 21 8. Exclusion of Damages (Disclaimer) Cooler Master's sole obligation and liability under this Program is limited to the repair or replacement of a defective product at our discretion. Cooler Master shall not, in any...
