Model
EVE-360
Retain This
Manual for
Reference
07-07-05
OWNER'S
MANUAL
EVERLAST
Multi Purpose Bench
Made under license from trademark owner Everlast
Worldwide Inc., New York.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
EVE-360
IMPEX INC.
Advertisement
Table of Contents
Related Manuals for Impex EVERLAST EVE-360
Summary of Contents for Impex EVERLAST EVE-360
-
Page 1: Impex Inc

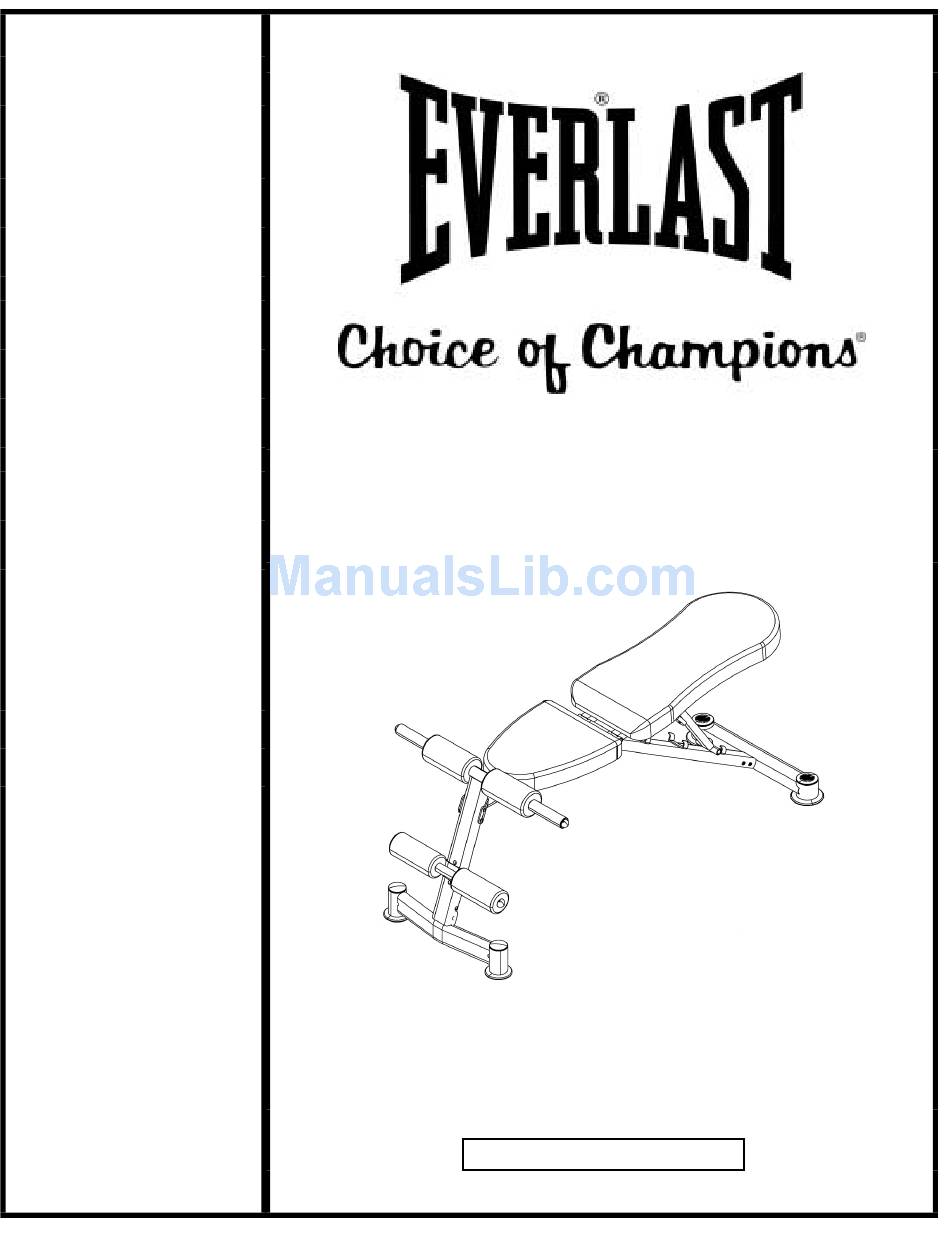

Table of Content Safety Notice Hardware Identifier Assembly Instruction EVERLAST Parts List Multi Purpose Bench Warranty EVE-360 Ordering Parts Model EVE-360 Retain This Manual for Reference 07-07-05 OWNER'S MANUAL Made under license from trademark owner Everlast Worldwide Inc., New York. -
Page 2: Table Of Contents
WARRANTY....................…. ORDERING PARTS..................… BEFORE YOU BEGIN Thank you for selecting the EVERLAST EVE-360 Multi-Purpose Bench by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notice
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1. -
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The Warning Label shown here has been placed on the Main Frame. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown. -
Page 5: Hardware Identifier
HARDWARE PACK... -
Page 6: Assembly Instruction
ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Adjustable Wrench and Allen Wrench NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injuries. STEP 1 (See Diagram 1) A.) Push two Front Stabilizer End Caps (#12) and Front Stabilizer Bases (#34) into the Front Stabilizer (#1). - Page 7 STEP 2 (See Diagram 2) A.) Attach the Incline Support (#6) in between the two Backrest Supports (#5). B.) Attach the Pivot of the Backrest Supports (#5) to the Pivot on the Main Frame (#3). Secure them with one M12 x 6 7/8” Hex Bolt (#27) and M12 Aircraft Nut (#30). DIAGRAM 2...
- Page 8 STEP 3 (See Diagram3) A.) Place the Seat (#10) onto the Main Frame (#3). Secure it to the two L-shaped Brackets (#9) with two M8 x 5/8” Allen Bolts (#23) and Ø 5/8” Washers (#28). Secure the Seat to the Main Frame with one M8 x 1 ¾”...
-
Page 10: Parts List
Parts list KEY NO. DESCRIPTION Q’ty Front Stabilizer Rear Stabilizer Main Frame Front Vertical Frame Backrest Support Incline Support Cross Tube Foam Tube L-shaped Bracket Seat Backrest Board Ø 2” Front Stabilizer End Cap Ø 2 3/8” Rear Stabilizer End Cap Small Foam Roll Foam Grip Lock Knob... -
Page 11: Limited Warranty
IMPEX INC. LIMITED WARRANTY IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.
