Page 1: Electric Dryer

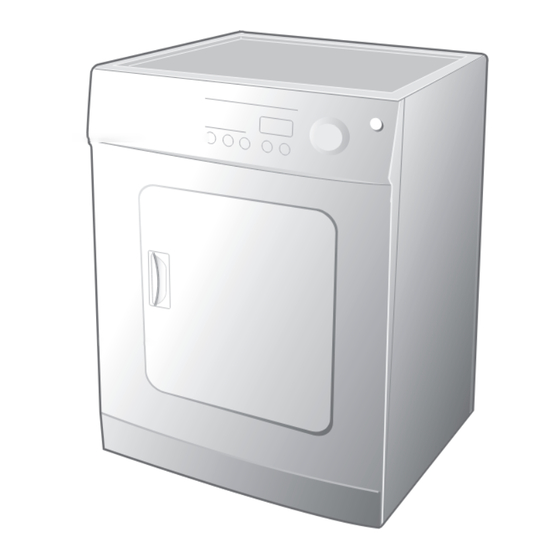

DV665J* Electric Dryer user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register DV665J-02658A_EN.indd 1 2009-01-12 ø¿¿¸ 9:37:07... -
Page 2: Delay Start
2. Freshen-up Program Samsung’s Freshen-up program tumble-dries garments in cool air set at a time of your choice, for up to 50 minutes. This program makes it easy to freshen-up clothes that only require a little airing out. -
Page 3: Safety Instructions
Congratulations on the purchase of your new Samsung Dryer. This manual contains valuable information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer’s many benefits and features. - Page 4 safety instructions Read all instructions before using the appliance. To reduce the risk of fire or explosion: CAUTION: • Do not dry items that have been previously cleaned, washed, soaked, or spotted with Risk of Fire gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit vapors that could ignite or explode.
- Page 5 Do not sit on top of the dryer. Because of continuing product improvements, Samsung reserves the right to change specifications without notice. For complete details, see the Installation Instructions packed with your product before selecting cabinetry, making cutouts, or beginning installation.
-
Page 6: Table Of Contents
contents INSTALLING YOUR DRYER Tools needed for installation See Exhaust Requirements Ducting requirements Exhaust directions Exhaust duct locating dimensions Important to installer Location considerations Alcove or closet installation Exhausting Electrical requirements Grounding Electrical connections Replacement parts and accessories Installation Final installation checklist ENVIRONMENT Dryer Exhaust Tips Door Reversal... -
Page 7: Installing Your Dryer
installing your dryer TOOLS NEEDED FOR INSTALLATION Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup, adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer you are responsible. -
Page 8: Ducting Requirements
installing your dryer DUCTING REQUIREMENTS • Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct. • Do not use a smaller duct. • Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation. Lint accumulation should be cleaned regularly. -
Page 9: Exhaust Length Calculation
EXHAUST LENGTH CALCULATION Table 1: RECOMMENDED MAXIMUM LENGTH ELECTRIC DRYERS Weather Hood Type Recommended Use only for short run installations 4” (10 .16 cm) 2.5” (6.35 cm) No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible* 14 m (46 ft.) 9 m (30 ft.) 11 m (37 ft.) 7 m (24 ft.) -
Page 10: Exhaust Directions
Stacking kit (Model no:SK-2A) You can obtain the stacking kit from your retailer. With this kit you can combine your Samsung dryer with a Samsung washing machine in a washing and drying column. The appliances are stacked in a space-economizing manner in this arrangement, the... -
Page 11: Location Considerations
LOCATION CONSIDERATIONS The dryer should be located where there is enough space in front for loading the dryer, and enough space behind for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the bottom or the left, inquire at the installer. It’s important to make sure the room has enough fresh air. The dryer must be located where there is no air-flow obstruction. -
Page 12: Electrical Requirements
EXTENSION CORD. REPLACEMENT PARTS AND ACCESSORIES If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased your dryer or the SAMSUNG customer care center at 1300 362 603. 12_ Installing your dryer DV665J-02658A_EN.indd 12 2009-01-12 ø¿¿¸ 9:37:11... -
Page 13: Installation
INSTALLATION For proper installation, it is highly recommended to hire a professional. To install: 1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side- by-side, to allow access to electrical and exhaust connections. Lay two of the carton cushion-tops on the floor. -
Page 14: Dryer Exhaust Tips
installing your dryer DRYER EXHAUST TIPS Plastic or non-metal flexible duct presents a potential fire hazard. 1. Let your dryer exhaust the air easily. WARNING 2. Use a 4” diameter rigid metal duct. Tape all joints, including at the dryer. Never use lint-trapping screws. -
Page 15: Door Reversal
DOOR REVERSAL 1. Disconnect the power supply to the unit. 2. Remove the top screw on the top hinge. Loosen but do not remove the lower screw on the top hinge. Repeat the procedure for the lower hinge. 3. Lift the door and remove it from the dryer. 4. -
Page 16: Operating Instructions, Tips
operating Instructions, tips OVERVIEW OF THE CONTROL PANEL During the DRY cycle, the displayed remaining time may be increased or decreased. This is not a malfunction. The unit is adjusting the drying time to dry your clothes thoroughly. When using the dryer, please use loads less than 8lb to get the best drying results. (Max. DRY time is 3 hours.) When the signal button is OFF, the completion buzzer does not make a sound. - Page 17 When you turn the dryer on, the FILTER LAMP will flicker 3 times. When FILTER LAMP a drying cycle is finished, the FILTER LAMP will turn ON. Cleaning instructions for the filter will appear on the DISPLAY. To activate the CHILD LOCK, push the WRINKLE-RELEASE button and DELAY START button in order.
-
Page 18: Polyester Knits & Permanent Press Drying Tips
operating Instructions, tips HOW TO OPERATE YOUR DRYER TO DRY CLOTHES USING THE DRYING CYCLES 1. Open the door and put the laundry in the dryer. 2. Press the power button. 3. Turn the Cycle Selector Dial to choose the cycle. You will see the indicators light up on the control panel. 4. -
Page 19: Cycle Selecting Guide
CYCLE SELECTING GUIDE Programs Laundry Type Example for Heavy weight or mult-layered fabrics Track suits, Towelling materials, Intensive Dry bath robes Fabrics of medium weight, articles Jeans, Towel laundry, hand towels Very Dry not made up of mult-layers Normal cotton and linen articles Sheets, and pillowcase, tablecloths, More Dry Cotton... -
Page 20: Cycle Chart
operating Instructions, tips CYCLE CHART Low Temp Estimated Time Programs Delay Start Remark Select (8lb/3.6kg) Intensive Dry 1 hr 36 min 1 hr 33 min Very Dry More Dry 1 hr 30 min Cotton High/Low Normal Dry 1 hr 23 min Less Dry 1 hr 18 min Damp Dry... -
Page 21: Clean The Lint Filter
CLEAN THE LINT FILTER • After each load. • To shorten drying time. • To operate more energy efficiently. Do not operate your dryer without the lint filter in place. LOAD THE DRYER PROPERLY • Place only one washload in your dryer at a time. •... -
Page 22: Care And Cleaning
care and cleaning CLEAN FILTER Clean the filter before every dryer use Slide out the lint filter as shown. Put your moistened fingers at one corner of the filter and wipe in a sideways motion all the way across to the other corner. -
Page 23: Dryer Exhaust
DRYER EXTERIOR Clean with a soft, damp cloth. Do not use abrasive substances. Protect the surface from sharp objects. DRYER EXHAUST MAXIMIZE YOUR DRYER EFFICIENCY BY KEEPING THE EXHAUST DUCT CLEAN. 1. Disconnect or turn off the electrical power. EXHAUST HOOD 2. -
Page 24: Troubleshooting
troubleshooting QUESTIONS? USE THIS PROBLEM SOLVER PROBLEM POSSIBLE CAUSE DRYER • Dryer unplugged. Make sure the power cord is plugged in. WON’T • No power to dryer. Check fuses and circuit breakers to make sure dryer is getting current. START •... -
Page 25: Information Codes
INFORMATION CODES Information codes may be displayed to help you better understand what is occurring with your Dryer. CODE SYMBOL MEANING SOLUTION Be sure the door is latched shut. If problem Door open error when the door is continues, call for service. See below. open, the dryer will not operate. -
Page 26: Appendix
appendix FABRIC CARE CHART The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems. -
Page 27: Protecting The Environment
PROTECTING THE ENVIRONMENT This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance. - Page 28 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT AUSTRALIA 1300 362 603 www.samsung.com/au Code No. DC68-02658A_EN DV665J-02658A_EN.indd 28 2009-01-12 ø¿¿¸ 9:37:18...
