User Instructions
8/06
American DJ
®
4295 Charter Street
Los Angeles CA. 90058
www.americandj.com
Double Feature
Unpacking:
Thank you for purchasing the Double Feature by Ameri-
can DJ
. Every Double Feature has been thoroughly tested and has
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without first
contacting customer support.
Introduction:

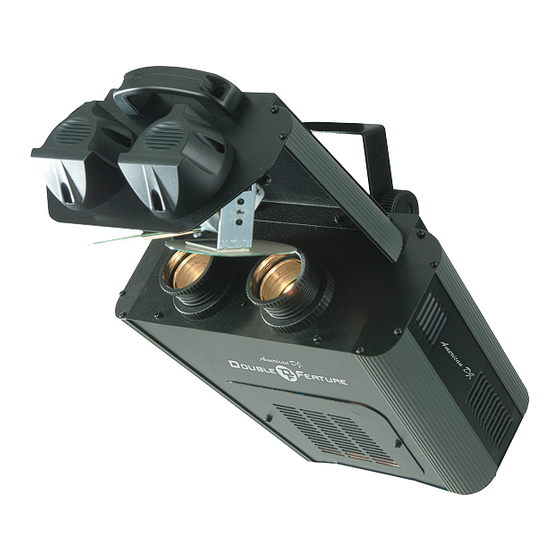

This unit is an unigue eight channel DMX intelligent
double scanner. Four channels for each side. This unit can also run as
a stand alone, sound-active unit, or in a Master/Slave configuration.
When used as a stand alone unit or when used in multiples linked in
a master/slave configuration, the optional BC 30 Controller may be
used with in this operation for blackout, program modes, and program
effects. For best results use fog or special effects smoke to enhance
the beams projections.
Customer Support:
American DJ
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to
5:00 p.m. Pacific Standard Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2610
E-mail:
support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ
.
®
American DJ
- www.americandj.com - Double Feature Instruction Manual Page 2
©
®
