Page 1: User Instructions

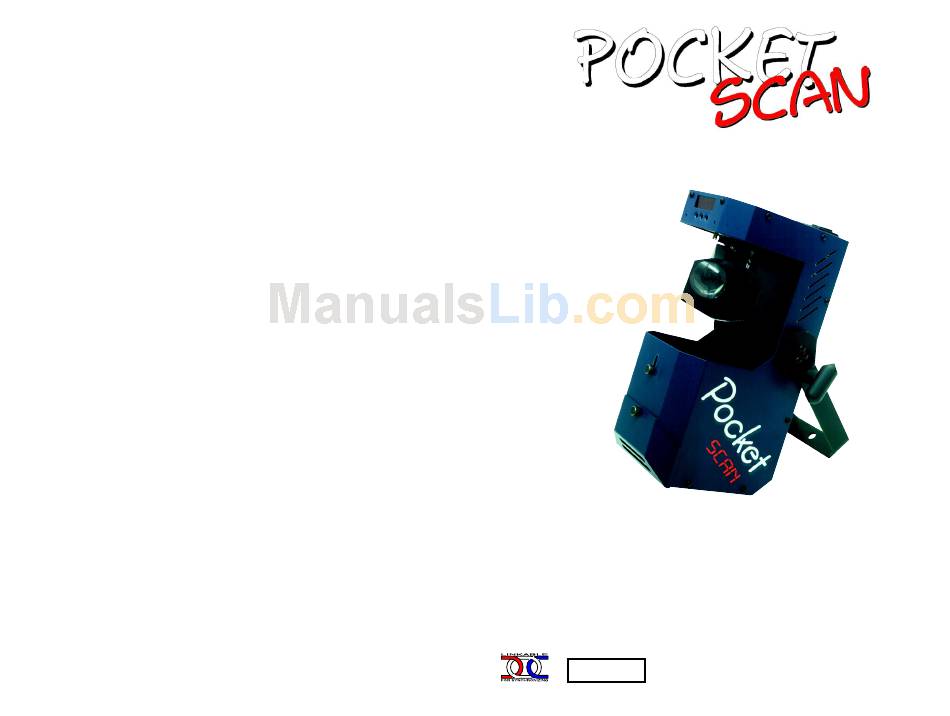

User Instructions ©American DJ Supply American DJ World Headquarters: American DJ 4295 Charter Street Los Angeles, CA 90058 USA 4295 Charter Street Tel: 323-582-2650 / Fax: 323-582-2610 DMX-512 Los Angeles Ca. 90058 Web: www.americandj.com / E-mail: info@americandj.com www.americandj.com... -
Page 2: Specifications
Pocket Scan™ Introduction Introduction: Congratulations and thank you for purchasing the Pocket Scan from American DJ. The new Pocket Scan DJ’s continuing pursuit for creating high quality affordable intel- ligent fixtures. The Pocket Scan featured scanner ever. The Pocket Scan™ is a DMX scanner with a built-in 5mW diode laser. - Page 3 When connecting two units up, only one is ever blackened out at once, and the blackout ‘swaps’ between the units. If problems are not resolved; Contact your American DJ dealer for service. American DJ Supply - www.americandj.com - Pocket Scan™...
- Page 4 • During long periods of non-use, disconnect the unit’s main power. • Always mount this unit in safe and stable matter. American DJ Supply - www.americandj.com - Pocket Scan™ Instruction Manual Page 4 © ®...
-
Page 5: Dmx Channel
FAST STROBE Power Supply: Before plugging your unit in be sure the source voltage in your area matches the required voltage for your American DJ Scan.™ The American DJ and 230v version. Because line voltage may vary from venue to... - Page 6 Be sure the yoke is firmly attached to the unit. Attach clamps to the yoke of the Pocket Scan. ™ The Pocket Scan™ can be mounted to a wall or may hung from truss. American DJ Supply - www.americandj.com - Pocket Scan™ Instruction Manual Page 6 ©...
-
Page 7: Operating Modes
• DMX control mode - This function will allow you to control each individual fixtures traits with a standard DMX 512 controller such as the American DJ Show Designer. Stand Alone Mode: The Pocket Scan has a sophisticated built-in light show that will run to sound when there is no DMX signal present. -
Page 8: Dmx Mode
American DJ Supply © “S-F” will equal Master/Send Fast Mode “S-S” will equal Master/Send Slow Mode Show Designer™ or the American DJ ® uses seven DMX channels to operate; Pocket Scan™ LCD - www.americandj.com - Pocket Scan™ Instruction Manual Page 9 ®...
