Connections

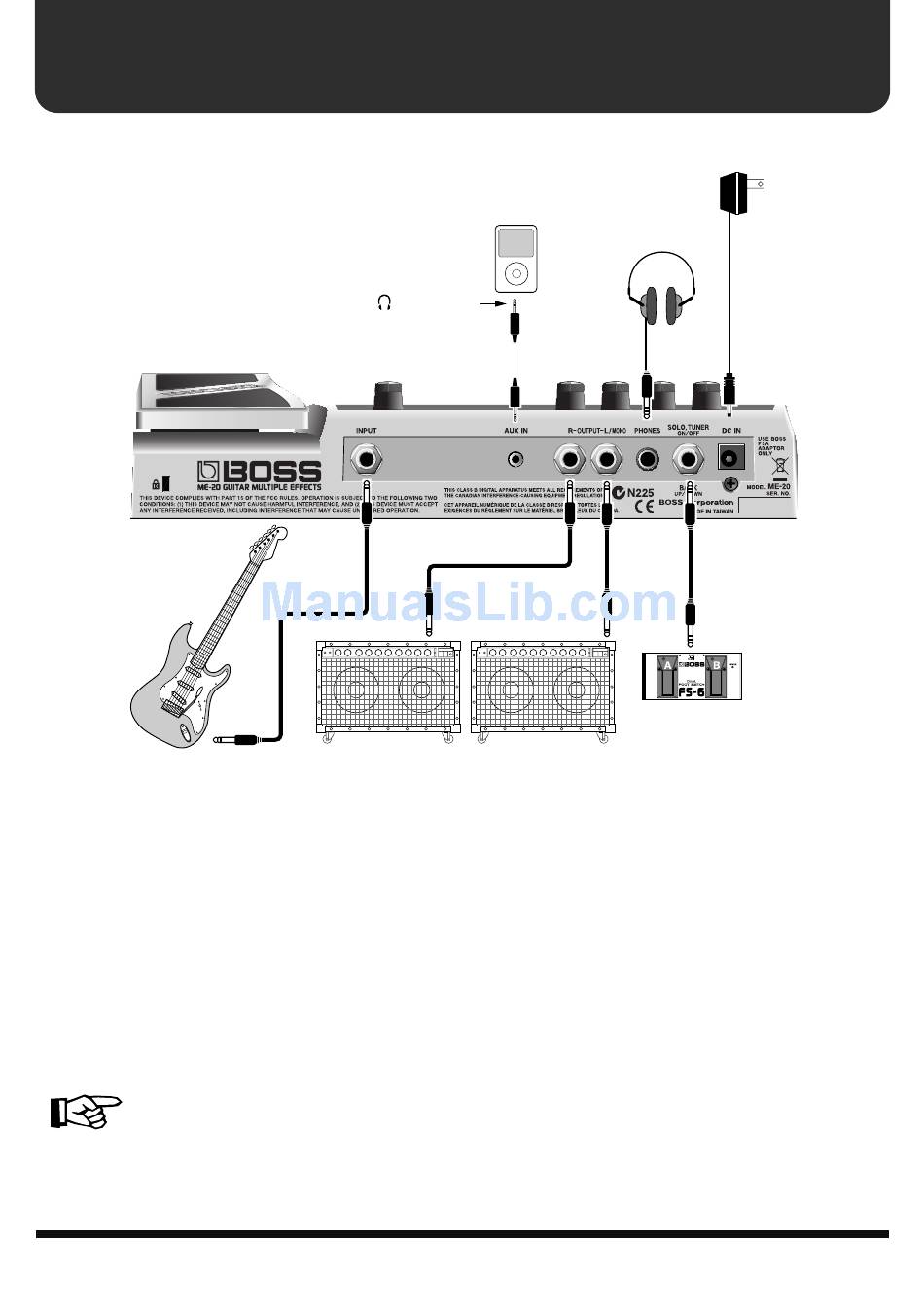

fig.ME-20-connect-e.eps_70
Guitar
* When using an AC adaptor, be sure to use only the specified type (PSA series).
Using an adaptor other than the specified type may cause malfunction.
* To prevent malfunction and/or damage to speakers or other devices, always turn down the
volume and turn off the power to all devices before making any connections.
* The INPUT jack doubles as a power switch. Inserting a plug in the INPUT jack turns on
the power; the power is switched off when the plug is disconnected. Be sure to unplug the
cable from this jack when the ME-20 is not in use.
* Some connection cables contain resistors. When connection cables with resistors are used,
the sound level may be extremely low, or impossible to hear. For information on cable
specifications, contact the manufacturer of the cable.
* When you're using a single guitar amp, connect it to the L/MONO jack.
For more information about connecting a footswitch pedal to the footswitch jack,
refer to "Using Footswitch Pedals" (p. 27).
12
CD/MP3 player
Phones Jack
Guitar Amp
AC adaptor
(PSA series)
Stereo Headphones
Footswitch
(FS-6, etc.)
