Cisco SPA8800 Quick Start Manual

Quick Start Guide
Cisco Small Business Pro
SPA8800 IP Telephony Gateway
Package Contents
• SPA8800 IP Telephony Gateway
• Power Adapter
• RJ-45 Ethernet Cable
• RJ-11 Phone Cables (4)
• Quick Start Guide
1 Before You Begin
The following basic services and equipment are required:
• An Integrated Access Device or modem for broadband access to the
Internet
• A computer with Microsoft Windows XP or Windows Vista for system
configuration
• An analog phone for administrative use with the Interactive Voice Response
(IVR) system
• (Recommended) An Uninterruptible Power Source (UPS), to ensure
continuous operation by providing continuous power to devices such as the
Integrated Access Device, switch, and router
2
Connect the Devices
N If the SPA8800 is pre-configured by your ITSP, then you do
OTE
not need to change the default voice settings. Refer to the
documentation supplied by your service provider for more
information.
S 1 Power off your network devices, including your modem and PC.
TEP

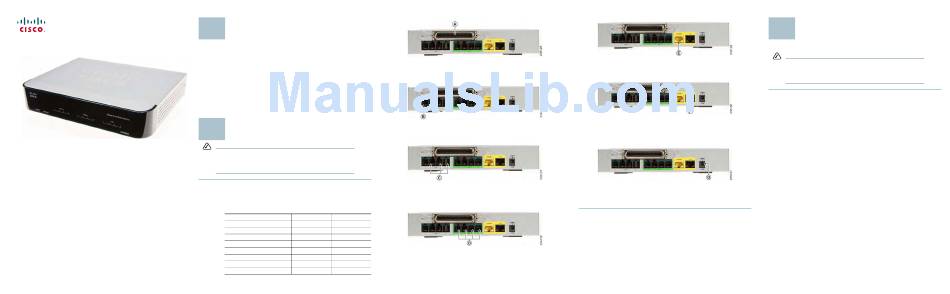

S TEP 2 Connect the phones to the SPA8800, by using one or both of the
following methods:
• Connect an RJ-21 connector to the RJ-21 port (A).
Connector Pinouts Circuit Pin (Ring) Pin (Tip)
FXS 1 1 26
FXS 2 2 27
FXS 3 3 28
FXS 4 4 29
FXO 1 17 42
FXO 2 18 43
FXO 3 19 44
FXO 4 20 45
• If you are connecting individual phone lines, connect one end of an
RJ-11 phone cable to the PHONE 1 port (B). Connect the other end
of the cable to an analog phone.
• Then connect other analog phones to the remaining PHONE ports
(C).
S TEP 3 For access to the PSTN (Public Switched Telephone Network), connect
RJ-11 cables from the Line 1 to Line 4 FXO ports (D) to the RJ-11 wall
outlet for the telephone service.
S 4 Connect one end of an Ethernet cable to the Ethernet port (E). Connect
TEP
the other end of the cable to your cable/DSL modem.
S 5 Connect an one end of an Ethernet network cable to the AUX port (F).
TEP
Connect the other end of the cable to the Ethernet port of your PC.
S TEP 6 Connect the included power adapter to the power port (G). Insert the
power adapter into an electrical outlet. The power LEDs on the front
panel are lit.
S 7 Power on your PC. Make sure the Ethernet adapter of the PC is set to
TEP
obtain an IP address automatically. For more information, refer to
Windows Help.
3 Setting Up the Network
Connection
N If the SPA8800 is pre-configured by your ITSP, then you do
OTE
not need to change the default voice settings. Refer to the
documentation supplied by your service provider for more
information.
S 1 Start a web browser on your PC. In the Address bar, enter the
TEP
following address: 192.168.0.1/advanced
S 2 If the login screen appears, enter the user name and password that
TEP
were supplied by your ITSP. If your ITSP did not supply a password,
you will not see a login screen.
S 3 When the Network - Status screen appears, click the WAN Status tab.
TEP
S 4 Configure a DHCP, Static IP, or PPPoE connection:
TEP
DHCP
a. Select DHCP for the Connection Type.
b. If you use a cable modem, you may need to configure the MAC
Clone Settings. (Contact your Internet Service Provider for more
information.) If your service uses a specific PC MAC address, then
select yes from the Enable MAC Clone Service setting. Then enter
the MAC address of the PC in the Cloned MAC Address field.
c. Click Submit All Changes.
Static IP
a. Select Static IP for the Connection Type.
b. In the Static IP Settings section, enter the IP address in the Static IP
field, the subnet mask in the NetMask field, and the default gateway
IP address (router IP address) in the Gateway field.
c. In the Optional Settings section, enter the DNS server addresses in
the Primary DNS and the optional Secondary DNS fields.
d. Click Submit All Changes.
