QuickSpecs
Overview
1.
Volume mute button with LED indicator
2.
Volume scroll zone with up/down LED indicators
3.
Integrated microphone
4.
RJ-11/modem port
5.
Optical drive
6.
2 USB 2.0 ports
7.
Stereo microphone in
8.
Stereo headphone/line out
14.
15.
16.
17.
18.
19.
20.
21.
DA - 12713 EMEA — Version 18 — July 14, 2008

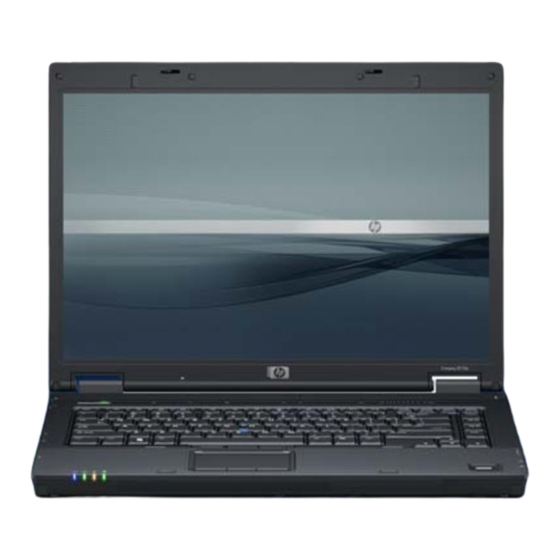

HP Compaq 8510p Notebook PC
HP recommends Windows Vista
Business
Touchpad buttons, three (two on models without Pointstick)
Hard drive / optical drive activity / HP 3D DriveGuard LED
Battery charging LED
Power/standby LED
Wireless on/off LED
Power button with LED
HP Info / HP QuickLook button with LED indicator
Wireless on/off button with LED indicator
®
Page 1

Advertisement

loading

Related Manuals for HP Compaq 8510p

Summary of Contents for HP Compaq 8510p

  • Page 1 Business Volume mute button with LED indicator Touchpad buttons, three (two on models without Pointstick) Volume scroll zone with up/down LED indicators Hard drive / optical drive activity / HP 3D DriveGuard LED Integrated microphone Battery charging LED RJ-11/modem port...
  • Page 2 QuickSpecs HP Compaq 8510p Notebook PC Overview HP Fingerprint Sensor HP Presentation button with LED indicator Integrated stereo speakers Ambient Light Sensor Pointstick (select models) Two WWAN antennas (only optional with WWAN models) Pointstick buttons, three (select models) Three WLAN antennas (with WLAN option)
  • Page 3 Up to 160-GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Enhanced reliability with HP DuraKeys, HP DuraFinish , and magnesium alloy display enclosures and support structures Touch-sensitive controls for HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, volume up, volume down, and mute...

  • Page 4: Standard Features

    QuickSpecs HP Compaq 8510p Notebook PC Standard Features Processors Intel Core 2 Duo Processor T9300 (2.50 GHz, 6 MB L2 cache, 800 MHz FSB)* Intel Core 2 Duo Processor T8300 (2.40 GHz, 3 MB L2 cache, 800 MHz FSB)* Intel Core 2 Duo Processor T8100 (2.10 GHz, 3 MB L2 cache, 800 MHz FSB)* Intel Core 2 Duo Processor T7800 (2.60 GHz, 4 MB L2 cache, 800 MHz FSB)*...
  • Page 5 1920 x 1080 resolution and 7-channel audio with one convenient cable (not included). DVI port in optional HP Docking Station (sold separately) supports resolutions up to 1920 x 1200 for single-link DVI monitors and up to 2560 x 1600 for dual-link DVI monitors.
  • Page 6 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 7 19-mm x 19-mm key pitch (center-to-center spacing), 2.5-mm stroke, and comfort-dished keycaps. HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.
  • Page 8 DVD/CD-RW Combo Drive DVD+/-RW SuperMulti DL Drive DVD+/-RW SuperMulti DL LightScribe Drive Blu-Ray Disc DVD+/-RW SuperMulti DL Drive NOTE: Optical drive is user replacable with HP option. Requires single screw removal. Interfaces PC Card slot One Type I/II PC Card slot...
  • Page 9 HP Backup and Recovery Each unit is shipped with HP Backup and Recovery Manager. HP Backup and Recovery Manager can provide data and system file protection for HP business PCs to enable fast recovery if the system becomes Manager corrupted or if important information is accidentally deleted.
  • Page 10 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries.
  • Page 11 ** HP Advanced Docking Station only Service and Support HP Services offers limited 3- year, 1-year and 90-day warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. For HP Care Pack services see http://www.hp.com/go/lookuptool.
  • Page 12 QuickSpecs HP Compaq 8510p Notebook PC Standard Features 8510p Processor Intel Core 2 Duo Processor T7500 (2.20-GHz, 800-FSB, 4-MB L2 cache) GR537AW#XXX Intel Centrino with vPro Enabled (may vary based on local technology regulatory requirements) Operating System Genuine Windows Vista Business...
  • Page 13 QuickSpecs HP Compaq 8510p Notebook PC Standard Features 8510p Processor Intel Core 2 Duo Processor T7500 (2.20-GHz, 800-FSB, 4-MB L2 cache) GR538AW#XXX Intel Centrino with vPro Enabled (may vary based on local technology regulatory requirements) Operating System Genuine Windows Vista Business...
  • Page 14 QuickSpecs HP Compaq 8510p Notebook PC Standard Features 8510p Processor Intel Core 2 Duo Processor T7700 (2.40-GHz, 800-FSB, 4-MB L2 cache) GR539AW#XXX Intel Centrino with vPro Enabled (may vary based on local technology regulatory requirements) Operating System Genuine Windows Vista Business...
  • Page 15 QuickSpecs HP Compaq 8510p Notebook PC Standard Features 8510p Processor Intel Core 2 Duo Processor T7700 GR540AW#XXX Intel Centrino with vPro Enabled (may vary based on local technology regulatory requirements) Operating System Genuine Windows Vista Business System Memory 2048 MB 667-MHz DDR2 (1 DIMM)
  • Page 16 HP MultiBay II DVD-ROM Drive PA849A (9.5-mm) HP MultiBay II DVD/CD-RW Combo Drive PA850A NOTE: Requires HP HP MultiBay II DVD+/-RW SuperMulti DL Drive PA851A Advanced Docking Station, HP 80-GB 5400rpm MultiBay II Hard Drive PH357A or HP External MultiBay II...
  • Page 17 HP USB/PS2 Optical 2-Button Scroll Mouse DC369A HP USB Optical Travel Mouse RH304AA HP Bluetooth PC Card Mouse RJ316AA * Requires HP Docking Station or HP Advanced Docking Station DA - 12713 EMEA — Version 18 — July 14, 2008 Page 17...
  • Page 18 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB of memory requires Windows Vista Business 64- bit or Linux.

  • Page 19: Optical Drive Support

    QuickSpecs HP Compaq 8510p Notebook PC Storage Optical Drive Support Quantity Supported Drive Bay DVD/CD-RW Combo Drive Fixed optical drive bay DVD+/-RW SuperMulti DL Drive Fixed optical drive bay DVD+/-RW SuperMulti DL LightScribe Fixed optical drive bay Drive Blu-Ray Disc DVD+/-RW SuperMulti...

  • Page 20: Technical Specifications

    QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.1 in (at front) x 14.0 in x 10.24 in 27.5 mm (at front) x 357 mm x 260 mm Weight Starting from 6.1 lb (2.77 kg) NOTE: Height varies depending upon where on the notebook the measurement is made. Starting weight includes 8-cell battery, hard drive, 512-MB memory, 802.11 wireless communications module, Bluetooth,...
  • Page 21 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications For accessibility information on HP products, please visit http://www.hp.com/accessibility. HP 90W Smart AC Adapter Dimensions 5.24 x 2.28 x 1.1 in (13.3 x 5.8 x 2.9 cm) Weight 0.86 lb (390 g)
  • Page 22 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Optional HP Extended Life Dimensions (H x W x L) 1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm) Battery Weight 1.00 lb (0.455 kg) Cells/Type 8-cell Lithium-Ion Energy...
  • Page 23 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications 15.4-inch WSXGA+ wide- Dimensions (W x H) 13.0 x 8.1 in (33.1 x 20.7 cm) viewing angle, anti-glare Diagonal Size 15.4 in (39.1 cm) Surface Treatment Anti-glare Contrast Ratio 300:1 (typical) Refresh Rate...
  • Page 24 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications 160-GB 7200 rpm SATA Drive Weight 0.25 lb (113 g) Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
  • Page 25 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications 80-GB 7200 rpm SATA Drive Weight 0.25 lb (113 g) Capacity 80 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
  • Page 26 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications 120-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 120 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
  • Page 27 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications DVD/CD-RW Combo Drive Access Times Random <110 ms CD <130 ms DVD Max Data Transfer Rate 24X CD-ROM 3,600 KB/s 8X DVD 10,800 KB/s 24X CD-R 3,600 KB/s 24X CD-RW 3,600 KB/s...
  • Page 28 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications DVD+/-RW SuperMulti DL Access Times Random <175 ms CD LightScribe Drive <230 ms DVD Max Data Transfer Rate 24X CD-ROM 3,600 KB/s 8X DVD 10,800 KB/s 24X CD-R 3,600 KB/s 16X CD-RW...
  • Page 29 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications 1X BD-RE 4,500 KB/s Transfer Mode Multiword DMA Mode Interface EIDE Supported Media (read) CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW.
  • Page 30 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Audio Output Quality Frequency Response 20 Hz – 20 kHz Signal to Noise Ratio >85 dB Total Harmonic Distortion 0.01% Noise Floor -110 dB Play/Record Sampling 8 kHz – 48kHz Rate(s) 16, 20 or 24-bit...
  • Page 31 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...
  • Page 32 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Frequency Band 2.4 GHz Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,...

  • Page 33: Configuration Utility

    QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Configuration Utility Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)
  • Page 34 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Power Consumption Transmit: 1.6 Watts (average) Receive: 1.1 Watts (average) Idle mode : 30 mW (average) Radio off: 20 mW (max) Power Management ACPI compliant power management 802.11 compliant power saving mode...
  • Page 35 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications IEEE 802.11n (draft 1.02) Interoperability Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows 2000 and XP (details at http://www.hp.com/go/notebooks/WLAN) Tested with wireless access points from several major manufacturers (details at http://www.hp.com/go/notebooks/WLAN/draft-n)
  • Page 36 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Weight 0.013 lb (6 g) Dimensions 0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm) Operating Voltage 3.3V +/- 9%, 1.5V +/- 5% Temperature Operating 32° to 176° F (0° to 80° C) Non-operating –40°...
  • Page 37 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Sub-channels Multinational support with frequency bands and channels compliant to local regulations. Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points...
  • Page 38 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Configuration Utility Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support) Microsoft Windows Vista Microsoft Windows Vista Wireless Network Connection Manager LED Activity LED Off –...
  • Page 39 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Power Consumption Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode : 390 mW (nominal) Sleep mode: 20 mW (max) Power Management ACPI compliant power management 802.11 compliant power saving mode...
  • Page 40 QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Number of Available 79 (1 MHz) available channels Channels Data Rates and 3 Mbps data rate; throughput up to 2.17 Mbps Throughput Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or...

  • Page 41: Energy Star

    QuickSpecs HP Compaq 8510p Notebook PC Technical Specifications Object Push Profile (OPP)* File Transfer Profile (FTP) Synchronization Profile (SYNC) Hard Copy Cable Replacement (HCRP)* Personal Area Networking Profile (PAN)* Human Interface Device Profile (HID)* FAX Profile (FAX) Basic Imaging Profile (BIP)

  • Page 42: Additional Information

    This product is in compliance with the EU Restrictions of Hazardous Substances (RoHS) Directive – 2002/95/EC. information: This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and ISO/IEC 15412 Input devices of this product comply with ISO 9241, part 9.
  • Page 43 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/ environment/supplychain/gen_specifications.html):...
  • Page 44 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
