Summary of Contents for Transcend TS40GHDC2

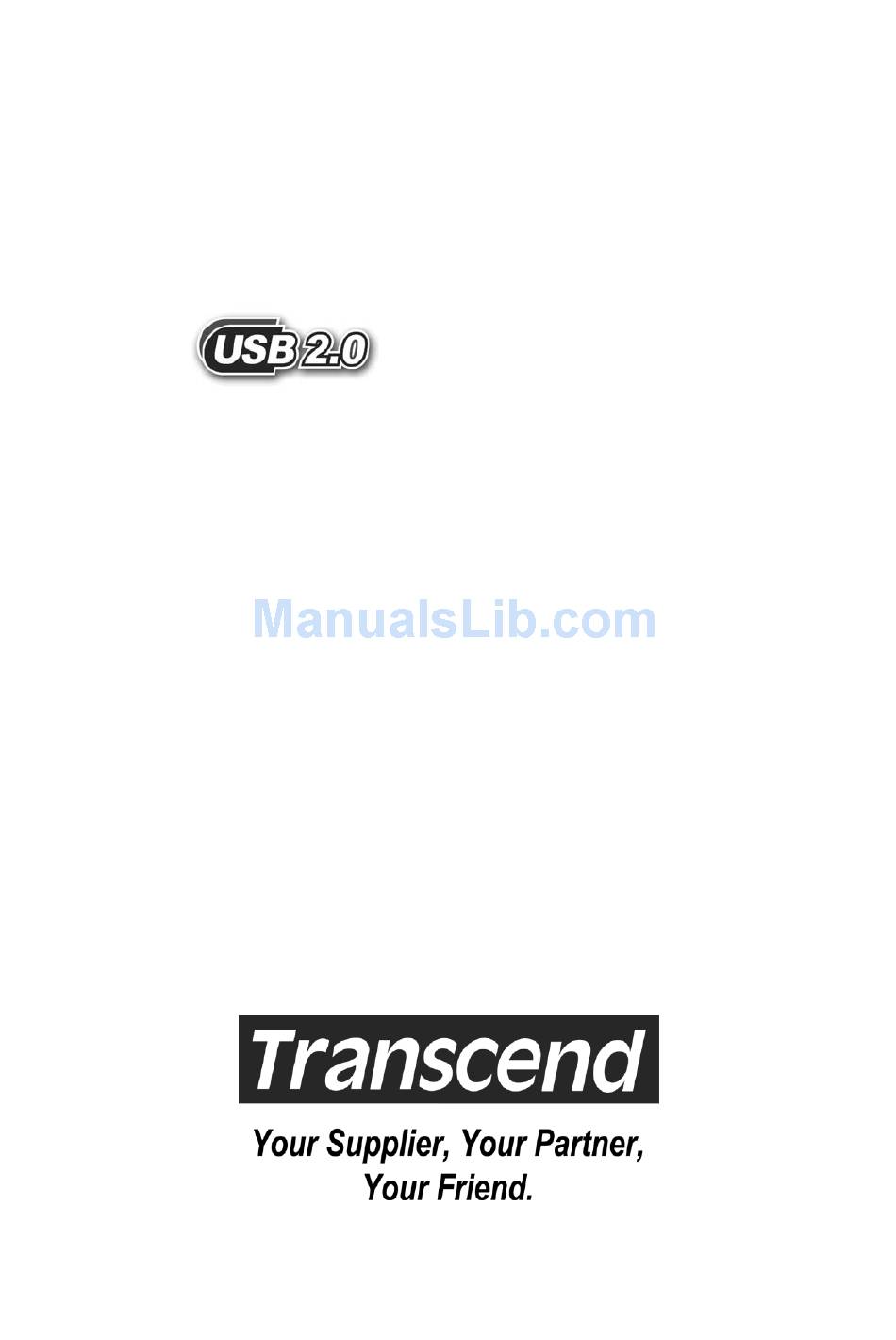

- Page 1 & IEEE 1394A 2.5” Portable Hard Disk User’s Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction Package Contents ................1 Features....................2 System Requirements ..............2 Hardware Setup ................3 2.5” Portable Hard Disk Installation Using the 2.5” Portable Hard Disk with IEEE 1394A ...... 5 Using in Windows 98SE ..............5 Remove 2.5”... -
Page 3: Package Contents

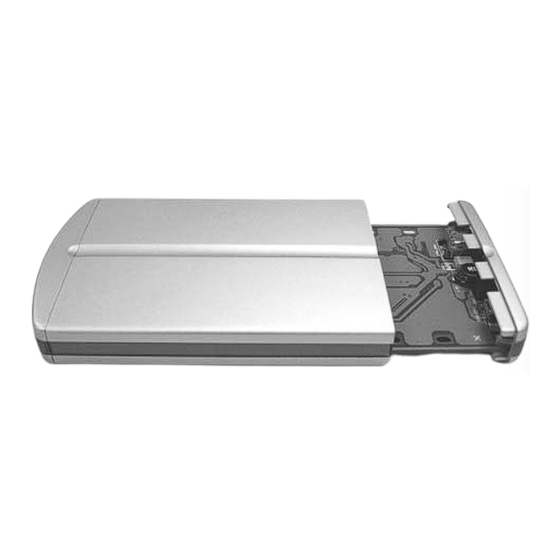

Introduction Thank you very much for purchasing the Transcend 2.5” Portable Hard Disk. This device is designed to expedite exchanging huge amounts of data between a 2.5” hard disk drive (HDD) installed in the 2.5” Portable Hard Disk and any desktop or notebook computer. -
Page 4: Features
Features The 2.5” Portable Hard Disk has the following features: Fully compatible with USB 2.0 specification • Fully backward compatible with USB 1.1 specification • Fully compatible with IEEE 1394A specification • Easy Plug and Play installation • LED indicates Power On and Data Access •... -
Page 5: Hardware Setup
Hardware Setup 1. Take out the screws and remove the back panel of the 2.5” Portable Hard Disk by pulling and sliding it slightly until it releases from the case. 2. Plug the HDD into the IDE connector and put the HDD horizontally onto the circuit board. - Page 6 4. Push and slide the circuit board into the case. The sides of the circuit board should be put into the tracks. track 5. Insert the screws into the back panel of the 2.5” Portable Hard Disk. 6. The 2.5” Portable Hard Disk is now ready for use. *Note: For some desktop or notebook computers, the 2.5”...
-
Page 7: 2.5" Portable Hard Disk Installation
2.5” Portable Hard Disk Installation Using the 2.5” Portable Hard Disk with IEEE 1394A Using in Windows 98SE 1. Power on the computer where you will connect the 2.5” Portable Hard Disk and make sure the IEEE 1394A port is enabled and working properly. 2. - Page 8 2. The Stop TS0GHDC2 IEEE 1394 SBP2 Device pop-up menu will appear. Click to remove the hardware. 3. The Safe To Remove Hardware window will appear. Click “OK”. 4. Your 2.5” Portable Hard Disk is now ready to be removed. *Note: If you don’t follow the above steps to remove the 2.5”...
-
Page 9: Using And Removing 2.5" Portable Hard Disk In Mac Os
Using and Removing 2.5” Portable Hard Disk in Mac OS Complete hardware setup and driver installation. Connect the 2.5” Portable Hard Disk to your Mac. A disk icon will appear on the desktop. You may use this device as if it were a Mac Hard Disk. If you want to remove the 2.5”... -
Page 10: Remove 2.5" Portable Hard Disk In Windows 98Se
5. Connect the 2.5” Portable Hard Disk to the USB port on your computer. (If necessary for additional power, also connect the 2.5” Portable Hard Disk to another USB port on your computer.) Your computer will automatically detect the 2.5” Portable Hard Disk and appear in Windows explorer. 6. -
Page 11: Uninstall Driver
2. The Safely Remove Hardware pop-up menu will appear. Click “Stop” to remove USB device safely. 3. Your 2.5” Portable Hard Disk is now ready to be disconnected from your computer. Uninstall Driver The driver of the 2.5” Portable Hard Disk can be uninstalled by running Add/Remove Programs in Settings/Control Panel. -
Page 12: Remove 2.5" Portable Hard Disk In Windows Me/2000/Xp
The 2.5” Portable Hard Disk is now ready for use. You can find a new drive with a newly assigned drive letter in My Computer window. Remove 2.5” Portable Hard Disk in Windows Me/2000/XP 1. Locate the green arrow icon on the system tray. -
Page 13: Using And Removing 2.5" Portable Hard Disk In Mac Os
Using and Removing 2.5” Portable Hard Disk in Mac OS Complete hardware setup and driver installation. Connect the 2.5” Portable Hard Disk to your Mac. A disk icon will appear on the desktop. You may use this device as if it were a Mac Hard Disk. 3. -
Page 14: Warning
131.5mm (L) x 82mm (W) x 20.5mm (H) Weight ································· 135 g (No HDD) Ordering Information HDD Capacity Transcend P/N TS0GHDC2 (No HDD) USB2.0 + 40GB TS40GHDC2 (40GB HDD Inside) IEEE 1394A 80GB TS80GHDC2 (80GB HDD Inside) TS0MHDENC (No HDD) USB2.0 40GB TS40GHDENC (40GB HDD Inside) 80GB... - Page 15 During the warranty period should this Transcend 2.5” Portable Hard Disk fail under normal use in the recommended environment due to improper workmanship or materials, Transcend will repair the product or replace it with a comparable one. This warranty is subject to the conditions and limitations set forth herein.
