Water connection

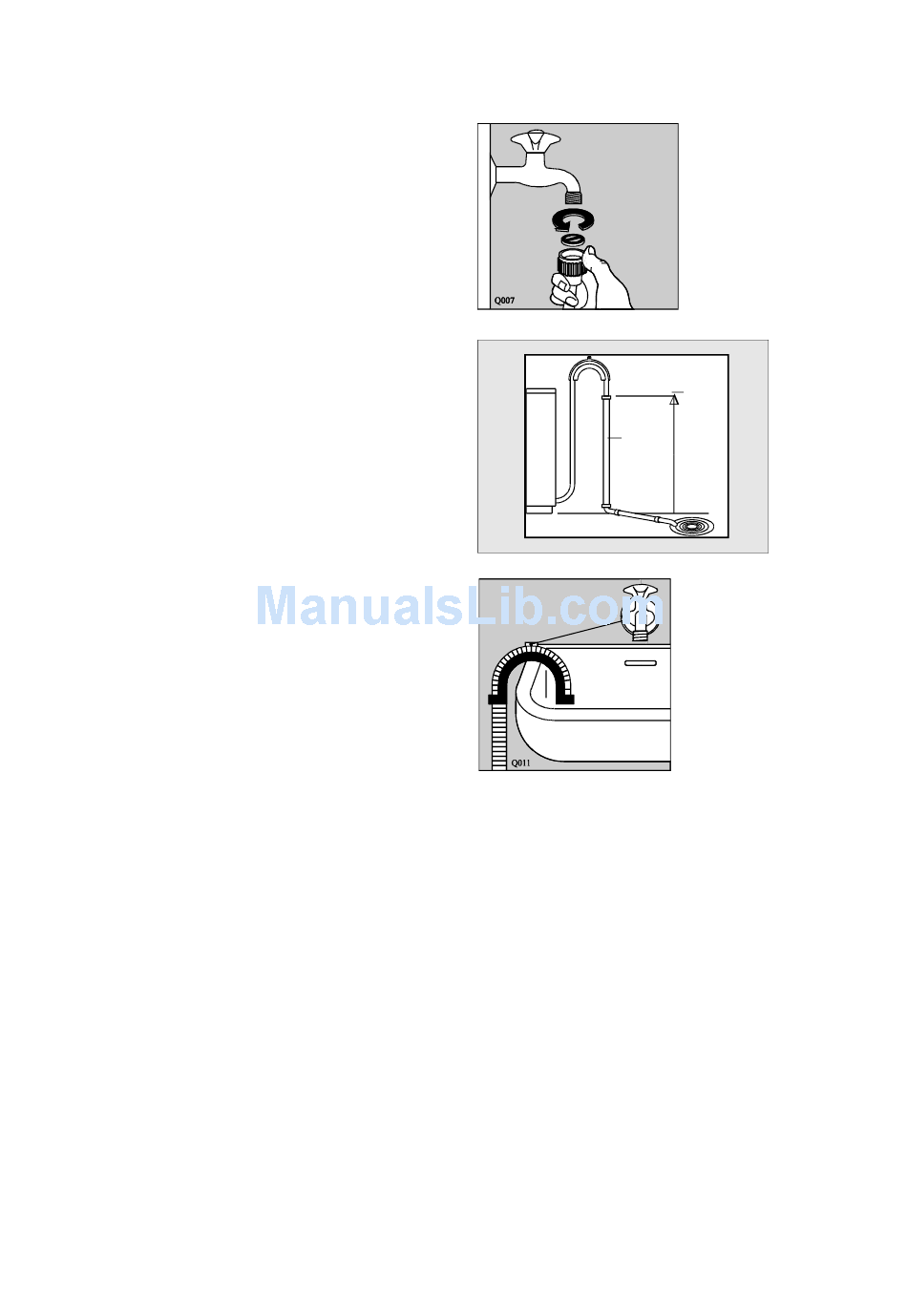

Connect the water inlet hose to a cold water tap with
a 3/4" gas threaded orifice, after having
inserted the rugger sealing washer into the hose collar
(fig.1). If the water connection is made onto new pipes
or onto pipes which have not been used for a long
time, it is advisable to run off a certain amount of water
before connecting the machine.
Place the curved end of the outled hose into a drain
Fig.1
pipe having a height between 70 and 100 cm from
floor level (fig.2) or secure it to a sink (fig.3). Make sure
that the drain hose is firmly secured so that it will not
slip out or fall down from its position.
Ø 40 mm
The water should drain freely and, consequently, the
70-100 cm
drain hose should not be choked or placed in such a
way as to obstruct the normal water flow. If an exten-
sion hose is required, remember that it might cause a
malfunction in the drain pump, particularly if the exten-
sion has a length in excess of 1 meter or if the diameter
Fig.2
of the extension is smaller than the diameter of the
original drain hose.

Electrical connection

Before you fit the plug into the wall socket, check the
following points :
1) The supply voltage of the domestic wiring system
Fig.3
does not fluctuate by more that 10%, plus or minus,
from 230 V.
2) The meter, the fuses, the supply line and the wall
socket are suitable to carry the maximum load required
by the machine (2,3 kW).
Very important :
The washing machine is provided with a feeding
wire with earth connection: it must be connected
to a plug like that is provided with a good earth
connection. The wall plug must be easily accessi-
ble.
The replacing of the power cord must only be
realized by the After Sales Service in order to
avoid any danger.
The manufacturer declines any responsibility
where the previous recommendations are not
followed.
- 18 -
