Summary of Contents for Duracell POWERPACK300
- Page 1 CELL: POWERPACK 300 Ownerls Guide...
- Page 2 DURACELL: POWERPACK 300 Owner's Guide...
- Page 3 Trademarks DURACELL® is a registered trademark of The Gillette Company, used under license. All rights reserved. XANTREX is a registered trademark of Xantrex International. Other trademarks, registered trademarks, and product names are the property of their respective owners and are used herein for identification purposes only.
- Page 4 AC and DC appliances, using the air compressor, and jump-.starting an engine. Chapter 4, "Maintenance", gives instructions for recharging the Duracell® Powerpack and changing the built-in light bulb. Chapter 5, "Troubleshooting", provides a troubleshooting guide to the Duracell® Powerpack.
- Page 5 About This Guide Conventions Used The following conventions are used in this guide. .& WARNING Warnings identify conditions that could result in personal injury or loss of life. .& CAUTION Cautions identify conditions or practices that could result in damage to the unit or to other equipment. Important: These notes describe an important action item or an item that must...
- Page 6 AC power outlet, the DC power outlet, or the ventilation holes. Do not expose this product to water, rain, snow, or spray. Do not open the Duracell® Powerpack 300. There are no user- serviceable parts inside the unit. &.
- Page 7 Do not use this product in an enclosure containing automotive-type lead-acid batteries. These batteries, unlike the sealed AGM battery in the Duracell® Powerpack 300, vent explosive hydrogen gas which can be ignited by sparks from electrical connections.
- Page 8 The jump-start feature is designed for short term operation only- less than 4 seconds. Operating the jump-start feature for more than 4 seconds may cause damage to the unit. Allow the Duracell® Powerpack 300 to cool down for at least 3 minutes after each jump- start.
- Page 9 Important Safety Information Precautions When Working With Your Vehicle Battery ._---------_._------------- & WARNING: Risk of Explosion, Fire or Burns 1. Follow all instructions published by the battery manufacturer and the manufacturer of the equipment in which the battery is installed. 2.
- Page 10 Important Safety Information 10. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters your eyes, immediately flood them with running cold water for at least twenty minutes and get medical attention immediately. 11. Keep a supply of baking soda on hand in the area of the batteries.
- Page 11 Some chargers for rechargeable batteries can be damaged if connected to the Duracell® Powerpack 300. Do not use the following with the Duracell® Powerpack 300: • Small battery-operated appliances like flashlights, razors, and night lights that can be plugged directly into an AC receptacle to recharge.
-
Page 12: Table Of Contents
Contents Introduction About the Duracel1® Powerpack 300- - - - - - - - - - - - - - - - - - - - 1 Comprehensive Protection - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Automatic Overload - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Overheating - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Low Battery Protection - - - - - - -' - - - - - - - - - - - - - - - - - - - 2... - Page 13 Battery Maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27 Recharging the Duracell® Powerpack Battery - - - - - - - - - - - - 29...
-
Page 14: Introduction
The Duracell® Powerpack has built-in protection against output overload. If you connect an appliance that draws more than 300 W to the AC power outlet on the Duracell® Powerpack, or one which draws excessive surge power, the power to the AC power outlet automatically shuts off. -
Page 15: Low Battery Protection
Comprehensive Protection Low Battery Protection Low battery protection protects the internal battery from excessive discharge and possible damage. The unit automatically turns off when the internal battery is discharged to 10.5 Vdc. -
Page 16: Features
Features Chapter 2 describes the main features of the Duracell® Powerpack 300. We recommend that you familiarize yourself with these features before operating the unit. Materials list Your Duracell® Powerpack package includes these items: Duracell® Powerpack Owner's Guide AC charger... -

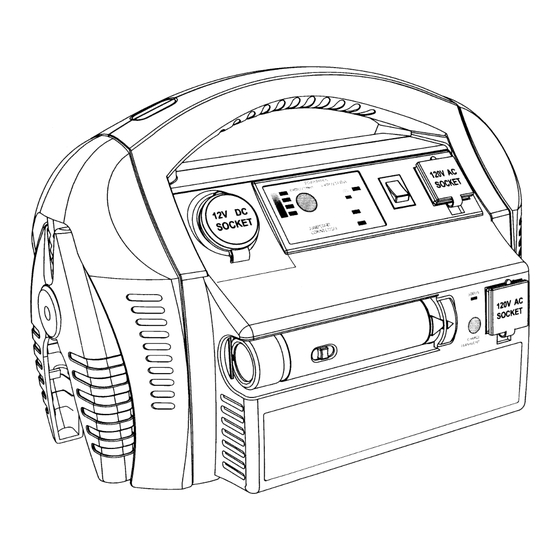

Page 17: Duracel1® Powerpack Features
• Powers .12 V DC auto, RV or marine appliances • Recharges Duracell® Powerpack from a 12 V outlet in a vehicle using the DC charging cable. Battery Level LEOs illuminate to indicate the Duracell® Powerpack battery charge level. All LEDs (two green, one yellow... - Page 18 Duracell® Powerpack Features Feature Description Battery Status LED illuminates when the Duracell® Powerpack is charging (when an AC charger is connected to the Duracell® Powerpack's AC charger input socket and plugged into the household 120 V AC outlet). Red Incorrect Jumpstart Connection LED illuminates and an alarm sounds when the jump-starting clamps are improperly connected to the vehicle battery.
-
Page 19: Left Side View
Duracell® Powerpack Features Left side View Feature Description 2 ). Pressure gauge shows the PSI (lb/in Jump-starting clamp _._-_. __ ._-_ ...._------------_._---_._--, _ - - - - - _ . _ - - - - - - - -._._----_.,-----.------------------------------_._-----_... -
Page 20: Accessories
Accessories Accessory Description AC charger lets you recharge the Duracell® Powerpack from a standard AC wall outlet and can only be used to recharge the internal battery of the Duracell® Powerpack. DC charging cable lets you recharge the Duracell® Powerpack from a 12 V system in a car, SUV, RV or a boat. -
Page 22: Operation
• Read all operating instructions before operating the Duracell® Powerpack. CAUTION The Duracell® Powerpack is not intended for use as an uninterruptible power supply. Important: The Duracell® Powerpack is not suitable for use ~!!~_~~~~i~p~~~~~_t_~ ~~~_!_~~~_~ The maximum output wattage of this product is limited to 300 watts total when supplying backup power from its batteries. -
Page 23: Choosing A Location
Ambient air temperature should be between 0 and 40°C Cool (32 and 104°F)-the cooler the better within this range. Leave at least 2" (5 cm) clearance around the Duracell® Powerpack for air flow. Ensure that the ventilation openings Ventilated are not obstructed. -
Page 24: Using Duracel1® Powerpack For The First Time
Using Duracell® Powerpack for the First Time Important: Prior to operating your AC appliance or 12 V DC appliance, ensure that the battery of the Duracell® Powerpack is fully charged. If the battery has been fully discharged, recharging ~~!~ !~~~~_~~~~g~~_!D~y t~k~ ul?_!~... - Page 25 Powerpack assumes that there is 120 V AC at the AC wall outlet. If the voltage is less than 120 V AC, it may take more than 24 hours to fully recharge the Duracell® Powerpack. If, after 24 hours of charging, the Battery Status LED remains red, continue to charge the unit for another 12 hours.
-
Page 26: Using The Flashlight
Duracell® Powerpack for dirt, corrosion or debris. WARNING: Shock hazard Ensure the Duracell® Powerpack is unplugged from all AC and DC power before checking the metal contacts in the flashlight compartment. The contacts may be cleaned using an alcohol swab. - Page 27 LED at a time, rather than dimming all the LEDs. The flashlight recharges whenever the Duracell® Powerpack is charging with the AC charger or DC charging cable. When a source of charging power is not available, you can recharge the flashlight from the Duracell®...
-
Page 28: Operating Ac Appliances
Note: The fewer watts an AC appliance uses, the longer the Duracell® Powerpack will operate before recharging is required. Typical AC appliances that can be used on the Duracell® Powerpack are listed in Table 3-1. Table 3-1 AC Appliances and Run Times... -
Page 29: High Surge Appliances
Trouble Appliances &. CAUTION The output of the Duracell® Powerpack's inverter is a non- sinusoidal modified sine wave. Some equipment may be damaged by the Duracell® Powerpack's inverter modified sine wave (non- sinusoidal) output. Some appliances, including the types listed below, may be damaged if they are connected to the inverter: •... -
Page 30: Operating Several Appliances At Once
3. Plug the AC appliance into an AC power outlet and tum the appliance on. Duracell® Powerpack will operate most devices rated up to 240 W. 4. Recharge the Duracell® Powerpack as soon as possible after each use. In the event of an overload, low battery voltage or overheating, the Duracell®... -
Page 31: Operating 12 V Dc Appliances
Operating 12 V DC Appliances Operating 12 V DC Appliances The Duracell® Powerpack can operate 12 V DC auto, RV, marine, or other portable appliances that draw 12 A or less from a 12 V DC power outlet or from a vehicle's lighter socket. -
Page 32: Jump-Starting A Vehicle's Engine
If the 12 V DC appliance draws more than 12 A (or has a short-circuit defect), the internal circuit breaker of the Duracell® Powerpack shuts off the power to the 12 V DC appliance. If this occurs, unplug the 12 V DC appliance. - Page 33 3. Ifjump-starting a boat engine, purge the engine compartment and bilge of all fumes before jump-starting. 4. Position the Duracell® Powerpack on a flat, stable surface near the battery and away from all moving parts of the engine. Ensure that the jump-starting power switch is OFF.
- Page 34 Operating the jump-start feature for more than 4 seconds may cause damage to the unit. Allow the Duracell® Powerpack to cool down for at least 3 minutes after each jump-start. 9. Switch the jump-starting power switch.
-
Page 35: Using The Air Compressor
It is recommended that you follow the warnings and tum the compressor off for 10 minutes after every 10 minutes of operation. However, the Duracell® Powerpack 300 is equipped with an over-temperature safety protection feature that automatically turns the compressor off if it begins to overheat. -
Page 36: Inflating Tires
This may damage the Duracell® Powerpack 300. Remove and reattach the valve connector to the valve stem. To inflate your vehicle, motorcycle, or bicycle tires: 1. -
Page 37: Inflating Small Sports Equipment
You can use the compressor to inflate small sports equipment such as soccer balls and footballs. CAUTION The Duracell® Powerpack 300 cannot be used to inflate large capacity inflatables such as float tubes, large air mattresses, and inflatable boats. These types of products require extended inflating times that may damage the compressor. -
Page 38: Connecting To An External Battery
You can extend battery operating times by connecting the Duracell® Powerpack to a larger external battery. For example, an external 60 Ah battery gives approximately five times the operating time of the Duracell® Powerpack internal 12 Ah battery. .& WARNING: Fire hazard Never allow jump-start cables' red and black clamps to touch each other or another common metal conductor. - Page 39 3. Store the jump-start clamps in the appropriate holder on each side of the Duracell® Powerpack. 4. Recharge the Duracell® Powerpack as soon as possible after use. CAUTION Do not recharge the Duracell® Powerpack when an external battery is connected. The AC charger may be damaged.
-
Page 40: Maintenance
Chapter 4 provides infonnation on maintaining your internal battery, recharging options for the internal battery, and replacing user-replaceable parts. Routine maintenance is required to keep your Duracell® Powerpack 300 operating properly. Occasionally clean the exterior of the unit with a damp cloth to remove the accumulated dust and dirt. - Page 41 3 months, may result in permanent battery damage and poor jump-starting performance. &. CAUTION Do not attempt to recharge the Duracell® Powerpack battery if it is frozen. Gradually warm the frozen battery to (32°F) before recharging.
-
Page 42: Recharging The Duracell® Powerpack Battery
Recharging with the AC charger is a true "plug-in-and- forget" charging method. ..&. CAUTION Do not operate AC or DC appliances with the Duracell® Powerpack while the Duracell® Powerpack is being recharged with the AC charger. The AC charger may be permanently damaged if AC appliances or 12 V DC appliances are operated while the AC charger is connected. -
Page 43: Recharging With The Dc Charging Cable
Powerpack assumes that there is 120 V at the AC wall outlet. If the voltage is less than 120 V AC, it may take more than 24 hours to fully recharge the Duracell® Powerpack. If, after 24 hours of charging, the Battery Status LED is still red, continue to charge the unit for another 12 hours. - Page 44 Recharging the Duracell® Powerpack Battery CAUTION Do not operate AC or DC appliances while the Duracell® Powerpack is being recharged with the DC charging cable from your vehicle. To recharge the Duracell® Powerpack while you drive using the DC charging cable: 1.
-
Page 45: Recharging With A Generator's Regulated 12 V Dc Outlet
Using a generator with a regulated 12 V DC lighter socket. Follow the connection instructions in "Recharging with the DC Charging Cable" on page 30. Using the AC charger to recharge the Duracell® Powerpack from a generator is possible, but would require extended generator running time. -
Page 46: Recharging From A Solar Panel
Figure 4-1 Typical DC Coaxial Connector Connection Once the connector is inserted into the AC charger input socket and the solar panel is placed in the sun, the Duracell® Powerpack charges automatically just as with the AC charger. See "Recharging with the AC Charger" on page 29. -
Page 47: Recycling
Recycling Recycling If it's rechargeable, it's recyclable! Xantrex recognizes its responsibility as a global citizen and is continually striving to reduce the environmental impact of the work we do and the products we create. We have taken a step forward to limit our impact on the natural environment by initiating a battery recycling program. - Page 48 Recycling Pb Batteries (larger than 2 lbs. or 1 kg) If you need to recycle a Pb battery that is larger than 2lbs. (1 kg) then you may take one of the following three steps to recycle your battery: • dispose of your battery product 'as is' at a battery disposal location or waste disposal location nearest you.
-
Page 50: Troubleshooting
Troubleshooting will help you identify the common problems than can occur with the Duracell® Powerpack 300. If you cannot solve the problem with the Duracell® Powerpack, record the information asked for on "Information About Your System" on page 50 and then contact your dealer. -
Page 51: Troubleshooting Reference
Troubleshooting Reference .Lh. WARNING: Electric shock hazard Do not remove the cover of the Duracell® Powerpack or disassemble the Duracell® Powerpack. The Duracell® Powerpack does not contain any internal user-serviceable parts and attempting to service the unit yourself could result in electrical shock or burn. - Page 52 Unplug the appliance and shutdown requirements exceed the confirm that the appliance's capability of the power requirement is 300 W or Duracell® Powerpack. less before attempting to restart the appliance. Run time is Duracell® Powerpack Recharge using the AC charger,...
- Page 53 Unplug the charging sources and LED is red and only accurate when the any appliances and let the Battery Level Duracell® Powerpack has Duracell® Powerpack rest for 15 minutes to obtain an accurate LEDs show been disconnected from the battery is all appliances and all reading.
- Page 54 The engine condition is Have the engine serviced. poor. The engine start capacity Use a higher power Duracell® exceeds the Duracell® Powerpack. Powerpack jump-start capability. The jump-start Jump-start power switch is Tum the jump-start power...
- Page 55 Table 5-1 ,Solution Problem Possible Cause An LED in the Flashlight is reaching the Plug the Duracell® Powerpack flashlight is end of internal ,battery into an AC or DC power source not lit. power. and place the flashlight back in the flashlight compartment for recharging.
-
Page 56: Specifications
Specifications Electrical Specifications Section _.._* ----_.~~ Sealed/non-spillable, AGM Internal battery type (Absorbed Glass Mat) lead- acid •..• •... _--"_.,_ •..-- ..- _------_._ _-----_._-_ _----_.-_ _---_ _-.--_ ....• ..• ....•..•..• •..•..... - Page 57 Electrical Specifications AC Power Section L----~·-- Output power I· Continuous output power 240 W I· Peak output power I· Peak AC output surge capacity . . . Output voltage ± 10 V AC RMS . --J - -.- - -. . - . - -..... . . - . . - . . - . - -- . . - --.-. . l - - - -..-..----.- -.--.-- -- - -.
-
Page 58: Physical Specifications
- - - - - - - - - - - - - - - - - - - - - - Compressor nozzles Part 160-0015-01-01 Physical Specifications -------.-.----------------·-··--r--··---·--··--------------···-·--------------------.-. . - -.-------------------.-------.--. . - --.-------.-- --··-·--··-·-····--·····--··----···----··--···-·-···---.---.. - ..---..----------.-.. Physical specifications Duracell® Powerpack I--------------------------t ----- Length 12.5" (31.7 ,---- Width 9.25" (23.4 Height S.O"... -
Page 60: Warranty And Return
Technology Inc. ("Xantrex") and covers defects in workmanship and materials in your Duracell® Powerpack 300. This warranty period lasts for 6 months from the date of purchase at the point of sale to you, the original end user customer. You require proof of purchase to make warranty claims. - Page 61 Warranty and Return What does this warranty not cover? This Limited Warranty does not cover normal wear and tear of the product or costs related to the removal, installation, or troubleshooting of the customer's electrical systems. This warranty does not apply to and Xantrex will not be responsible for any defect in or damage to: a) the product if it has been misused, neglected, improperly installed, physically damaged or altered, either internally or externally, or damaged from improper use or...
- Page 62 Warning: Limitations On Use Please note that the Duracell® Powerpack 300 is not intended for use as an uninterruptible power supply and Xantrex makes no warranty or representation in connection with any use of the product for such purposes.
- Page 63 Warranty and Return Out of Warranty Service If the warranty period for your Duracell® Powerpack 300 has expired, if the unit was damaged by misuse or incorrect installation, if other conditions of the warranty have not been met, or if no dated proof of purchase is available, your unit may be serviced or replaced for a flat fee.
- Page 64 t 1 408 987 6359 www.xantrex.com/support 975·0338·01·01 REV. B Printed in China...
- Page 65 NOTE! PLEASE REMOVE ACCESSORIES FROM THE OUTSIDE OF THE STYROFOAM BEFORE DISCARDING THE PACKAGING ATTENTION! VEUILLEZ ENLEVER ACCESSOIRES DE L'EXTERIEUR DE LA MOUSSE DE STYROL AVANT DE JETER LlMPAQUETAGE i NOTA! QUITAR POR FAVOR LOS ACCESO- RIOS DEL EXTERIOR DEL STYROFOAM ANTES DE DESECHAR EL EMPAQUETADO...
