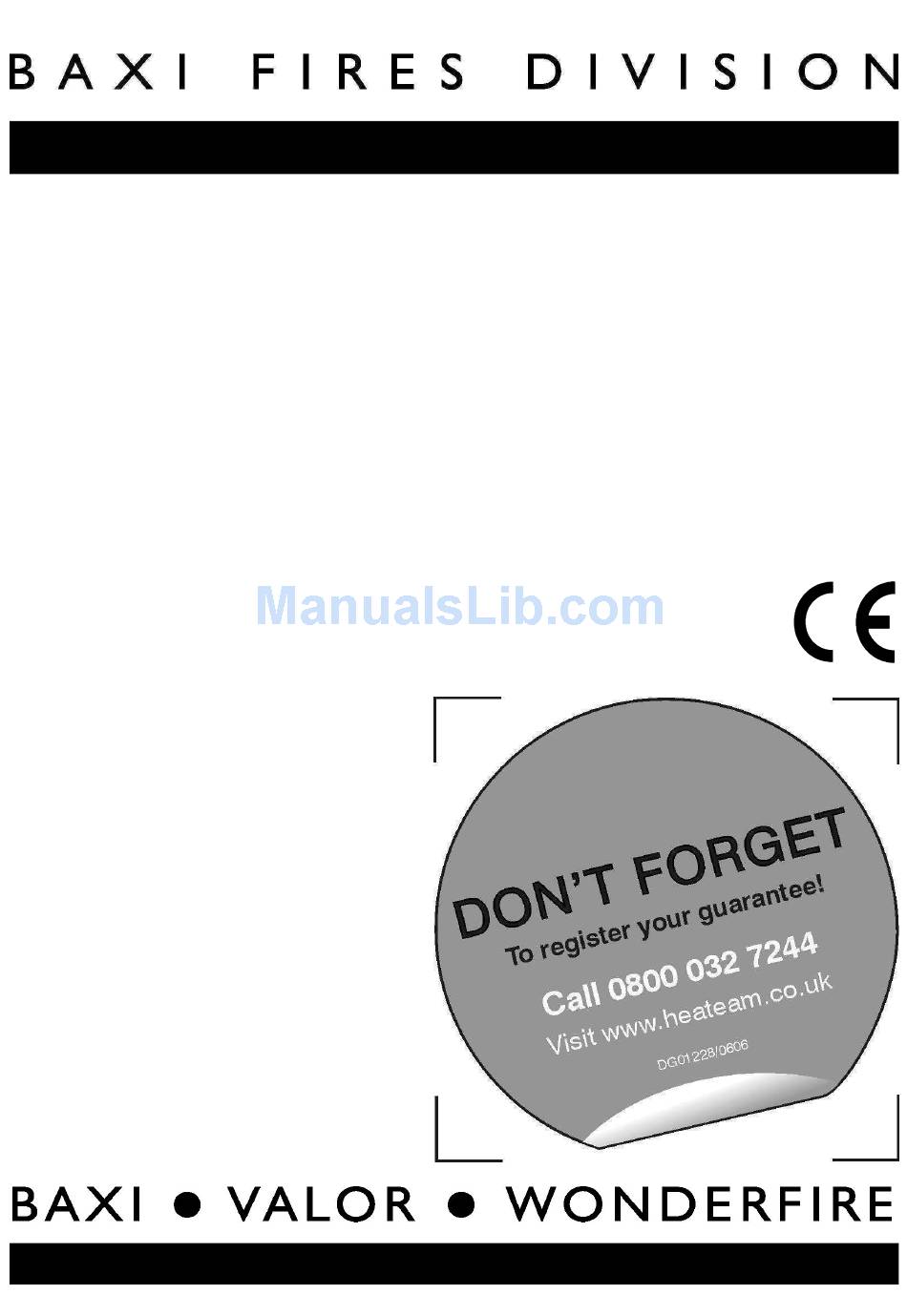

INSTALLER AND OWNER GUIDE
Model 828
Electric Heater
Fitted with one of the following fascia
Adage, Anthem, Bolero, Capri,
Carma, Coast, Decadent, Dream,
Eternal, Flare, Obsession, Prelude,
Style
(G.C. No. EF-032-21)
This guide is intended to help you
install and care for your Baxi Fires
Division electric heater. Please read
carefully before installing and using
your heater. However, if further
information is required, our
Baxi Fires Division Technical
Helpline
will be pleased to help.
Telephone 08706 061 065
(National call rates apply in the United
Kingdom)
In the Republic of Ireland
Telephone 0044 8706 061 065
Important: Please keep your guide in a safe place for future reference
©
Baxi Heating U.K. Limited 2006.
Victorian.
or
5117528/04
