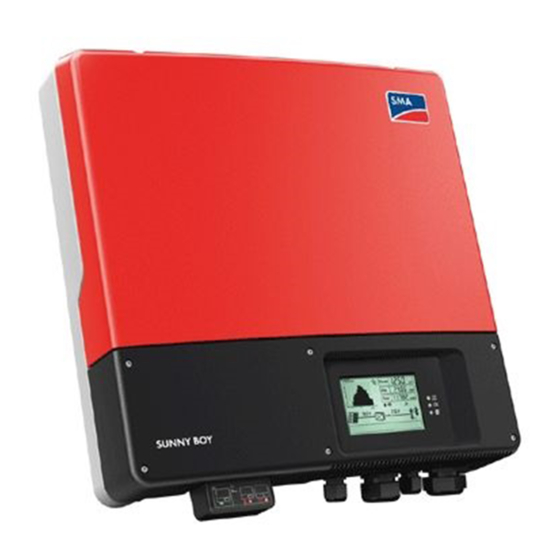

SMA SUNNY BOY 3000TL User Manual

CONTACT
If you have technical problems, first contact your installer. The following information is required in
order to provide you with the necessary assistance:
• Inverter device type
• Inverter serial number
• Type and number of PV modules connected
• Event number or display message of the inverter
• Optional equipment (e.g. communication devices)
SMA Solar Technology Ag
Sonnenallee 1
34266 Niestetal, Germany
www.SMA.de
SMA Serviceline
Inverters: +49 561 9522 1499
Communication: +49 561 9522 2499
Fax: +49 561 9522 4699
E-Mail: Serviceline@SMA.de
Installer contact

ExPLANATION Of SYMBOLS

Symbols on the Inverter
Operation display.
An error has occurred. Please inform your installer immediately.
Bluetooth ® . Bluetooth communication is active.*
Symbols on the Type Label
Beware of dangerous electrical voltage.
The inverter operates at high voltages. All electrical work on the inverter may be
carried out by qualified personnel only.
Beware of hot surface.
The inverter can become hot during operation. Avoid contact during operation.
Observe the enclosed documentation.
The inverter must not be disposed of with the household waste.
Further disposal information can be found in the enclosed installation guide.
CE mark. The inverter complies with the requirements of the applicable EC
guidelines.
Device class label. The inverter is equipped with a wireless component that complies
with the harmonized standards.
Certified safety.
The inverter complies with the requirements of the Equipment and Product Safety Act
in Europe.
RAL quality mark for solar products. The inverter complies with the requirements of
the German Institute for Quality Assurance and Labeling.
Direct Current (DC)
Alternating Current (AC)
The inverter is protected against penetration by dust particles and water jets from
any angle.
The inverter is transformerless.
*The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
of these marks by SMA Solar Technology AG is under license.
PV Inverter
SUNNY BOY 3000TL / 4000TL / 5000TL
User Manual
SB30TL_40TL_50TL-BEN101630 | IME-TB-SBXTL-20 | Version 3.0
VISUAL INSPECTION, MAINTENANCE AND CLEANINg
Visual Inspection
Check the inverters and the cables for visible external damage. Contact your installer if you find any
defects. Do not perform any repair work yourself.
Maintenance and Cleaning
Ask your installer to check for proper inverter operation at regular intervals.
gLOSSArY
AC
Abbreviation for "alternating current".
Bluetooth
Bluetooth is a radio technology that allows the inverter and other communication devices to
communicate with each other. Bluetooth communication does not require visual contact between the
devices.
DC
Abbreviation for "direct current".
Electronic Solar Switch (ESS)
The Electronic Solar Switch is part of the inverter's DC disconnection unit. The Electronic Solar Switch
must be securely inserted into the bottom of the inverter and may
only be removed by qualified personnel.
PV
Abbreviation for photovoltaics.
EN
