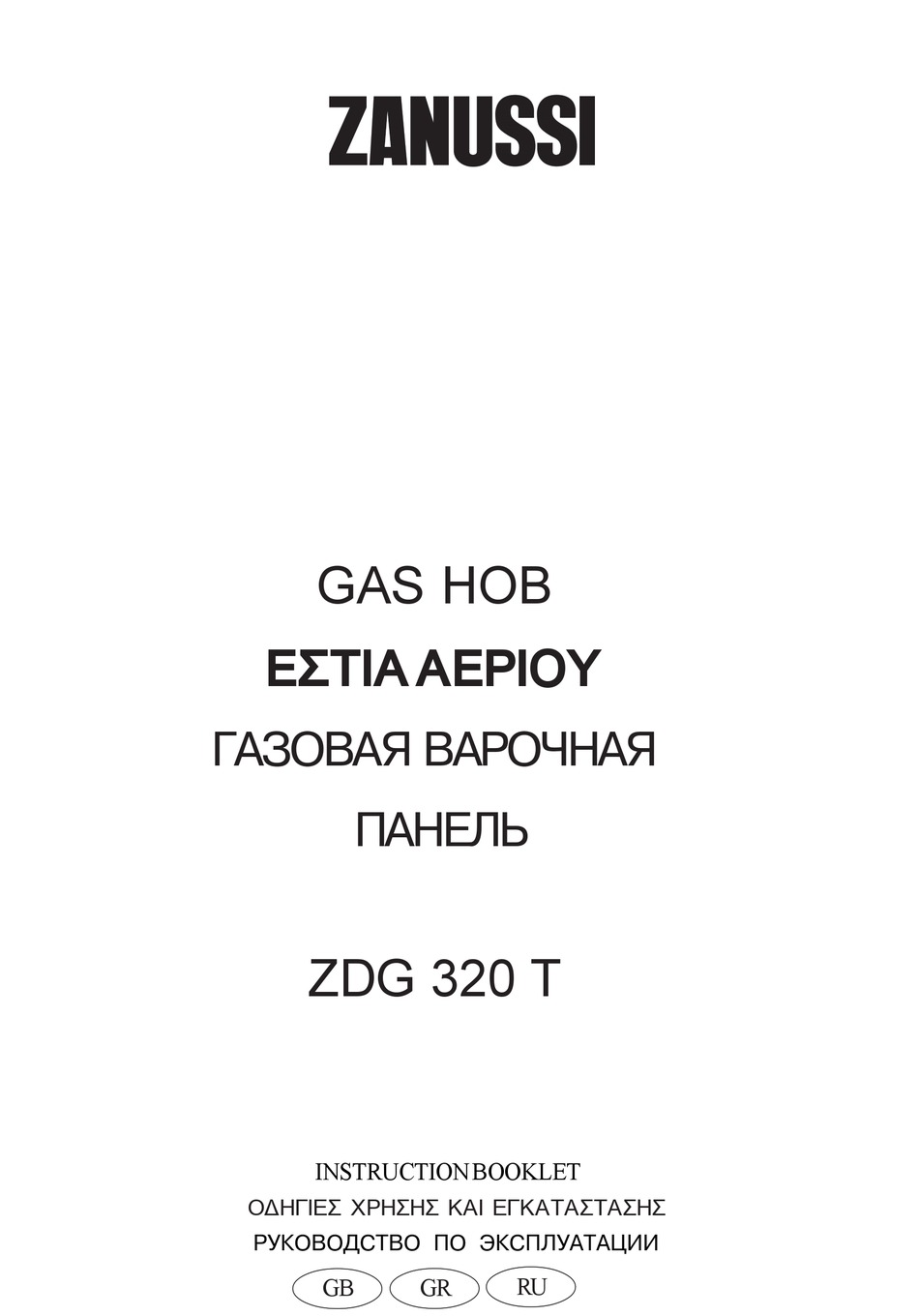

- Page 1 GAS HOB ≈”‘…¡ ¡≈–…œ’ ZDG 320 T INSTRUCTION BOOKLET œƒ«√…≈” ◊–«”«” ¡… ≈√ ¡‘¡”‘¡”«”...
-
Page 2: For Your Safety
Refer to your local Zanussi Service • The manufacturer disclaims any responsability Centre. Always insist on genuine Zanussi spare parts. should all the safety measures not be carried out. • Ensure that all control knobs are in the OFF position when not in use. -
Page 3: Table Of Contents
Contents 1. Instruction for the User ....Pag. 3 5. Electrical Connection ..... Pag. 6 6. Adaptation to different 2. Cleaning and Maintenance ..... Pag. 4 types of gas ........Pag. 7 3. Technical Data ........Pag. 4 7. Building In ........Pag. 8 4. -
Page 4: Cleaning And Maintenance
2. Cleaning and Maintenance • Disconnect the appliance from the electrical supply, before carrying out any cleaning or manteinance work. Wash the enamelled components with warm soapy water. Never use abrasive cleaners Frequently wash the "caps" and the "crowns" with hot soapy water, carefully taking away any built-up of food. -
Page 5: Instruction For The Installer
4. Instruction for the Installer The following instructions about installation and IMPORTANT - To ensure a correct operation, a saving maintenance must be carried out by qualified of energy and the long-life of the appliance, the feeding personnel in compliance with the regulation in pressure of the appliance must correspond to the force. -
Page 6: Electrical Connection
5. Electrical Connection The appliance is designed to be connected to 230 V monophase electricity supply. The connection must be carried out in compliance with the laws and regulations in force. Before the appliance is connected: 1) check that the main fuse and the domestic installation Neutral can support the load (see the rating label);... -
Page 7: Adaptation To Different Types Of Gas
6. Adaptation to different types of gas INJECTORS REPLACEMENT • Remove the pan supports. • Remove the burner's caps and crowns. • With a socket spanner 7 unscrew and remove the injectors (Fig. 7), and replace them with the ones required for the type of gas in use (see table 2-2a). -
Page 8: Building In
7. Building In INSTALLATION AND ASSEMBLY These hobs can be installed in a kitchen unit with an opening for insertion whose dimensions are shown in Fig. Carry out the building in of the hob as follows: • put the relevant sealings, supplied with the hob, on the edges of the cut out, taking care that the sealings meet without overlapping;... - Page 9 POSSIBILITIES FOR INSERTION Kitchen unit with door Proper arrangements must be taken in designing the forniture unit, in order to avoid any contact with the bottom of the hob which can be heated when it is operated. The recommended solution is shown in Fig. 11. The panel fitted under the hob should be easily removable to allow an easy access if a technical assistance intervention is needed.
