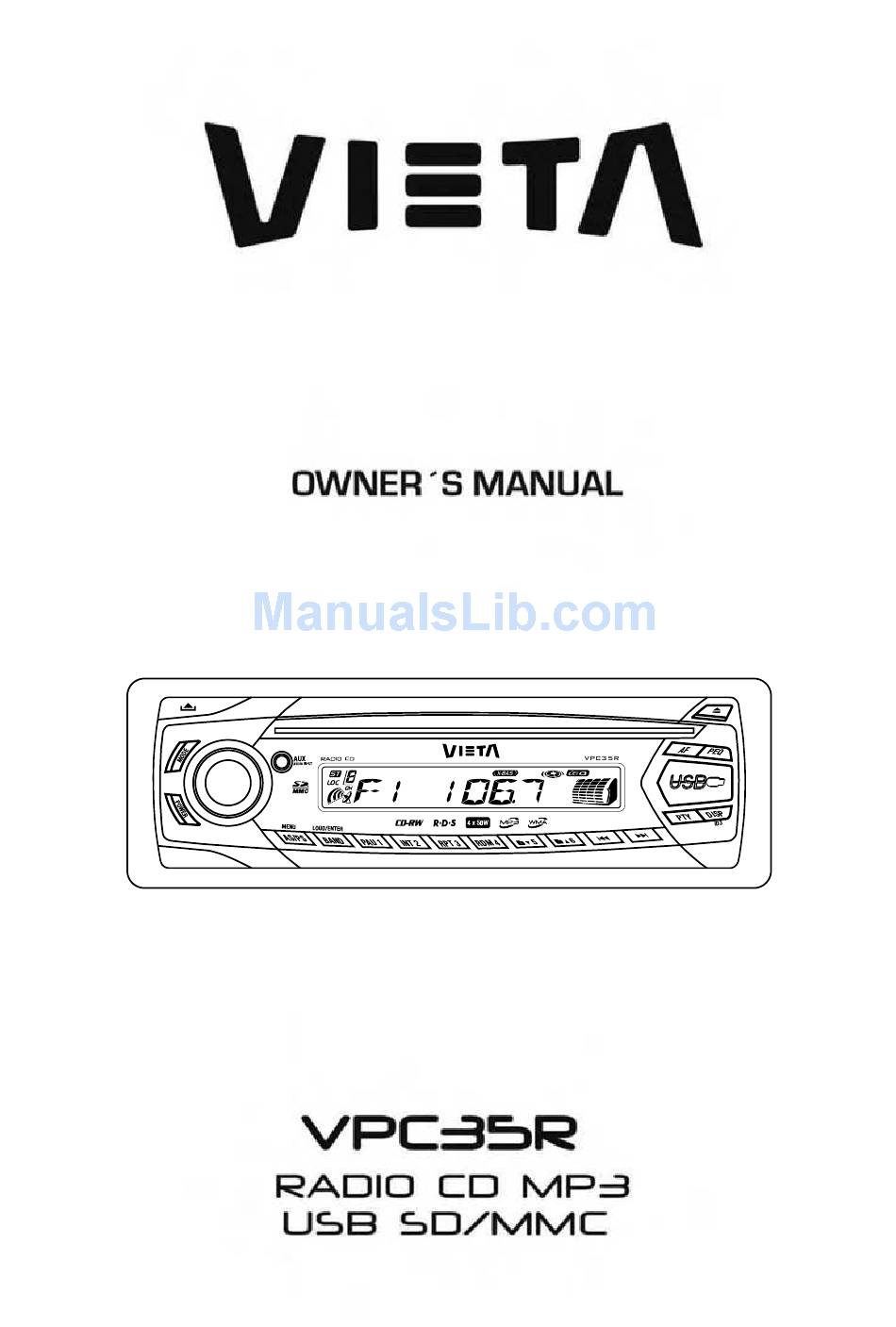

Summary of Contents for VIETA VPC35R
-
Page 3: Handling Compact Discs
1. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated. -
Page 4: Installation
2. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. -
Page 5: Din Rear-Mount (Method B)
Removing the unit a. Frame b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.) c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click. - Page 6 3. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). 1. Turn the power off 2. Press the D.C.P . release button 3. Remove the D.C.P . PANEL RELEASE BUTTON Attaching the DCP 1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P .
- Page 7 4. WIRING DIAGRAM (20 PIN + ISO + SMALL CONNECTORS) ANTENNA SHOCKET ANTENNA JACK FUSE 20-PIN AUDIO/POWER HARNESS WHITE (See Figure 1) YELLOW AUX IN RCA-TO-RCA CABLES (not supplied) WHITE REAR LINE OUT GREY WARNING Connecting the ISO Connector The pin arrangement for the ISO connectors depends on the type of vehicle you drive.Make sure to make the proper connections to prevent damage to the unit.
-
Page 8: Basic Operations
5. BASIC OPERATIONS 1) PANEL RELEASE BUTTON ( Press this button to remove the control panel. 13) POWER ON/OFF BUTTON ( Press this button to turn on or off the power. 11) DISPLAY BUTTON( DISP ) Press this button to view Clock, Programme Type (PTY), and Frequency of the station in listening. 12) MODE BUTTON (M) Press this button to select different mode , sequence as follow: A) Tuner mode (Radio) -
Page 9: Audio Operations
6. AUDIO OPERATIONS 2) ENCODER VOLUME KNOB Turn this knob to adjust desired volume level. 3) AUDIO SELECT BUTTON Press this button to select desired audio function. ORDER OF FUNCTION: VOL->BASS (BAS)->TREBLE (TRE)->BALANCE (BAL)-> FADER (FAD) While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds, otherwise the unit will return to volume adjustment mode. -
Page 10: Radio Operations
7. RADIO OPERATIONS 9) RADIO SIGNAL STRENGTH METER (RSLM) This is use to indicate the signal strength of current radio station broadcast. When you choose RADIO mode, it will show on the display. Best Worst reception reception 10) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS) 1.PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset stations in the memories, you can hear that it will stay on each station for about 5 seconds. -
Page 11: Rds Operations
8. RDS OPERATIONS 5) AF BUTTON(ALTERNATIVE FREQUENCIES) When pressed short, AF switching mode is selected. When AF switching mode is selected, the radio check the signal strength of the AF all the time. When pressed long, it is activated as regional mode ON/OFF. - Regional mode ON: AF Switching or PI SEEK is implemented to the station which have all PI codes are same as current station. -
Page 12: Overview Of The Rds Function
OVERVIEW OF THE RDS FUNCTION Radio Data System (RDS) is a broadcasting service that allows FM stations to send additional digital information along with the regular radio program signal. Your car stereo offers you a variety of services. Here are just a few: - PI (Program identification) It is a code that identified RDS stations;... - Page 13 PROGRAMMABLE OPTIONALS To use this function keep press long SEL Button for few seconds, each time you press this button the mode will move and the functions will shown on the display, turn the encoder volume knob up/ down to set the desires functions ,the function states as following: - PI SOUND, PI MUTE When the vehicle is crossing the area where two stations with same AF but different PI code can be received at the same time, the receiver will become unstable, under this situation two modes can be...
- Page 14 9.CD OPERATIONS 4) CD SLOT Insert the disc into CD slot. The CD will begin to play. M1) PAUSE BUTTON ( Press this button to pause CD play, press again to release pause. M2) SCAN BUTTON (SCN) Press this button, the first 10 seconds of each track will be played sequentially until this button is pressed again, then normal play will resume at the current track.
- Page 15 PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE OPERATING THE UNIT 10. USB DRIVE OPERATIONS COMPATIBILITY Due to the fast changing technology world, this unit may or may not P .1 be compatible to all the USB drive / device available with all the future technology, especially those USB drive / device which require to install a driver.
-
Page 16: Sd/Mmc Operations
11. SD/MMC OPERATIONS 1.Press panel release button to release the front panel.(P .1) 2.The SD/MMC card slot is located on the unit as indicated in (P .2). 3. Insert the SD/MMC card into the card slot in the correct direction until a “CLICK” sound is heard.(P .3) 4.Close the front panel.(P .4) P .2... -
Page 17: Mp3/Wma Operations
12.MP3/WMA OPERATIONS Notes : This unit support : MPEG1/2/2.5/ Layer 2/3 WMA Version 7/8/9 Sampling frequency - MPEG1 : 32/44.1/48 KHz - MPEG2 :16/22.05/24 KHz - MPEG2.5 : 8/11.025/12KHz - WMA : 22/32/44/48KHz Sampling But rate - MP3/WMA : 32~320Kbps & VBR CDROM Mode 1 / 2 ISO9660 Level 1 / 2 &... -
Page 18: Search Directory
TUNE UP / DOWN Button (TUNE DOWN First). The selected file can be played by pressing MP3 Enter Button The distribution of alphabetical characters are listed as follow : Button MODE TUNE DN TUNE UP VOL UP/DN Character Y,Z, Space _,-,+ Move Cursor Next/Previous Character A,B,C D,E,F G,H,I J,K,L V,W ,X M,N,O P ,Q,R S,T,U... -
Page 19: Specifications
13.SPECIFICATIONS CD PLAYER Compact disc audio system System Compact disc Usable disc 44.1KHz Sampling frequency 1bit No of quantization bits 5-20,000Hz Frequency 2 stereo Number of channels 70dB S/N Ration RADIO SECTION 87.5-108 MHz Frequency Range 10.7 MHz Intermediate Frequency Better than 15dB at S/N 30 dB Usable Sensitivity 25 dB at 1KHz... -
Page 20: Troubleshooting
14.TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution If the power supply is properly connected No power The car ignition is not on. - Page 21 VIETA AUDIO S.A. Mar Caribe, 3 (Pol. Ind. La Torre del Rector) Sta. Perpetua de Mogoda - Barcelona T +34 935 443 773 / F +34 935 603 214 SPAIN WWW.vieta.es...
