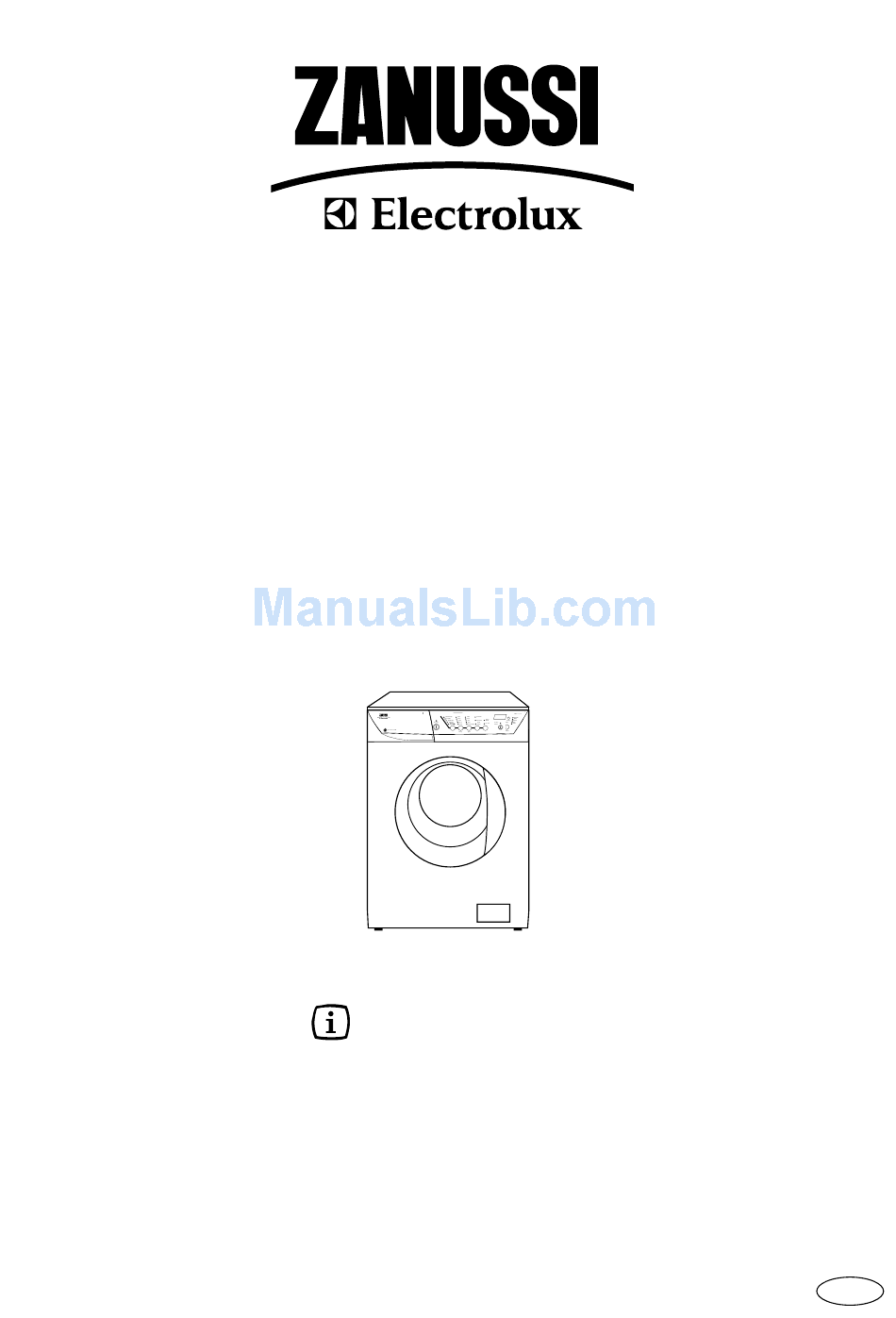

WASHING MACHINE ZWF 1231 W - ZWF 1431 W ZWF 1431 S - ZWF 1631 W Quick Installation Guide: visit our WEB SITE to view an install video www.video.uk.electrolux.com INSTRUCTION BOOKLET 132986730... -
Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User Maintenance and Cleaning 17-18 Descaling Important Safety Information After each wash Maintenance Wash Your New Washing Machine External cleaning Description of the Appliance Cleaning the dispenser drawer Detergent dispenser drawer Cleaning the drawer recess Child safety feature Cleaning the pump 17-18 Cleaning the water inlet filter... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine, which is fitted with the New Jet System, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Even small loads are washed “economically” because the amount of water used is regulated automatically according to the load and type of fabric. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 Control panel 3 Door opening handle 4 Drain pump 5 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener Child safety feature This machine incorporates a special child safety feature to prevent small children from being trapped inside the machine. -
Page 6: The Control Panel
The Control Panel ZWF 1231 W 1 “On/Off” button 4 “Temp.” button Press this button to switch the washing machine on. Press this button repeatedly to increase or decrease the The display will show three flashing dashes or a temperature, if you want your laundry to be washed at a flashing zero. -
Page 7: Turning The Acoustic Signal Off
• “Rinse Hold” position: • Extra Quick: select this option for laundry that is when you choose this option, the machine will not drain only slightly soiled (not available for Cottons Daily the water of the last rinse, so as not to crease the and Wool/Handwash programmes). - Page 8 • Duration of washing programme in hours and • Delay start, a time value indicated in hours and selected by means of the relevant button (max 23 minutes, after you have selected a programme. hours). While the programme is running (after you have pressed the “Start/Pause”...
-
Page 9: Skip/Reset" Button
9 “Start/Pause” button The “Skip” button is then used to cancel or advance the programme to the required phase. This button has two functions: The “Skip” button can only operate during the selection • Start: after you have selected the desired programme of the programmes or when the programme is in pause. - Page 10 To select Drain only, press the “Skip” button three 12 Programme phase indicator times, the wash - rinses - spin LED,s go out. lights The spin LED only remains alight. When you select a programme, the lights relevant to the phases that form the programme light up.
-
Page 11: Operating Sequence
Operating Sequence Before the first wash, we recommend that you run a Close the drawer gently. cotton cycle at 95°C, without any laundry in the machine, to remove any manufacturing residue from the 4. Switch the machine on drum and tub. Press the “On/Off”... -
Page 12: Select The Spin Speed Or The Rinse Hold Option
AA” option. the tub. The relevant light illuminates. ZWF 1231 W ZWF 1431 W-ZWF 1431 S 10. Select the “Delay” ZWF 1631 W Before you start the programme, if you wish the start to be delayed, press the “Delay”... -
Page 13: Start The Programme
11. Start the programme If these requirements are met, when you pause the washing machine, the door can be opened. Press the “Start/Pause” button. The relevant light will Should it not be possible to open the door, and should it stop flashing and only the light relevant to the phase that be absolutely necessary to do so, switch the machine off is in progress will remain lit. -
Page 14: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the White items should not be washed with coloured first few times you use the appliance. items. Very small items (handkerchiefs, ribbons, socks etc) The average weights of the most common items are should be washed in a washing bag or a pillow case. -
Page 15: Which Detergent
And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended your own personal choice. -
Page 16: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 17: Washing Programmes
Washing programmes ZFW 1231 W - ZFW 1431 W - ZFW 1431 S - ZFW 1631 W Consumption* Type of laundry Programme/ Description of Load and symbols on Available options Energy Water Time temperature programme labels litres h/min. Main wash at Spin /Rinse Hold Cotton daily 5 kg... -
Page 18: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you Remove the drawer by pressing the catch downwards must DISCONNECT the appliance from the electricity and by pulling it out. supply. Flush it out under a tap, to remove any traces of accumulated powder. -
Page 19: Cleaning The Water Inlet Filter
• When no more water comes out, unscrew the pump It is therefore a good idea to clean it from time to time. cover and remove it. Always keep a rag nearby to dry Turn off the water tap. Unscrew the water inlet hose. up spillage of water when removing the cover. -
Page 20: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 21: Service And Spare Parts
For Customer Service in Ireland please contact us at the guarantee service calls. address below: Zanussi Electrolux Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland Tel: +353 (0)1 4090751 Email: service.eid@electrolux.ie... -
Page 22: Guarantee Conditions
We, Zanussi Electrolux, undertake that if, within 12 agreements. months of the date of the purchase, this ZANUSSI Products of Zanussi Electrolux manufacture which ELECTROLUX appliance or any part thereof is proved are NOT marketed by Zanussi Electrolux. -
Page 23: Installation Instructions
6 kg Synthetics 2,5 kg Delicate fabrics 2,5 kg Wool/Hand wash SPIN SPEED Maximum 1200 rpm ZWF 1231 W 1400 rpm ZWF 1431 W ZWF 1431 1600 rpm ZWF 1631 W CONSUMPTION DATA FOR WASHING Energy 1.02 kWh 6 KG NORMALLY SOILED COTTON... -
Page 24: Unpacking
Unpacking Fill all the holes with the plastic plugs supplied with the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws. -
Page 25: Water Inlet
Water inlet 1. Into a drainage standpipe. Connect the hose to a tap with a 3/4” thread. Firstly form a hook in the end of the drain hose using Do not use already employed hoses. the “U” piece” supplied. Always use the hose supplied with the appliance to connect to the water supply. -
Page 26: Water Drainage
If your drain hose looks like this (see below) you do not Levelling require the “U” piece”. Just push the hose firmly into Level the washing machine by raising or lowering the the standpipe. feet. The feet may be tight to adjust as they incorporate a self locking nut, but the machine MUST be level and stable (check diagonally). -
Page 27: Electrical Connection
