132985250

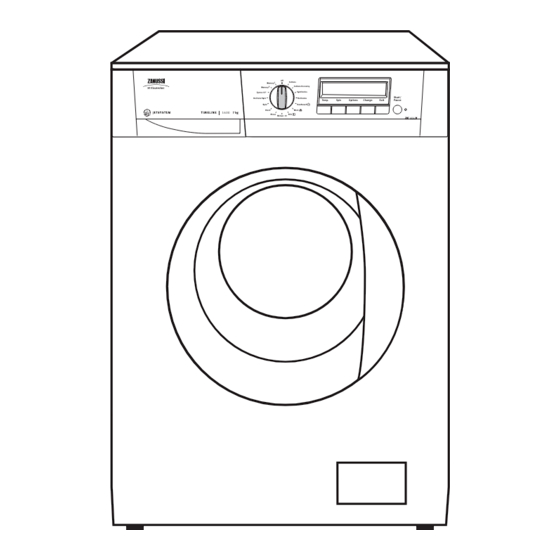

WASHING MACHINE
ZWF 1651W
visit our WEB SITE to view an install video
www.video.uk.electrolux.com
INSTRUCTION BOOKLET
Off
Cottons
Cottons Economy
Synthetics
Start/
Delicate Spin
Delicates
Temp.
Spin
Options
Change
Exit
Pause
Spin
Handwash
Drain
Wool
JETSYSTEM
TIMELINE
1600
7 kg
Rinse
Silk
Minipr. 30
ZWF 1651 W
Quick Installation Guide:
GB
Advertisement
Table of Contents
Related Manuals for Zanussi Electrolux ZWF 1651W
Summary of Contents for Zanussi Electrolux ZWF 1651W
- Page 1 WASHING MACHINE ZWF 1651W Cottons Cottons Economy Synthetics Start/ Delicate Spin Delicates Temp. Spin Options Change Exit Pause Spin Handwash Drain Wool JETSYSTEM TIMELINE 1600 7 kg Rinse Silk Minipr. 30 ZWF 1651 W Quick Installation Guide: visit our WEB SITE to view an install video www.video.uk.electrolux.com...
-
Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User Wash Care Symbols Washing Programmes 20-21 Important Safety Information Maintenance and Cleaning 22-23 Your New Washing Machine Descaling Description of the Appliance After each wash Maintenance Wash Detergent dispenser drawer External cleaning Child safety feature Cleaning the dispenser drawer The Control Panel 6-11 Cleaning the drawer recess... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine, which is fitted with the New Jet System, meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. ● The special Handwash and Silk programme with In the interest their new delicate wash system treats your delicate of the environment... -
Page 5: Description Of The Appliance
Description of the Appliance 01 Detergent dispenser drawer 02 Control panel 03 Door opening handle Cottons Cottons Economy Synthetics Delicate Spin Delicates Start/ Temp. Spin Options Change Exit Pause Spin Handwash Drain Wool JETSYSTEM T I M E L I N E 160 0 7 kg 04 Drain pump... -
Page 6: The Control Panel
The Control Panel Cottons Cottons Economy Synthetics Start/ Delicate Spin Delicates Temp. Spin Options Change Exit Pause Spin Handwash Drain Wool JETSYSTEM TI M EL I NE 1 6 0 0 7 kg Rinse Silk Minipr. 30 ZWF 1651 W 1 Detergent dispenser drawer 3 Display The Display is used for setting a large number of... - Page 7 By depressing Temperature Temp. button, the relevant On cotton and synthetic programmes the rinses will be message will appear on the second row of the display performed with more water. (instead of «cycle end at»). In the corner of the third To complete the cycle, choose one of the following row appears the indication of the selected temperature.
- Page 8 Exit button allows you to return to the previous DELAY START: this option makes it possible to selection. delay the start of the washing programme by 30 min - 60 min - 90 min, 2 hours and then by 1 hour till 20 hours.
- Page 9 cycle temperature and the fabric type. Example: Cotton , 60°C, 1400 rpm, with Time saving option. EASY IRON: selecting this button the laundry is 1. Select the cycle and programme settings. gently washed and spun to avoid any creasing. In this way ironing is easier.
- Page 10 SOUND LANGUAGE The sound setting permits you to modify the function. You can change the language setting if you would like You can choose between different levels: low, no sound the indicators in the display to appear in a different and normal.
- Page 11 7 START/PAUSE button CONTRAST The Contrast setting allows you to modify the optical characteristic of the display. Start/ Example: Pause 1. Enter the Menu option and select the Contrast setting. 2. Use the Change button to set up the desired contrast level.
-
Page 12: Programme Information
PROGRAMME INFORMATION Wool Xpress 60° Washing programme for machine washable wool This is a complete programme to be used for half load well as for hand washable woollens and delicate fabrics of slightly or normally soiled cotton items. This with the “hand washing” care symbol. programme performs the A-class washing efficiency in a short time. -
Page 13: Operating Sequence
Operating Sequence 3. Switch the machine on Before the first wash, we recommend that you run a cotton cycle at 90°C, without any laundry in the Turn the selector dial to the desired programme to machine, to remove any manufacturing residue from the switch the appliance on. -
Page 14: Select The Desired Programme/Fabric
6. Select the temperature 2.Press the Exit button to confirm the selection. Press the Temp. button if you wish to select a temperature value different from the one proposed by the washing machine. Einstellungen The message of the maximum available temperature Temp. -
Page 15: Select The Delay Time
9. Select the DELAY TIME Note: To drain the water before starting the new cycle you have to cancel the programme and select the Drain Before you start the programme, if you wish the starting programme. to be delayed, choose the DELAY option. The selected delay time value (up to 20 hours) will 12. -
Page 16: End Of Programme
14. End of programme At the end of the programme, the washing machine stops automatically, gives an audible signal (if option no sound has not been selected), and displays the relevant message. If you had selected the option, the Start/Pause button light is off and the “Cycle ended/ Door locked”... -
Page 17: Washing Hints
Washing Hints ● Do NOT overload the machine. Weigh the laundry the For wool, use gentle detergent only in small first few times you use the appliance. quantities. ● Bleach is very corrosive; it should be used with care The average weights of the most common items are and kept out of reach of children. -
Page 18: Which Detergent
And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended your own personal choice. -
Page 19: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 20: Washing Programmes
Washing Programmes Wash programme/ Max. Progr. time Type of laundry Description Possible options mins. Washing symbol load Main wash at White and coloured (cold) - 90°C Cottons cotton: e.g. sheets, 6 kg 3 rinses tablecloths, household linen Long spin White and coloured cotton Main wash at Economy: e.g. - Page 21 Washing Programmes Special programmes Progr. Max. Programme dial time Possible options Wash programme Description load position mins. Separate rinse cycle for 3 rinses with liquid Rinse additive, if required. hand washed items of 6 kg cotton fabric Long spin at max. speed For emptying out the water of the last rinses Drain...
-
Page 22: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the P1191 P1192 machine. -
Page 23: Cleaning The Water Inlet Filter
cover and remove it. Always keep a rag nearby to dry Turn off the water tap. Unscrew the water inlet hose. up spillage of water when removing the cover. Clean the filter using a hard bristle brush. Tighten up the inlet hose. P1115 P1090 Remove any objects from the pump impeller by... -
Page 24: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. During machine operation it is possible that one of the following messages appear on the display and at the same time an acoustic signal will sound: •... -
Page 25: Service And Spare Parts
For Customer Service in Ireland please contact us at the guarantee service calls. address below: Zanussi Electrolux Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland Mod... -
Page 26: Guarantee Conditions
Standard guarantee conditions ● Appliances found to be in use within a commercial environment, plus those which are subject to rental We, Zanussi Electrolux, undertake that if, within 12 agreements. months of the date of the purchase, this ZANUSSI ●... -
Page 27: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 28: Unpacking
Unpacking Important! You can find more detailed instructions regarding the All transit bolts and packing must be removed bottom cover assemblig in its relative bag. before using the appliance. Set the machine upright and unscrew the remaining rear screw. Slide out the relevant pin. You are advised to keep all the packaging for re-use in Fill all the holes with the plastic plugs supplied with the case the machine is to be transported again. -
Page 29: Water Inlet
Installation on a Suspended Floor Water drainage Suspended wooden floors are particularly susceptible to This appliance is designed to be permanently plumbed into your home's drainage system using one of the vibration. To help prevent vibration we recommend you following methods. place a waterproof wood panel, at least 15 mm thick under the appliance, secured to at least 2 floor beams 1. -
Page 30: Levelling
Levelling If your drain hose looks like this (see below) you do not require the “U” piece”. Just push the hose firmly into Level the washing machine by raising or lowering the the standpipe. feet. The feet may be tight to adjust as they incorporate a self locking nut, but the machine MUST be level and stable. -
Page 31: Electrical Connection
If you require any further advice please contact your Should the plug need to be replaced for any reason, local water authority. proceed as described below. The wires in the mains lead are coloured in accordance with the following code: Green and Yellow - Earth Blue... - Page 32 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
