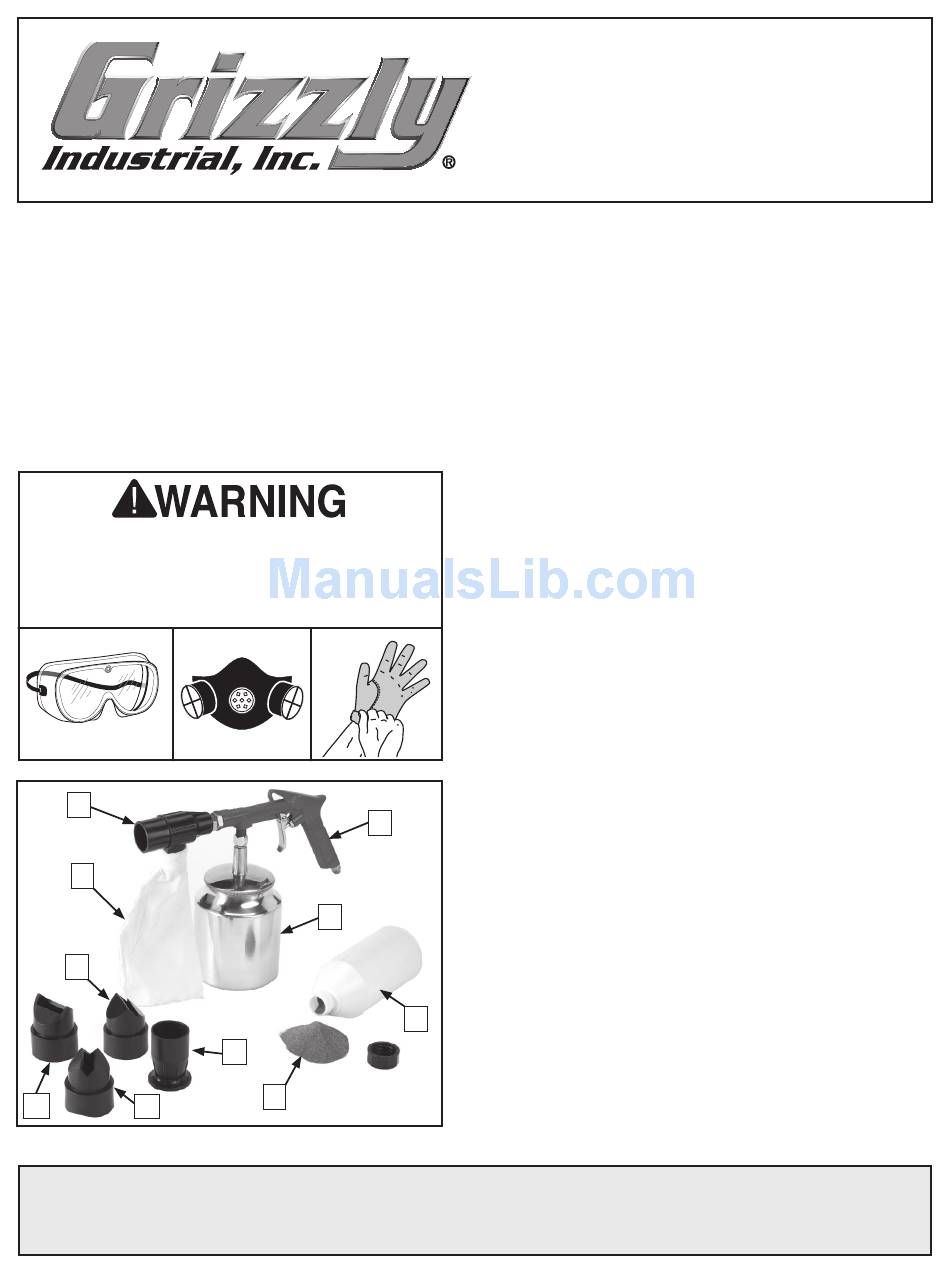

Grizzly H8118 Instruction Sheet

Introduction
Your Grizzly sandblasting gun kit features four
specialized sandblasting pattern nozzles, a col-
lection bag, and a polished aluminum media can.
Using the included pattern nozzles, your sand-
blasting gun will remove rust, scale, varnish, and
paint from the flat surface, inside and outside cor-
ners, and spot locations of your workpiece.
Eye, lung, or hand injury could result from
sandblasting if you don't wear proper pro-
tective gear. Always wear safety goggles, a
respirator, and gloves when sandblasting.
A
C
F
H I
Figure 1.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
B
D
G
J
Model H8118.
COPYRIGHT © DECEMBER, 2006 BY GRIZZLY INDUSTRIAL, INC.
#CR8845 PRINTED IN CHINA
SANDBLASTING
INSTRUCTION SHEET
Parts & Inventory:
A. Blast Barrel and Air Jet (P8118001) ............ 1
B. Blast Gun (P8118002) .................................. 1
C. Collection Bag (P8118003) .......................... 1
D. Media Can (P8118004) ................................ 1
E. Media Storage Bottle (P8118005) ................ 1
F.
Flat Pattern Nozzle (P8118006) ................... 1
G. Spot Pattern Nozzle (P8118007) ................. 1
H. Inside Corner Pattern Nozzle (P8118008) ... 1
I.
Outside Corner Pattern Nozzle (P8118009) 1
J.
Blast Media (See Below) .............................. 1
Air Supply Requirements
Sandblasting operations are extremely demand-
ing on small compressors and can cause a com-
pressor overload or overheated condition. Refer to
your compressor Owner's Manual and make sure
that it can handle the load of sandblasting.
We recommend using a compressor that is can
sustain at least 11 CFM at 100 PSI.
To maintain a consistent blast pattern and finish,
we recommend installing an air regulator with a
gauge in the blast gun air supply.
Keep your compressor completely isolated from
your sandblasting environment, or keep the work
area downwind from the compressor. Airborne
abrasive dust will destroy compressor rings, pis-
tons, valves, and bearings.
Make sure to increase the maintenance interval
of your compressor if using it for sandblasting
E
operations.
If you need help with your sandblasting kit, call
our Tech Support at: (570) 546-9663.
