Model W542718 (R) Pro Wall Hood
Model W542718
Model W542718R
– Rail Option
Wolf Pro 27" (686) deep wall hoods
are available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall hoods are sold as a shell only;
internal, in-line and remote blower
options are available.
Dimensions in parentheses are in
millimeters unless otherwise specified.
9/06
Hand finished
craftsmanship
Backdraft damper
Stainless steel
baffle filters
Welded seams
and hemmed edges
Halogen lighting

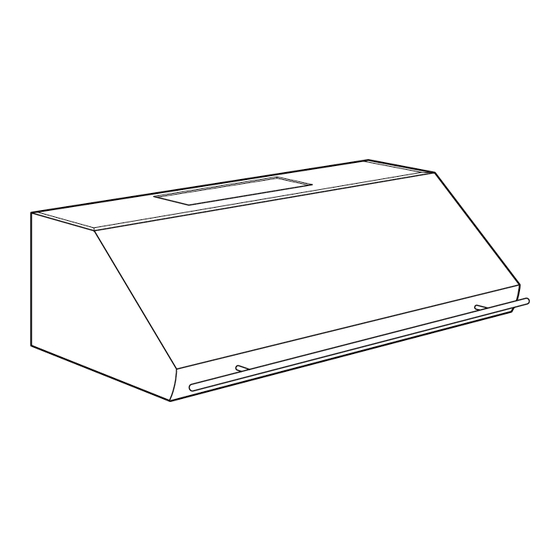

Model W542718R shown with standard classic stainless steel
decorative rail, platinum or brass rail available as a sales accessory
W
olf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
Pro 27" (686) deep wall hoods are available in the
classic stainless steel finish. You also have the option
of a decorative rail. While a classic stainless steel rail
is standard on (R) models, platinum or brass rails are
available to match the bezels of our dual fuel ranges
and sealed burner rangetops.
The deepest of the Pro wall hoods, this 27" (686)
model provides an additional exclusive feature – heat
lamps.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances. For optimal perform-
ance, a Pro 27" (686) deep wall hood is recommended
for use with ranges and rangetops that contain a
charbroiler or griddle.
Classic stainless
Decorative rail
steel finish
(optional)
Recessed easy
access controls
Infinite speed
blower control
1
