Hardware Installation SY-6VBA133-B

2-3.3 Motherboard Connector

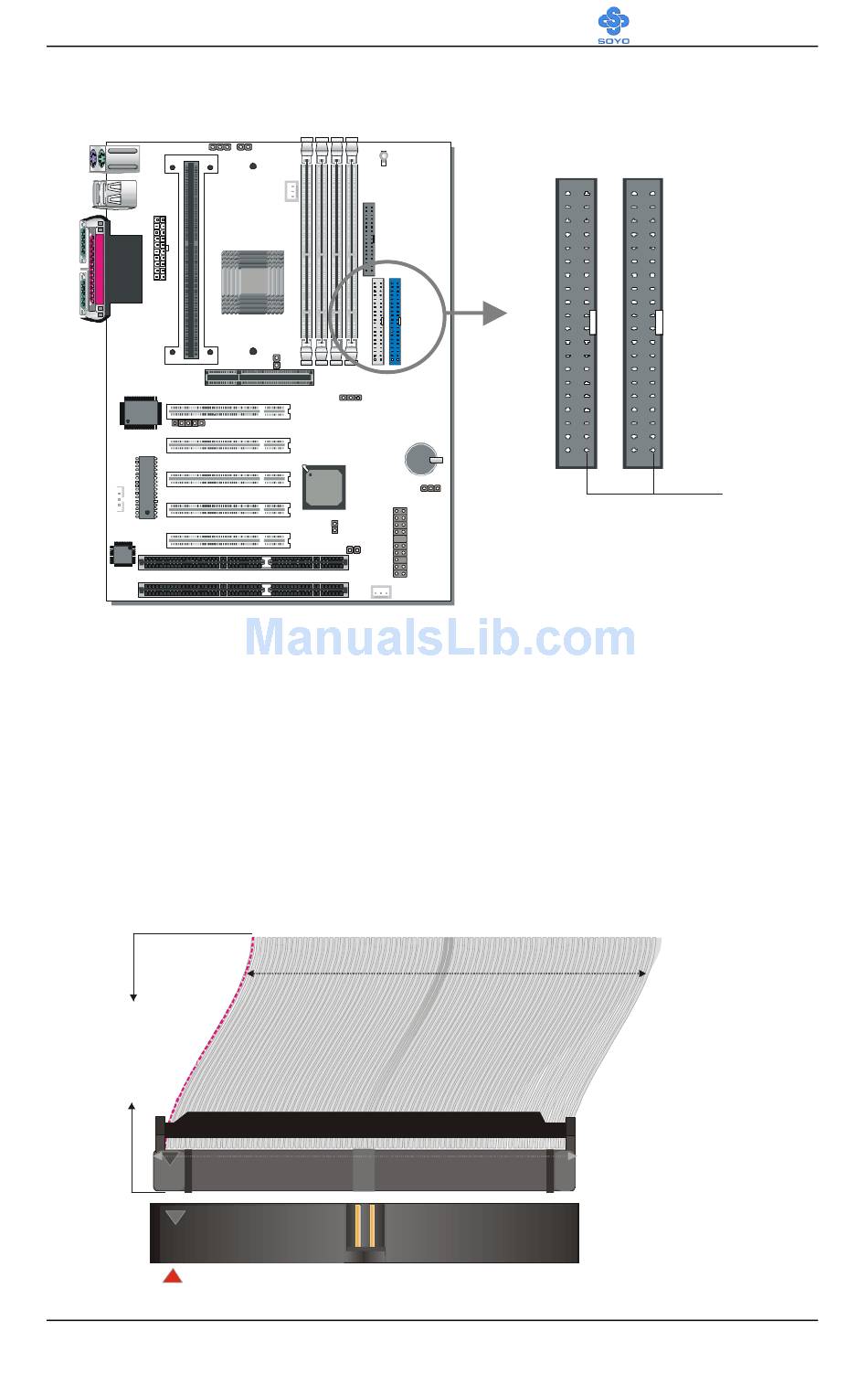

2-3.3.1 IDE Device Installation (HDD, CD-ROM)
®
®
®
Pin -1
IDE 2 IDE 1
Secondary
Primary
IDE
IDE
This Motherboard offers two primary and secondary IDE device
connectors (IDE1, IDE2). It can support up to four high-speed Ultra DMA
33HDD or CD-ROM.
Connect one side of the ATA66 flat cable to the IDE device (HDD or CD-
ROM) and plug the other end to the primary (IDE1) or secondary (IDE2)
directionally keyed IDE connector on the Motherboard. ATA66 cable can
be used backward compatible with ATA33 HDD.
This Motherboard can support up to four HDDs.
80-Conductor
ATA 66
Flat Cable
40-pin
1
39
39
1
26
